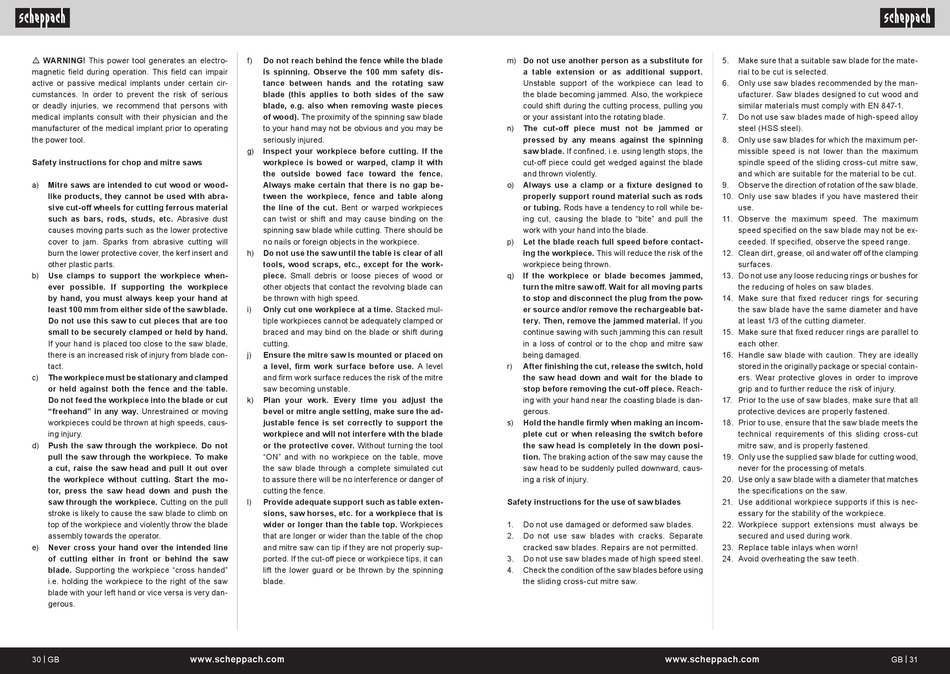

Scheppach HM140L Originalbetriebsanleitung Seite 16

m WARNING! This power tool generates an electro-
magnetic field during operation. This field can impair
active or passive medical implants under certain cir-
cumstances. In order to prevent the risk of serious
or deadly injuries, we recommend that persons with
medical implants consult with their physician and the
manufacturer of the medical implant prior to operating
the power tool.
Safety instructions for chop and mitre saws
a) Mitre saws are intended to cut wood or wood-
like products, they cannot be used with abra-
sive cut-off wheels for cutting ferrous material
such as bars, rods, studs, etc. Abrasive dust
causes moving parts such as the lower protective
cover to jam. Sparks from abrasive cutting will
burn the lower protective cover, the kerf insert and
other plastic parts.
b) Use clamps to support the workpiece when-
ever possible. If supporting the workpiece
by hand, you must always keep your hand at
least 100 mm from either side of the saw blade.
Do not use this saw to cut pieces that are too
small to be securely clamped or held by hand.
If your hand is placed too close to the saw blade,
there is an increased risk of injury from blade con-
tact.
c) The workpiece must be stationary and clamped
or held against both the fence and the table.
Do not feed the workpiece into the blade or cut
"freehand" in any way. Unrestrained or moving
workpieces could be thrown at high speeds, caus-
ing injury.
Push the saw through the workpiece. Do not
d)
pull the saw through the workpiece. To make
a cut, raise the saw head and pull it out over
the workpiece without cutting. Start the mo-
tor, press the saw head down and push the
saw through the workpiece. Cutting on the pull
stroke is likely to cause the saw blade to climb on
top of the workpiece and violently throw the blade
assembly towards the operator.
Never cross your hand over the intended line
e)
of cutting either in front or behind the saw
blade. Supporting the workpiece "cross handed"
i.e. holding the workpiece to the right of the saw
blade with your left hand or vice versa is very dan-
gerous.
30 | GB www.scheppach.com
f) Do not reach behind the fence while the blade
is spinning. Observe the 100 mm safety dis-
tance between hands and the rotating saw
blade (this applies to both sides of the saw
blade, e.g. also when removing waste pieces
of wood). The proximity of the spinning saw blade
to your hand may not be obvious and you may be
seriously injured.
g) Inspect your workpiece before cutting. If the
workpiece is bowed or warped, clamp it with
the outside bowed face toward the fence.
Always make certain that there is no gap be-
tween the workpiece, fence and table along
the line of the cut. Bent or warped workpieces
can twist or shift and may cause binding on the
spinning saw blade while cutting. There should be
no nails or foreign objects in the workpiece.
h) Do not use the saw until the table is clear of all
tools, wood scraps, etc., except for the work-
piece. Small debris or loose pieces of wood or
other objects that contact the revolving blade can
be thrown with high speed.
i) Only cut one workpiece at a time. Stacked mul-
tiple workpieces cannot be adequately clamped or
braced and may bind on the blade or shift during
cutting.
j) Ensure the mitre saw is mounted or placed on
a level, firm work surface before use. A level
and firm work surface reduces the risk of the mitre
saw becoming unstable.
k) Plan your work. Every time you adjust the
bevel or mitre angle setting, make sure the ad-
justable fence is set correctly to support the
workpiece and will not interfere with the blade
or the protective cover. Without turning the tool
"ON" and with no workpiece on the table, move
the saw blade through a complete simulated cut
to assure there will be no interference or danger of
cutting the fence.
l) Provide adequate support such as table exten-
sions, saw horses, etc. for a workpiece that is
wider or longer than the table top. Workpieces
that are longer or wider than the table of the chop
and mitre saw can tip if they are not properly sup-
ported. If the cut-off piece or workpiece tips, it can
lift the lower guard or be thrown by the spinning
blade.
m) Do not use another person as a substitute for
a table extension or as additional support.
Unstable support of the workpiece can lead to
the blade becoming jammed. Also, the workpiece
could shift during the cutting process, pulling you
or your assistant into the rotating blade.
The cut-off piece must not be jammed or
n)
pressed by any means against the spinning
saw blade. If confined, i.e. using length stops, the
cut-off piece could get wedged against the blade
and thrown violently.
o) Always use a clamp or a fixture designed to
properly support round material such as rods
or tubing. Rods have a tendency to roll while be-
ing cut, causing the blade to "bite" and pull the
work with your hand into the blade.
p) Let the blade reach full speed before contact-
ing the workpiece. This will reduce the risk of the
workpiece being thrown.
q) If the workpiece or blade becomes jammed,
turn the mitre saw off. Wait for all moving parts
to stop and disconnect the plug from the pow-
er source and/or remove the rechargeable bat-
tery. Then, remove the jammed material. If you
continue sawing with such jamming this can result
in a loss of control or to the chop and mitre saw
being damaged.
r) After finishing the cut, release the switch, hold
the saw head down and wait for the blade to
stop before removing the cut-off piece. Reach-
ing with your hand near the coasting blade is dan-
gerous.
s) Hold the handle firmly when making an incom-
plete cut or when releasing the switch before
the saw head is completely in the down posi-
tion. The braking action of the saw may cause the
saw head to be suddenly pulled downward, caus-
ing a risk of injury.
Safety instructions for the use of saw blades
1. Do not use damaged or deformed saw blades.
2. Do not use saw blades with cracks. Separate
cracked saw blades. Repairs are not permitted.
3. Do not use saw blades made of high speed steel.
4. Check the condition of the saw blades before using
the sliding cross-cut mitre saw.
www.scheppach.com
5. Make sure that a suitable saw blade for the mate-
rial to be cut is selected.
6. Only use saw blades recommended by the man-
ufacturer. Saw blades designed to cut wood and
similar materials must comply with EN 847-1.
7. Do not use saw blades made of high-speed alloy
steel (HSS steel).
8. Only use saw blades for which the maximum per-
missible speed is not lower than the maximum
spindle speed of the sliding cross-cut mitre saw,
and which are suitable for the material to be cut.
9. Observe the direction of rotation of the saw blade.
10. Only use saw blades if you have mastered their
use.
11. Observe the maximum speed. The maximum
speed specified on the saw blade may not be ex-
ceeded. If specified, observe the speed range.
12. Clean dirt, grease, oil and water off of the clamping
surfaces.
13. Do not use any loose reducing rings or bushes for
the reducing of holes on saw blades.
14. Make sure that fixed reducer rings for securing
the saw blade have the same diameter and have
at least 1/3 of the cutting diameter.
15. Make sure that fixed reducer rings are parallel to
each other.
16. Handle saw blade with caution. They are ideally
stored in the originally package or special contain-
ers. Wear protective gloves in order to improve
grip and to further reduce the risk of injury.
17. Prior to the use of saw blades, make sure that all
protective devices are properly fastened.
18. Prior to use, ensure that the saw blade meets the
technical requirements of this sliding cross-cut
mitre saw, and is properly fastened.
19. Only use the supplied saw blade for cutting wood,
never for the processing of metals.
20. Use only a saw blade with a diameter that matches
the specifications on the saw.
21. Use additional workpiece supports if this is nec-
essary for the stability of the workpiece.
22. Workpiece support extensions must always be
secured and used during work.
23. Replace table inlays when worn!
24. Avoid overheating the saw teeth.
