5. OPERATING INSTRUCTIONS
5.1. CABLING TEST
The wire mapping of RJ45 LAN cables is tested in accordance with
its defined cabling layout. To test a cable perform the below steps:
1.
Switch on the instrument pushing ON/OFF key
2. Select the type of cable UTP or STP under test (see § 4.3).
3. Connect the cable under test to the meter and to the remote
unit by using, if necessary, the supplied patch cables (see Fig. 3)

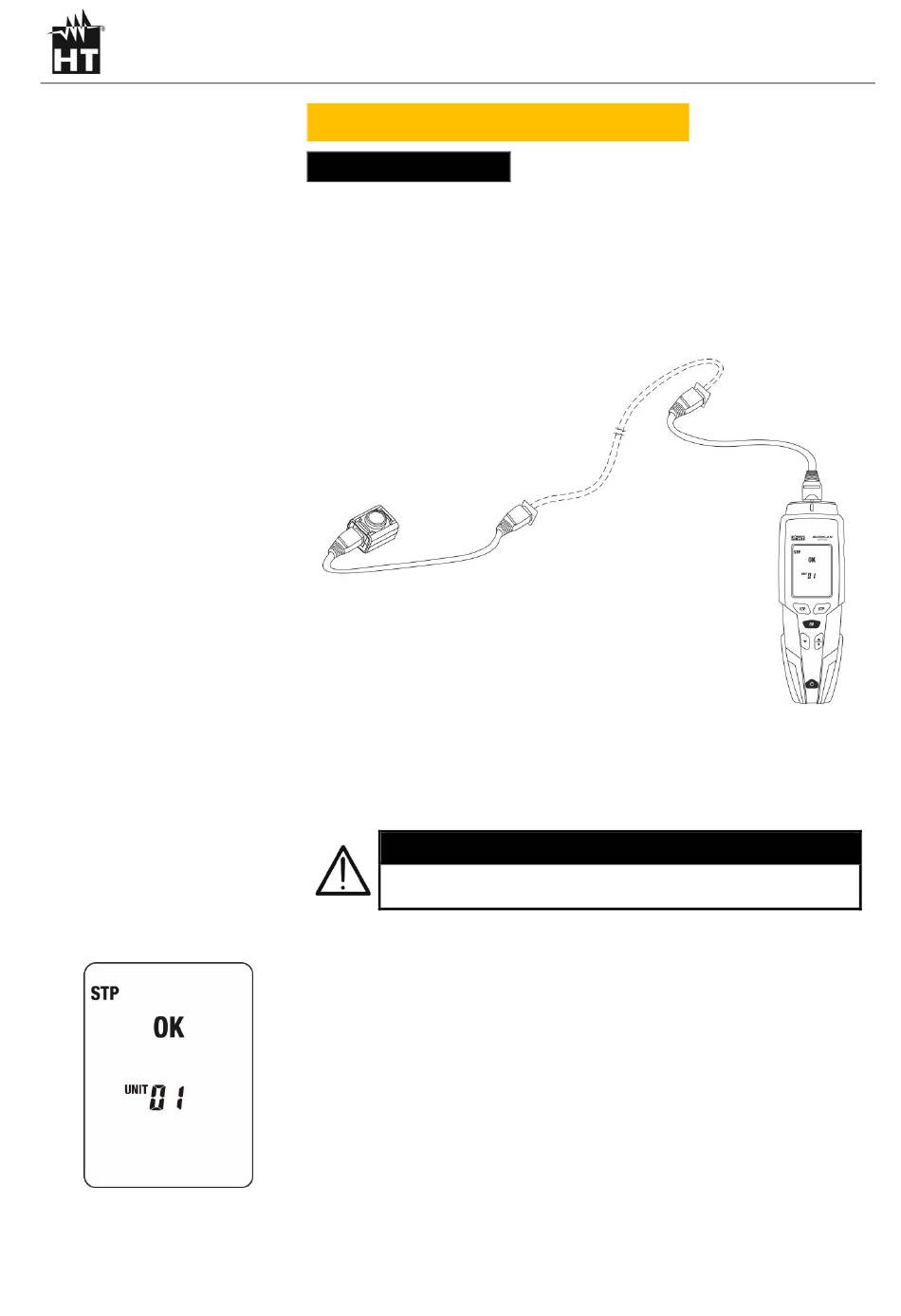

Fig. 3: Instrument connection
4. Press GO key. The message "MEASURING..." is displayed and the
instrument performs all tests related to the selected type of
cable.
The remote unit must be necessarily connected
otherwise no measurement is performed
5. If cabling is correct, a screen like this is displayed (OK). The
identification number refers to the remote identifier connected
to the other end of the cable under test
24
QUICKLAN6055
CAUTION
