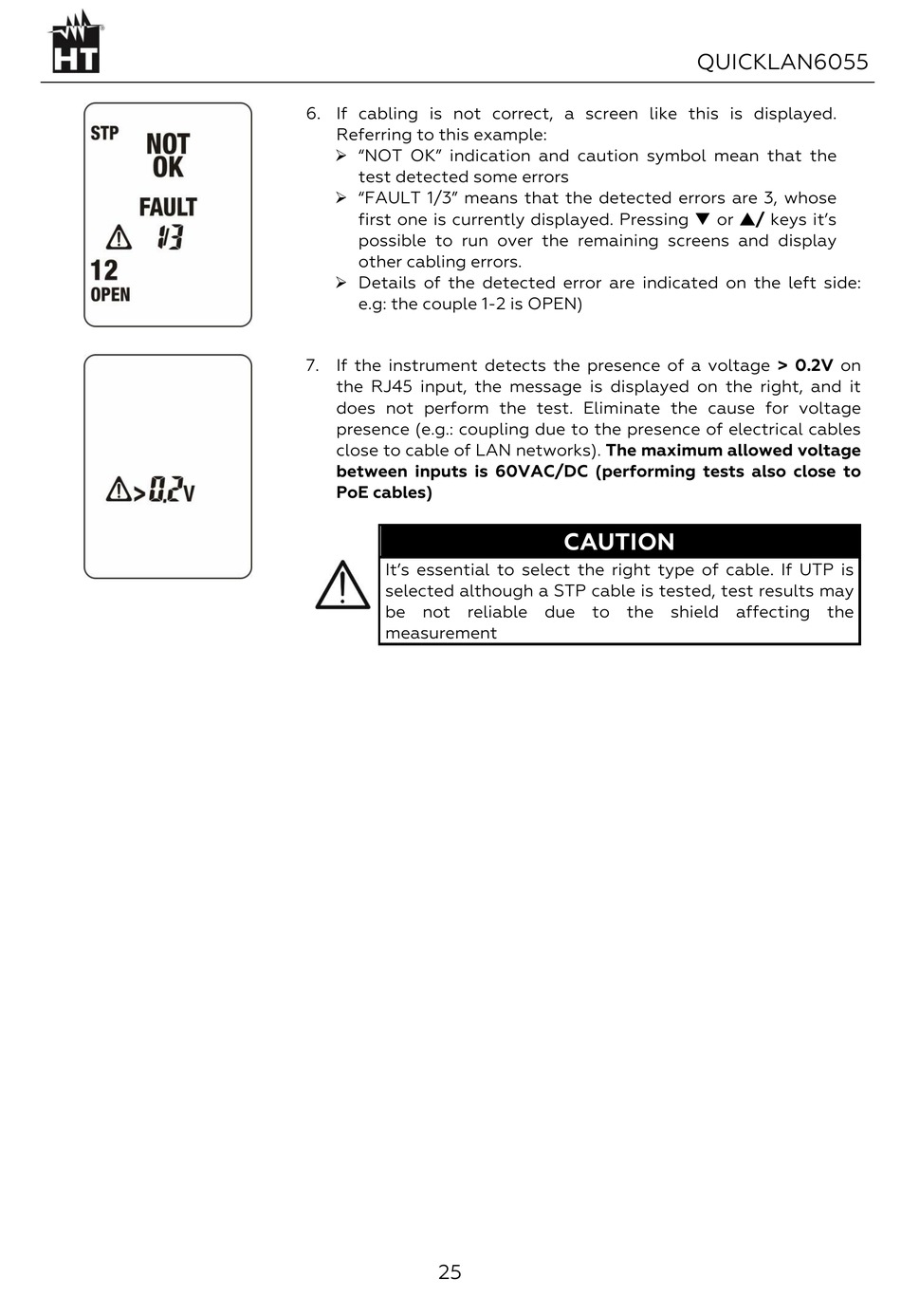

6. If cabling is not correct, a screen like this is displayed.
Referring to this example:
➢ "NOT OK" indication and caution symbol mean that the
test detected some errors
➢ "FAULT 1/3" means that the detected errors are 3, whose
first one is currently displayed. Pressing or / keys it's
possible to run over the remaining screens and display
other cabling errors.
➢ Details of the detected error are indicated on the left side:
e.g: the couple 1-2 is OPEN)
7. If the instrument detects the presence of a voltage > 0.2V on
the RJ45 input, the message is displayed on the right, and it
does not perform the test. Eliminate the cause for voltage
presence (e.g.: coupling due to the presence of electrical cables
close to cable of LAN networks). The maximum allowed voltage
between inputs is 60VAC/DC (performing tests also close to
PoE cables)
It's essential to select the right type of cable. If UTP is
selected although a STP cable is tested, test results may
be not reliable due to the shield affecting the
measurement
25
QUICKLAN6055
CAUTION
