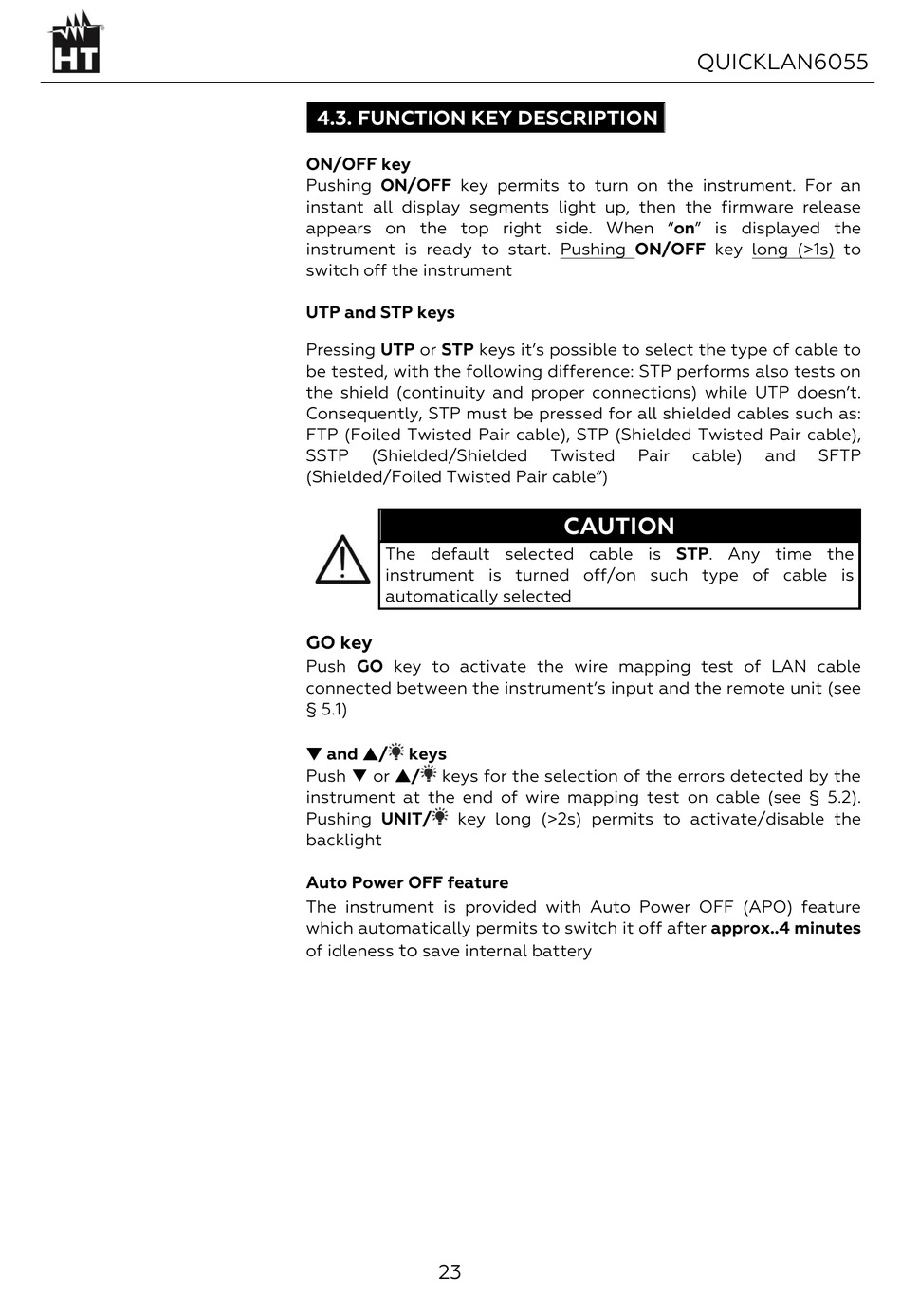

4.3. FUNCTION KEY DESCRIPTION
ON/OFF key
Pushing ON/OFF key permits to turn on the instrument. For an
instant all display segments light up, then the firmware release
appears on the top right side. When "on" is displayed the
instrument is ready to start. Pushing ON/OFF key long (>1s) to
switch off the instrument
UTP and STP keys
Pressing UTP or STP keys it's possible to select the type of cable to
be tested, with the following difference: STP performs also tests on
the shield (continuity and proper connections) while UTP doesn't.
Consequently, STP must be pressed for all shielded cables such as:
FTP (Foiled Twisted Pair cable), STP (Shielded Twisted Pair cable),
SSTP
(Shielded/Shielded
(Shielded/Foiled Twisted Pair cable")
The default selected cable is STP. Any time the
instrument is turned off/on such type of cable is
automatically selected
GO key
Push GO key to activate the wire mapping test of LAN cable
connected between the instrument's input and the remote unit (see
§ 5.1)
and /
keys
Push or /
keys for the selection of the errors detected by the
instrument at the end of wire mapping test on cable (see § 5.2).
Pushing UNIT/
key long (>2s) permits to activate/disable the
backlight
Auto Power OFF feature
The instrument is provided with Auto Power OFF (APO) feature
which automatically permits to switch it off after approx..4 minutes
to
of idleness
save internal battery
23
QUICKLAN6055
Twisted
Pair
cable)
CAUTION
and
SFTP
