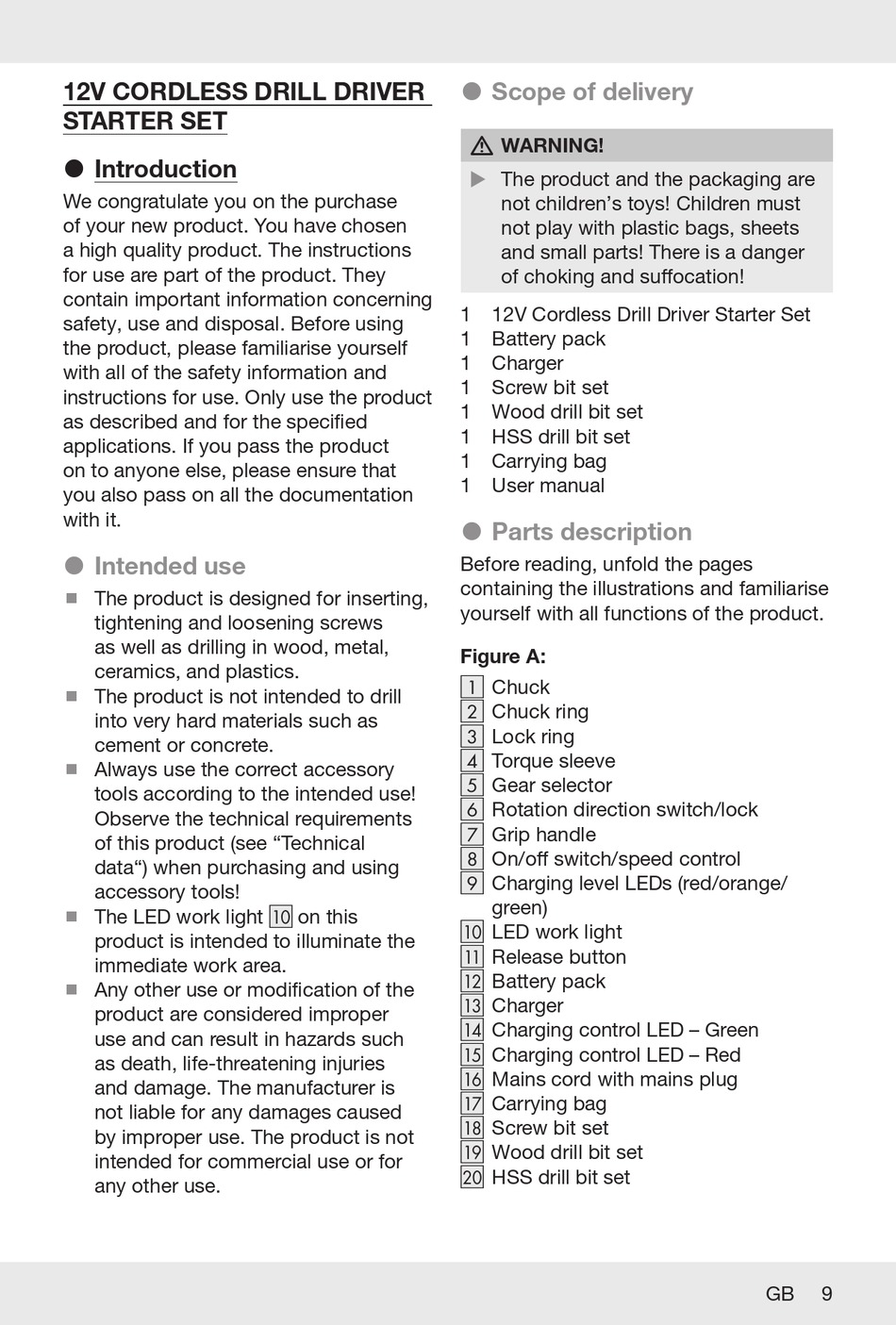

12V CORDLESS DRILL DRIVER
STARTER SET
˜ Introduction
We congratulate you on the purchase
of your new product. You have chosen
a high quality product. The instructions
for use are part of the product. They
contain important information concerning
safety, use and disposal. Before using
the product, please familiarise yourself
with all of the safety information and
instructions for use. Only use the product
as described and for the speci ed
applications. If you pass the product
on to anyone else, please ensure that
you also pass on all the documentation
with it.
˜ Intended use
The product is designed for inserting,
tightening and loosening screws
as well as drilling in wood, metal,
ceramics, and plastics.
The product is not intended to drill
into very hard materials such as
cement or concrete.
Always use the correct accessory
tools according to the intended use!
Observe the technical requirements
of this product (see "Technical
data") when purchasing and using
accessory tools!
The LED work light
product is intended to illuminate the
immediate work area.
Any other use or modi cation of the
product are considered improper
use and can result in hazards such
as death, life-threatening injuries
and damage. The manufacturer is
not liable for any damages caused
by improper use. The product is not
intended for commercial use or for
any other use.
on this
[ ]
˜ Scope of delivery
WARNING!
m
The product and the packaging are
u
not children's toys! Children must
not play with plastic bags, sheets
and small parts! There is a danger
of choking and suffocation
1 12V Cordless Drill Driver Starter Set
1 Battery pack
1 Charger
1 Screw bit set
1 Wood drill bit set
1 HSS drill bit set
1 Carrying bag
1 User manual
˜ Parts description
Before reading, unfold the pages
containing the illustrations and familiarise
yourself with all functions of the product.
Figure A:
Chuck
1 ] [
Chuck ring
[ 2 ]
Lock ring
3 ] [
Torque sleeve
[ 4 ]
Gear selector
[ 5 ]
Rotation direction switch/lock
[ 6 ]
Grip handle
[ 7 ]
n/off s itch/speed control
[ 8 ]
Charging level LEDs (red/orange/
9 ] [
green)
LED work light
[ ]
Release button
[ ]
Battery pack
[ ]
Charger
[ ]
Charging control LED – Green
[ ]
Charging control LED – Red
[ ]
Mains cord with mains plug
[ ]
Carrying bag
[ ]
Screw bit set
[ ]
Wood drill bit set
[ ]
HSS drill bit set
[ ]
GB 9
