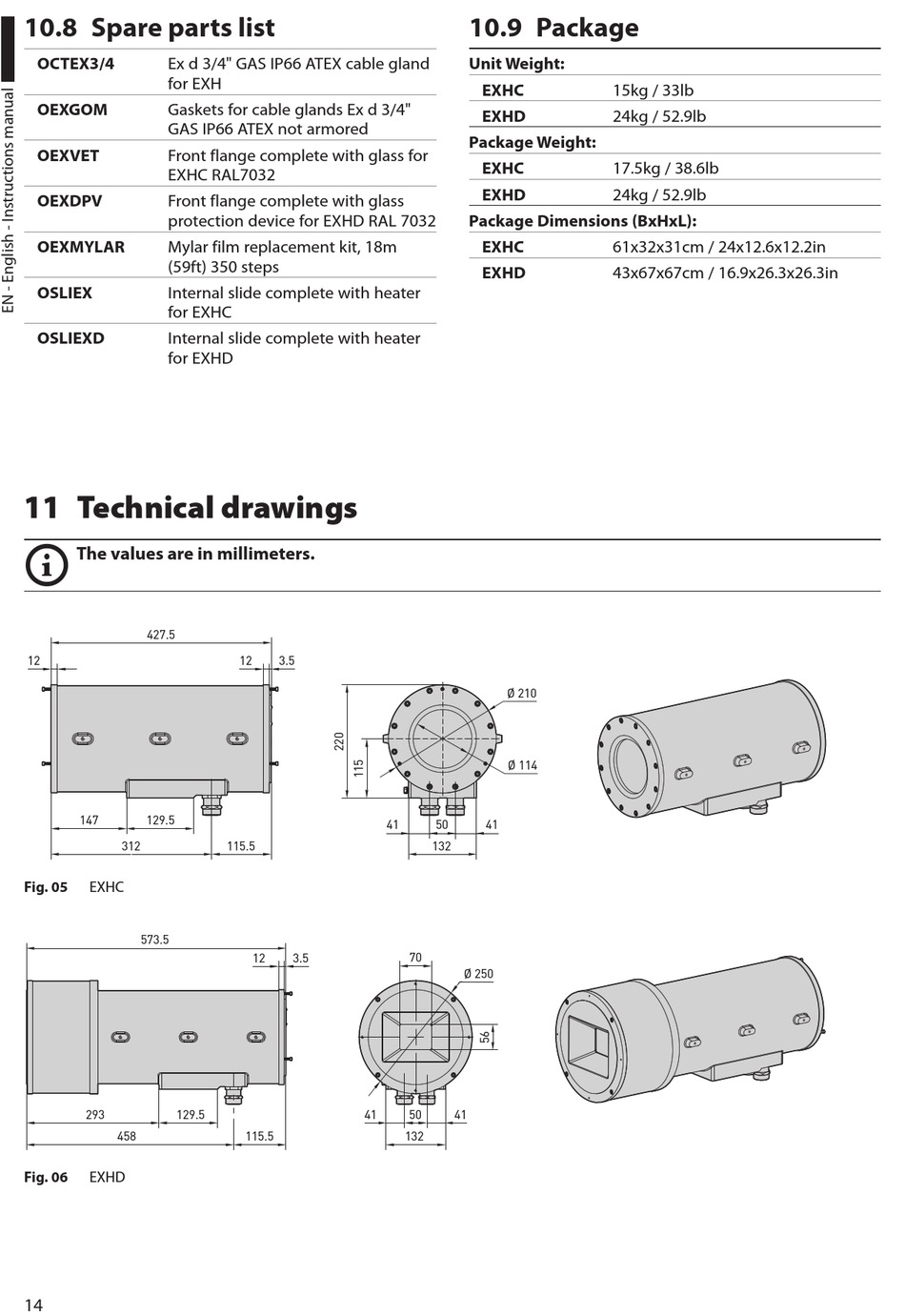

10.8 Spare parts list
OCTEX3/4 Ex d 3/4" GAS IP66 ATEX cable gland
for EXH
OEXGOM Gaskets for cable glands Ex d 3/4"
GAS IP66 ATEX not armored
OEXVET
Front flange complete with glass for
EXHC RAL7032
OEXDPV
Front flange complete with glass
protection device for EXHD RAL 7032
OEXMYLAR Mylar film replacement kit, 18m
(59ft) 350 steps
OSLIEX Internal slide complete with heater
for EXHC
OSLIEXD Internal slide complete with heater
for EXHD
11 Technical drawings
The values are in millimeters.
j
427.5
12
147 129.5
312
Fig. 05 EXHC
573.5
293 129.5
458
Fig. 06 EXHD
14
12 3.5
41
115.5
12 3.5
41
115.5
10.9 Package
Unit Weight:
EXHC
EXHD
Package Weight:
EXHC
EXHD
Package Dimensions (BxHxL):
EXHC
EXHD
Ø 210
Ø 114
50 41
132
70
Ø 250
50 41
132
15kg / 33lb
24kg / 52.9lb
17.5kg / 38.6lb
24kg / 52.9lb
61x32x31cm / 24x12.6x12.2in
43x67x67cm / 16.9x26.3x26.3in
