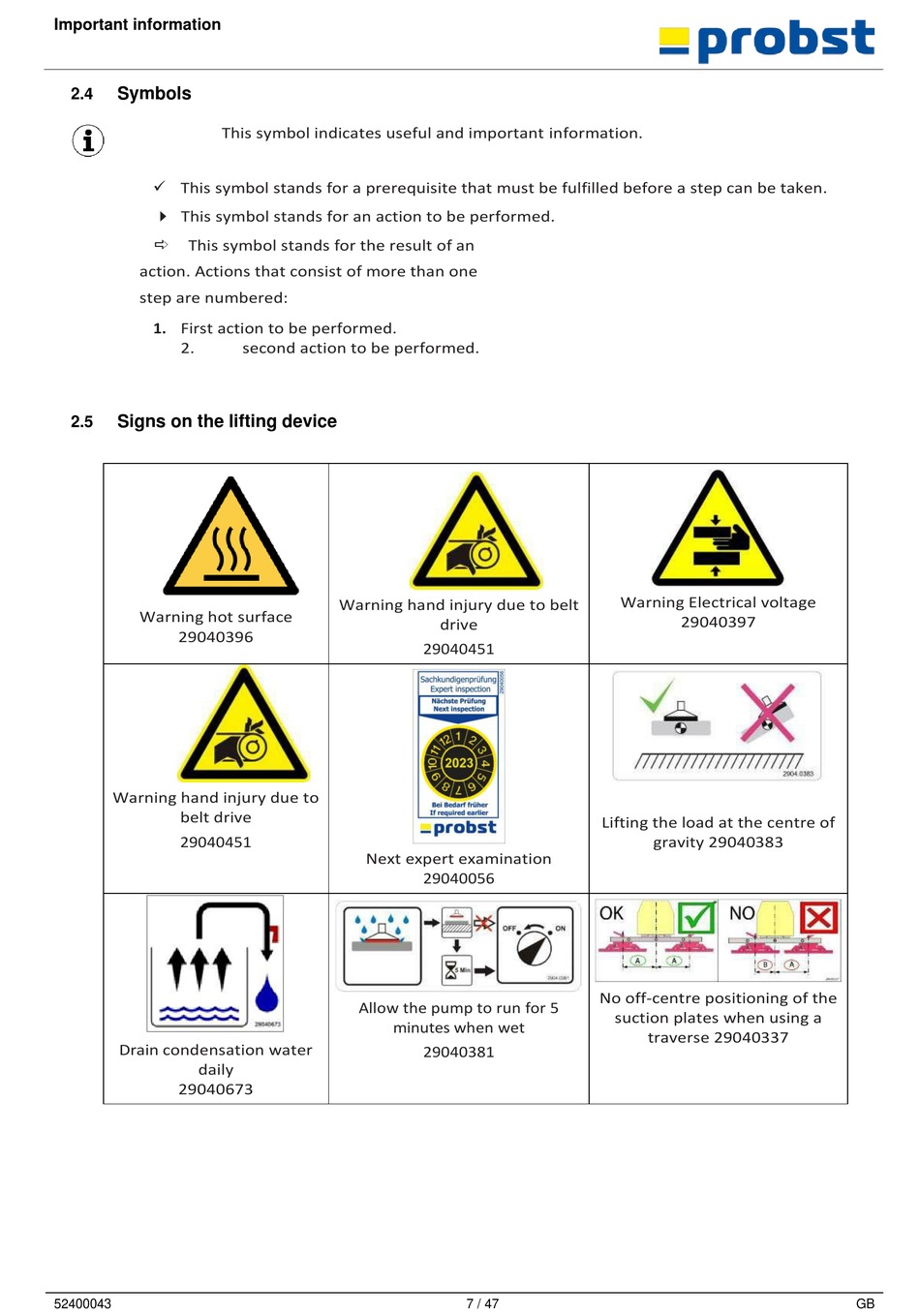

Important information
Symbols
2.4
This symbol indicates useful and important information.
✓ This symbol stands for a prerequisite that must be fulfilled before a step can be taken.
This symbol stands for an action to be performed.

This symbol stands for the result of an
action. Actions that consist of more than one
step are numbered:
1. First action to be performed.
2.
Signs on the lifting device
2.5
Warning hot surface
29040396
Warning hand injury due to
belt drive
29040451
Drain condensation water
daily
29040673
52400043
second action to be performed.
Warning hand injury due to belt
Next expert examination
Allow the pump to run for 5
minutes when wet
drive
29040451
29040056
29040381
7 / 47
Warning Electrical voltage
29040397
Lifting the load at the centre of
gravity 29040383
No off-centre positioning of the
suction plates when using a
traverse 29040337
GB
