Installation, use and maintenance
WARNING
8 ELECTRICAL DATA
PUMP MODEL
230V - 50 Hz
(*) Refers to functioning in by-pass mode.
POWER CORD INPUT 1/2" NPT
POWER CORD
CABLE OF
EARTHING
24 /156
Y
A
B
0

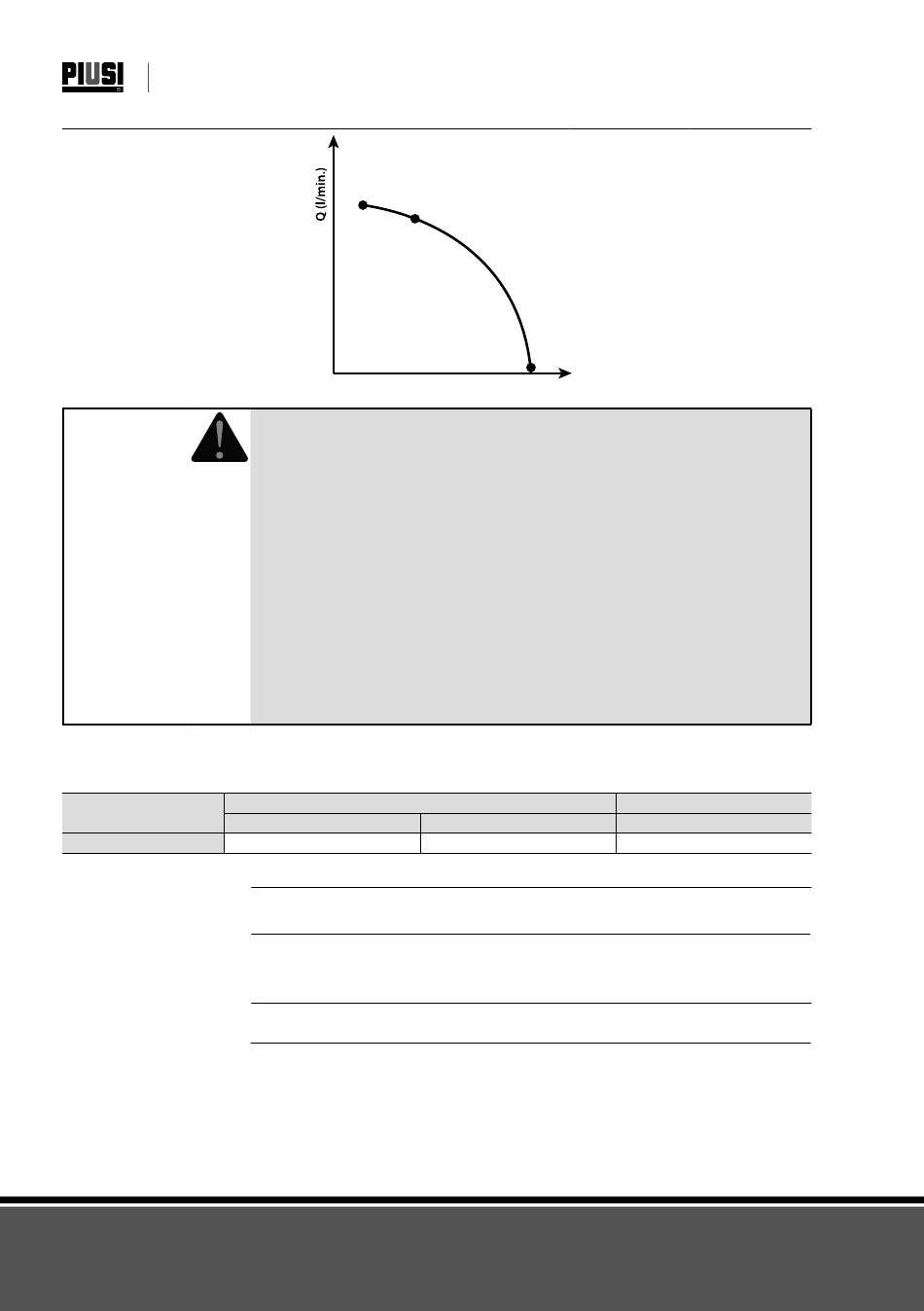

The curve refers to the following operating conditions:
Fluid: PETROL,
Temperature: 20° C
Suction conditions: The pipe and the pump position relative to the fluid
level is such that a low pressure of 0.3 bar is generated at the nominal
flow rate.
Under different suction conditions higher low pressure values can be created that re-
duce the flow rate compared to the same back pressure values. To obtain the best per-
formance, it is very important to reduce loss of suction pressure as much as possible by
following these instructions:
• shorten the suction pipe as much as possible
• avoid useless elbows or throttling in the pipes
• keep the suction filter clean
• use a pipe with a diameter equal to, or greater than, indicated (see In-
stallation).
POWER SUPPLY
Voltage (V)
230
USE CABLE GLANDS WITH PROTECTION GRADE Ex-d
Minimum section recommended for cables up to 6 m:
1.5 MM^2 or 16AWG.
Recommended sheath: H07RN-F T90°; SJT T90°
Section greater than or equal to the power cable
C
P (bar) X
Frequency (Hz)
50/60
CURRENT
Max (*) (A)
1,2
M0218E
