4.2

Setting the baud rate and parity

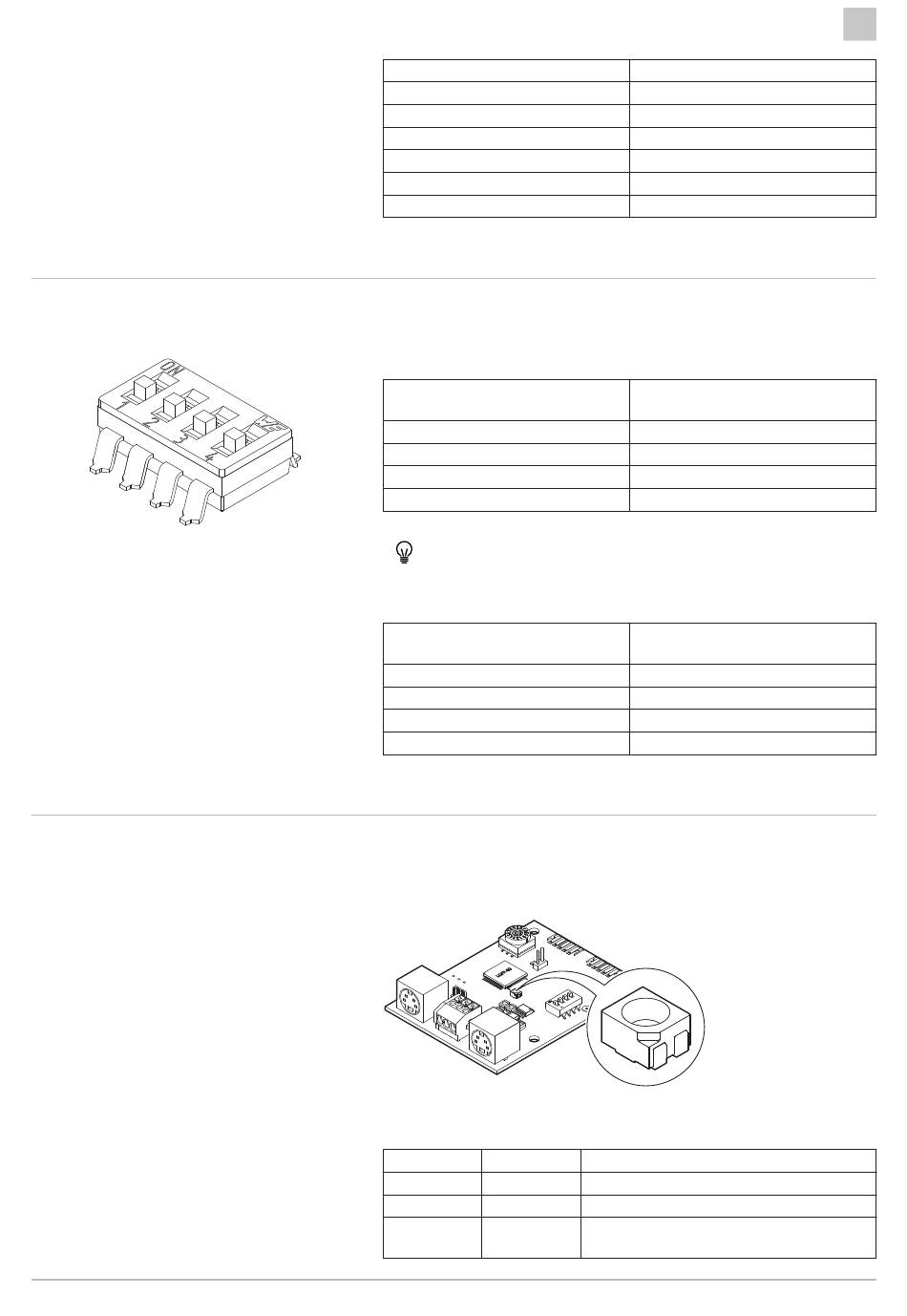

Fig.4 Dipswitch
4.3

Status LED indications

7854678 - v.01 - 15092023
9
A
B
C
D
E
F
Set the correct baud rate and parity. Use switches 1 and 2 to set the baud
rate. Use switches 3 and 4 to set the parity.
Tab.2 Baud rate settings
Switches
1-2
off - off
on - off
off - on
on - on
AD-3002801-01
The default baud rate setting is 9600 Bd
Tab.3 Parity settings
Switches
3-4
off - off
on - off
off - on
on - on
The two-colour status LED on the gateway indicates the gateway's
operational status.
A green LED means the gateway is working normally. If the orange LED is
blinking, there is a problem.
Tab.4 LED colour indications
Colour
OFF
Green
Green
109
110
111
112
113
114
115
Modbus baud rate
9600 Bd Default value.
19200 Bd
38400 Bd
57600 Bd
Parity
None. Default value.
Odd
Even
None
AD-3002802-01
State Description
No power, or Defect
Continuous Normal function
Fast Blinking GTW-08 Modbus start-up phase
(100 ms)
en
4 Installation
