Overview on Menus and Icons Displayed

The following table summarizes the main software menus and icons displayed by the RSC
The operation of the software menus is explained in detail in the following chapters.

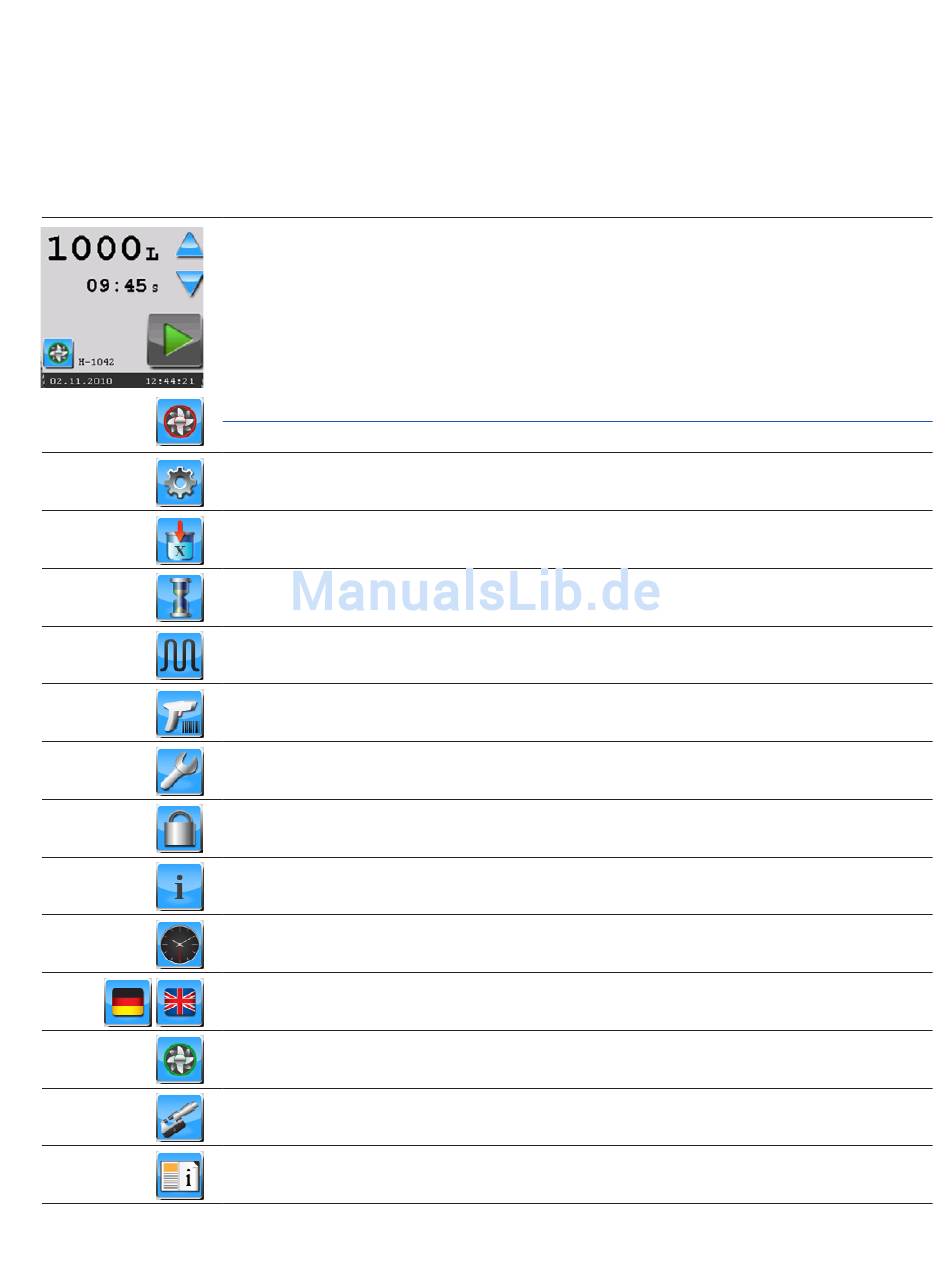

Menu/Icon Description
Main Menu
• Upper: Selected sampling volume and sampling time.
• Side: Arrows for changing the sampling volume.
• Lower left: Selected rotor. For changing the rotor touch the icon to go to the Rotor Menu
• Lower right: Start button to start the air sampling procedure.
NOTE
• If the calibration for the selected rotor is expired the rotor symbol is displayed in red.
Setting Menu: Contains the submenus "Individual Volume", "Delay Time", "Interval Sampling", "HYCON-ID",
"Option", and "QA Level".
Individual Volume: Access to three additional positions for the definition of user defined sampling
volumes.
Delay Time (displayed in the Main Menu upon activation): Programming of a delayed sampling start from
1 min to 2 h and activation.
Interval Sampling (Requires the RCS
Control of selected parameters and activation.
HYCON-ID (optional): Settings for the HYCON-ID data management and transfer.
Menu Option: Contains the submenus "System", "Date/Time", "Language", "Rotor", "Error Log List" and
"Service Area".
QA Level Management.
System: Displays the serial number of the device, version numbers of the software (VISU) and firmware,
and the battery capacity data.
Date/Time: Adjustment of local time and the time format. The date can only be changed by using the RCS
Management Software.
Language: Language selection by touching the button until the respective flag is displayed.
Menu Rotor: Selection of a rotor, calibration expiration information, manual change of the calibration factor.
Calibration Factor: Changing the calibation factor for an expired rotor.
Error Log List: Displays errors occured during operation.
®
®
Management Software, displayed in the Main Menu upon activation):
High Flow Touch software.
®
