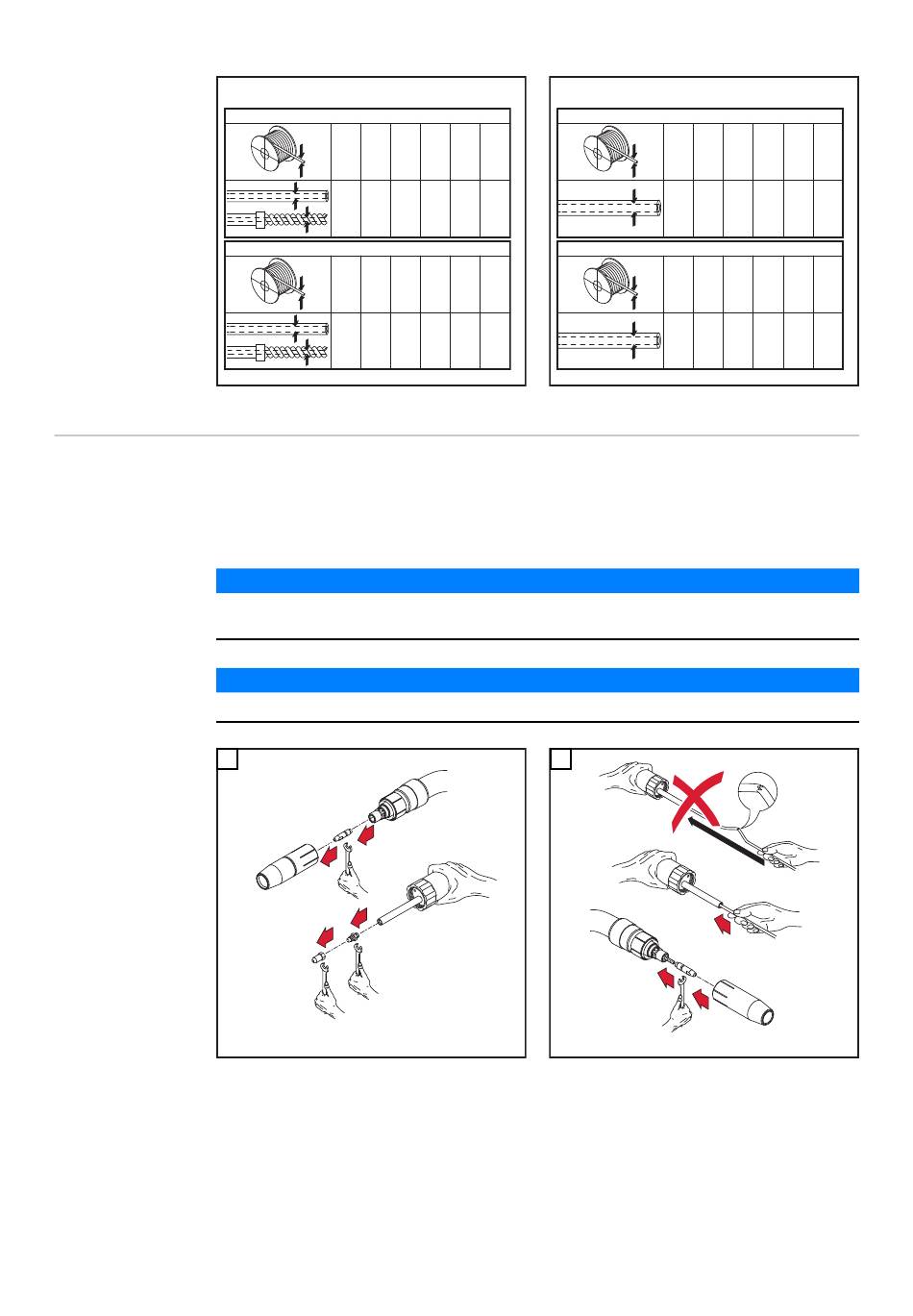

Fitting Plastic Liners (Fronius Connection With No Wirefeeding Nozzle) - Fronius Robacta Bedienungsanleitung

IMPORTANT! Inner liners are supplied in overlengths.
Graphite combination liners
Fitting plastic li- applies to:
ners (Fronius Teflon liners
connection with Combination liners
no wirefeeding Graphite liners
nozzle)
NOTE!
▶
NOTE!
▶
1
58
mm
0,6 0,8 0,9
1,1 1,1 1,5
inch
.023 .030 .035
.043 .043 .059
Feed the inner liner as close to the feed rollers as possible, but do not let
them touch.
Before feeding in the filler wire, round off the end of the wire.
2
1
4
3
1,0 1,2 1,6
1,5 2,0 2,5
.040 .045 1/16
.059 .079 .098
Teflon liners
2
mm
0,6 0,8 0,9 1,0 1,2 1,6
1,5 1,5 1,5 1,5 2,0 2,5
inch
.023 .030 .035 .040 .045 1/16
.059 .059 .059 .059 .079 .098
1
2
3
