Installation guide

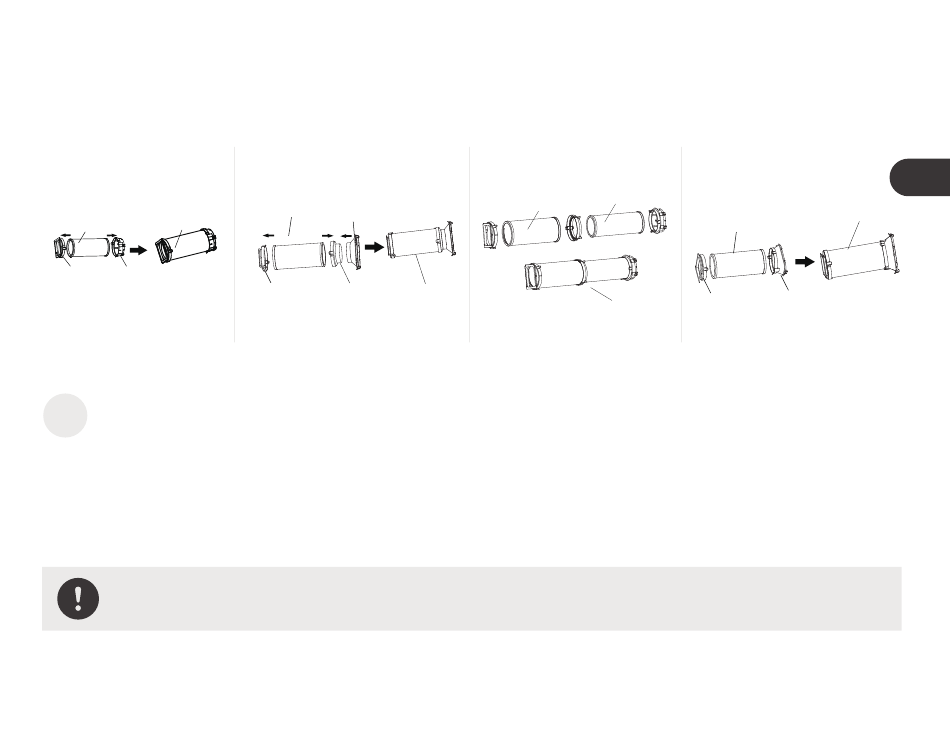

Model A
Exhaust hose
assembly
Exhaust hose
Unit adaptor Window slider
adaptor
1
The Exhaust Hose assembly installation (window type)
Press the exhaust hose(or extended exhaust hose) into the window slider adaptor
and unit adaptor, clamp automatically by elastic buckles of the adaptors.
NOTE:
Please install the exhaust hose assembly according to the fittings in your kit.
Model B
Air exhaust
Exhaust hose
passage
Unit adaptor Window slider Exhaust hose
adaptor assembly
Model C
Extended Exhaust
Exhaust hose
hose
Exhaust hose assembly
2 0
Model D
Exhaust hose
assembly
Exhaust hose
Air exhaust
Unit adaptor
passage
