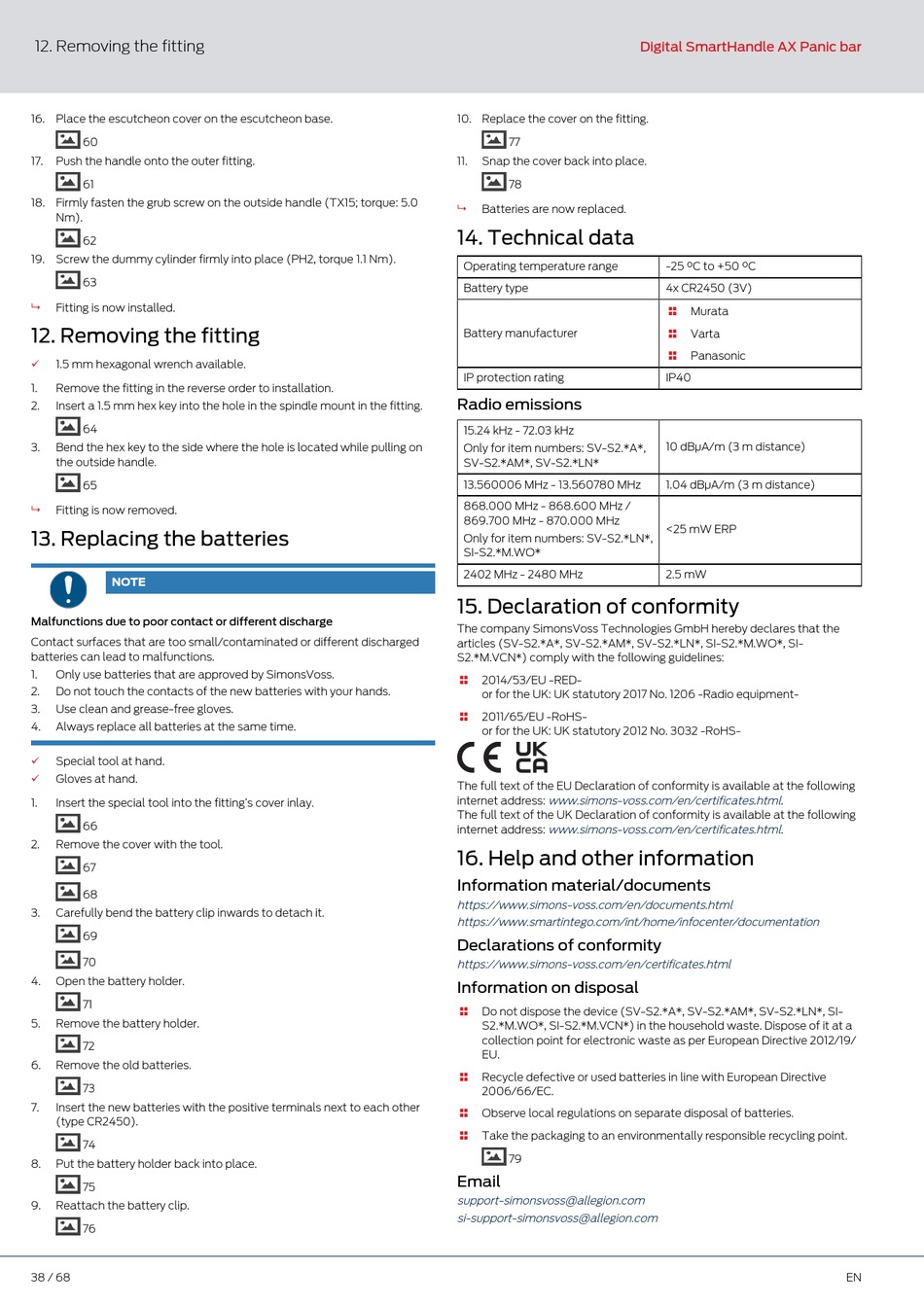

12. Removing the fitting
16. Place the escutcheon cover on the escutcheon base.
60
17. Push the handle onto the outer fitting.
61
18. Firmly fasten the grub screw on the outside handle (TX15; torque: 5.0
Nm).
62
19. Screw the dummy cylinder firmly into place (PH2, torque 1.1 Nm).
63
Fitting is now installed.
9
12. Removing the fitting
ü 1.5 mm hexagonal wrench available.
1. Remove the fitting in the reverse order to installation.
2. Insert a 1.5 mm hex key into the hole in the spindle mount in the fitting.
64
3. Bend the hex key to the side where the hole is located while pulling on
the outside handle.
65
9 Fitting is now removed.
13. Replacing the batteries
NOTE
Malfunctions due to poor contact or different discharge
Contact surfaces that are too small/contaminated or different discharged
batteries can lead to malfunctions.
1. Only use batteries that are approved by SimonsVoss.
2. Do not touch the contacts of the new batteries with your hands.
3. Use clean and grease-free gloves.
4. Always replace all batteries at the same time.
ü Special tool at hand.
ü Gloves at hand.
1. Insert the special tool into the fitting's cover inlay.
66
2. Remove the cover with the tool.
67
68
3. Carefully bend the battery clip inwards to detach it.
69
70
4. Open the battery holder.
71
5. Remove the battery holder.
72
6. Remove the old batteries.
73
7. Insert the new batteries with the positive terminals next to each other
(type CR2450).
74
8. Put the battery holder back into place.
75
9. Reattach the battery clip.
76
38 / 68
10. Replace the cover on the fitting.
77
11. Snap the cover back into place.
78
9 Batteries are now replaced.
14. Technical data
Operating temperature range
Battery type
Battery manufacturer
IP protection rating
Radio emissions
15.24 kHz - 72.03 kHz
Only for item numbers: SV-S2.*A*,
SV-S2.*AM*, SV-S2.*LN*
13.560006 MHz - 13.560780 MHz
868.000 MHz - 868.600 MHz /
869.700 MHz - 870.000 MHz
Only for item numbers: SV-S2.*LN*,
SI-S2.*M.WO*
2402 MHz - 2480 MHz
15. Declaration of conformity
The company SimonsVoss Technologies GmbH hereby declares that the
articles (SV-S2.*A*, SV-S2.*AM*, SV-S2.*LN*, SI-S2.*M.WO*, SI-
S2.*M.VCN*) comply with the following guidelines:
2014/53/EU -RED-

or for the UK: UK statutory 2017 No. 1206 -Radio equipment-
2011/65/EU -RoHS-

or for the UK: UK statutory 2012 No. 3032 -RoHS-
The full text of the EU Declaration of conformity is available at the following
internet address: www.simons-voss.com/en/certificates.html
The full text of the UK Declaration of conformity is available at the following
internet address: www.simons-voss.com/en/certificates.html
16. Help and other information
Information material/documents
https://www.simons-voss.com/en/documents.html
https://www.smartintego.com/int/home/infocenter/documentation
Declarations of conformity
https://www.simons-voss.com/en/certificates.html
Information on disposal
Do not dispose the device (SV-S2.*A*, SV-S2.*AM*, SV-S2.*LN*, SI-

S2.*M.WO*, SI-S2.*M.VCN*) in the household waste. Dispose of it at a
collection point for electronic waste as per European Directive 2012/19/
EU.
 Recycle defective or used batteries in line with European Directive
2006/66/EC.
Observe local regulations on separate disposal of batteries.

Take the packaging to an environmentally responsible recycling point.

79
Email
support-simonsvoss@allegion.com
si-support-simonsvoss@allegion.com
Digital SmartHandle AX Panic bar
-25 °C to +50 °C
4x CR2450 (3V)
Murata

Varta

Panasonic

IP40
10 dBµA/m (3 m distance)
1.04 dBµA/m (3 m distance)
<25 mW ERP
2.5 mW
.
.
