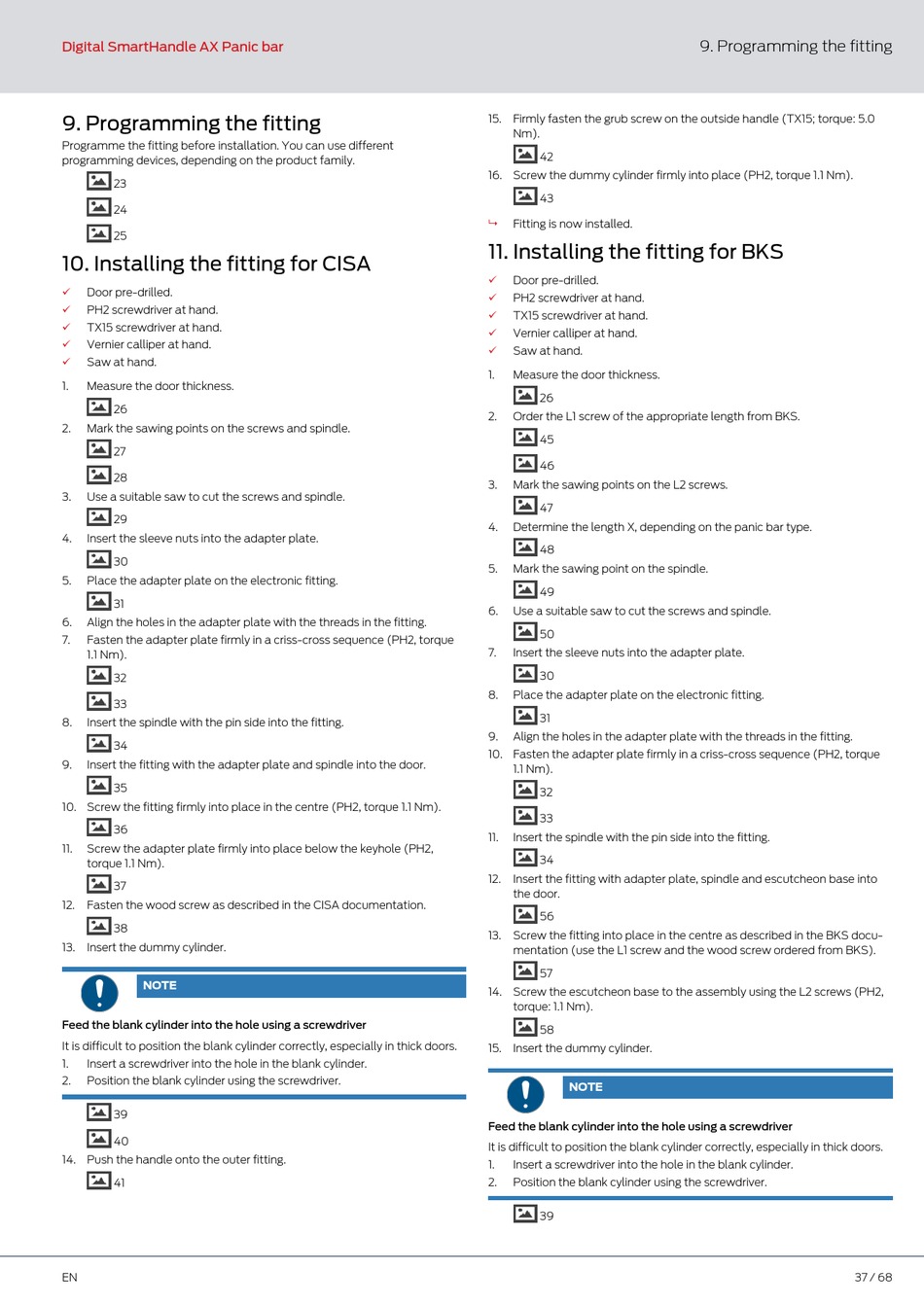

9. Programming the fitting
Programme the fitting before installation. You can use different
programming devices, depending on the product family.
23
24
25
10. Installing the fitting for CISA
Door pre-drilled.
ü
PH2 screwdriver at hand.
ü
TX15 screwdriver at hand.
ü
ü Vernier calliper at hand.
ü Saw at hand.
1. Measure the door thickness.
26
2. Mark the sawing points on the screws and spindle.
27
28
3. Use a suitable saw to cut the screws and spindle.
29
4. Insert the sleeve nuts into the adapter plate.
30
5. Place the adapter plate on the electronic fitting.
31
6. Align the holes in the adapter plate with the threads in the fitting.
7. Fasten the adapter plate firmly in a criss-cross sequence (PH2, torque
1.1 Nm).
32
33
8. Insert the spindle with the pin side into the fitting.
34
9. Insert the fitting with the adapter plate and spindle into the door.
35
10. Screw the fitting firmly into place in the centre (PH2, torque 1.1 Nm).
36
11. Screw the adapter plate firmly into place below the keyhole (PH2,
torque 1.1 Nm).
37
12. Fasten the wood screw as described in the CISA documentation.
38
13. Insert the dummy cylinder.
NOTE
Feed the blank cylinder into the hole using a screwdriver
It is difficult to position the blank cylinder correctly, especially in thick doors.
1. Insert a screwdriver into the hole in the blank cylinder.
2. Position the blank cylinder using the screwdriver.
39
40
14. Push the handle onto the outer fitting.
41
EN
15. Firmly fasten the grub screw on the outside handle (TX15; torque: 5.0
Nm).
42
16. Screw the dummy cylinder firmly into place (PH2, torque 1.1 Nm).
43
9 Fitting is now installed.
11. Installing the fitting for BKS
Door pre-drilled.
ü
PH2 screwdriver at hand.
ü
TX15 screwdriver at hand.
ü
ü Vernier calliper at hand.
ü Saw at hand.
1. Measure the door thickness.
26
2. Order the L1 screw of the appropriate length from BKS.
45
46
3. Mark the sawing points on the L2 screws.
47
4. Determine the length X, depending on the panic bar type.
48
5. Mark the sawing point on the spindle.
49
6. Use a suitable saw to cut the screws and spindle.
50
7. Insert the sleeve nuts into the adapter plate.
30
8. Place the adapter plate on the electronic fitting.
31
9. Align the holes in the adapter plate with the threads in the fitting.
10. Fasten the adapter plate firmly in a criss-cross sequence (PH2, torque
1.1 Nm).
32
33
11. Insert the spindle with the pin side into the fitting.
34
12. Insert the fitting with adapter plate, spindle and escutcheon base into
the door.
56
13. Screw the fitting into place in the centre as described in the BKS docu-
mentation (use the L1 screw and the wood screw ordered from BKS).
57
14. Screw the escutcheon base to the assembly using the L2 screws (PH2,
torque: 1.1 Nm).
58
15. Insert the dummy cylinder.
NOTE
Feed the blank cylinder into the hole using a screwdriver
It is difficult to position the blank cylinder correctly, especially in thick doors.
1. Insert a screwdriver into the hole in the blank cylinder.
2. Position the blank cylinder using the screwdriver.
39
