ENGLISH
Interface
3. Unsheat the electrical cables and connect the power and communication cables to the correct
terminal respecting the color . Tighten the screw and then secure the cable with the appropriate
cable clamp on the terminal board.
4. Replace the wiring compartment cover and then secure or tighten the screw.
5. Close the front panel
Note:
All connections between indoor unit and outdoor unit must be made by qualified personnel.
If the power cable is not long enough, replace it with one of adequate length.
For plug-in air conditioners, the plug should be connected only after installation is complete.
For air conditioners without power supply by means of a plug, a switch must be provided to disconnect the
system's power supply.

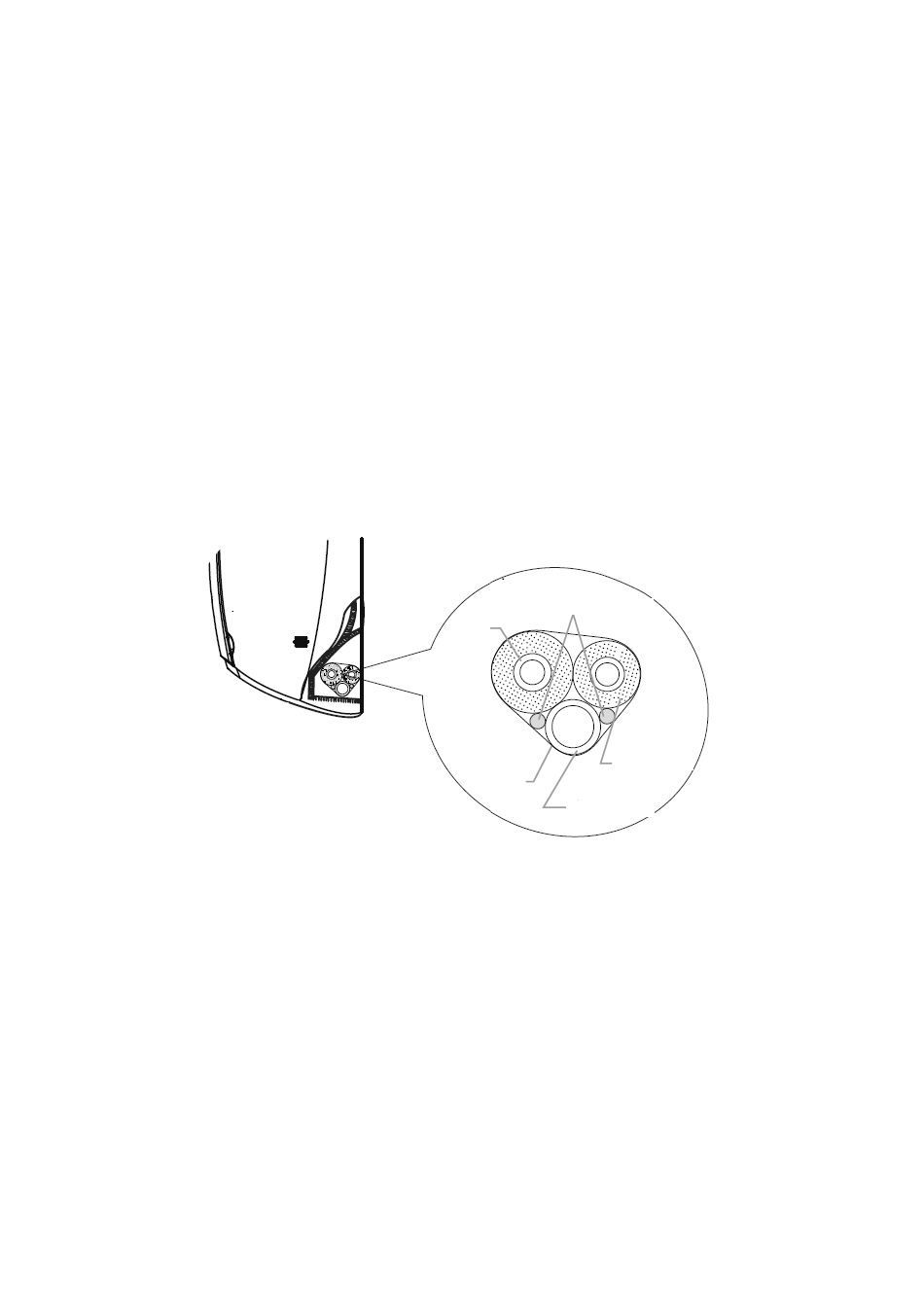

Pipe cover
5. Once completed the junction of the refrigerant pipes cover the pipes , the shortcuts en to electrical
cables of power edi communication and d having connected the drain tube fix everything with the
band.
Remove the device
Operate as below
4. Press "Air conditioner" to enter the menù
5. Press "
6. Press "Remove device" to remove the conditioner.
6. Reserve an adequate additional lenght of pipe drainage and power cord and communication to
complete the installation . After you fixed for a few centimeters of the tubing and cables between,
separating the drain hose and the power cord (as shown in the figure).
TEKNO POINT ITALIA S.R.L. - VIA DELL'ARTIGIANATO 5 - 30020 MARCON (VE) – ITALY TEKNO POINT ITALIA S.R.L. - VIA DELL'ARTIGIANATO 5 - 30020 MARCON (VE) – ITALY
68
Conditioner off
"
Press "Air
conditioner" to
enter the menù
COMMERCIALE@TEKNOPOINT.COM – WWW.TEKNOPOINT.COM COMMERCIALE@TEKNOPOINT.COM – WWW.TEKNOPOINT.COM
MUI_UNITÀ INTERNA DELFIN_Ita_Eng_Fra_Deu_SKY/Rev.00/Data 03.06.2020 MUI_DELFIN_Ita_Eng_Fra_Deu_SKY/Rev.00/Data 03.06.2020
Conditioner on
Indoor and outdoor power cord
Gas pipe
Tape
Press " "
48 55
Nastro
Share the device:
Press " ", than press
"Share device"
Liquid pipe
Drain hose
Press "Remove
device" to
remove the
conditioner.
Tubazione del
liquido
ENGLISH
