ENGLISH

Installation instructions

1. Choose the installation site
Arrange an installation site with the customer that respects the distances indicated above , after obtaining
confirmation , proceed with the next step .
2. Install the wall mount bracket
To fasten the support bracket of the unit to the wall, follow the instructions below:
1. Fasten the bracket to the wall, by adjusting the horizontal alignment with a spirit level, after that,
mark the positions of the fixing holes in the wall .
2. Drill the holes with a bit of suitable size for the dowels to be used. Then insert the pressure plugs
into the holes.
15. Press " Confirm " after entering the password.
3. Fasten the bracket to the wall with the screws suitable for the anchors used. After that check that
the bracket is securely fastened to the wall . In case they find loose plugs or with little sealing make
other mounting holes until the clip is securely fastened.
Note:
Fastening screws and plugs are not supplied and must be purchased separately.
3. Open the hole for the pipes
The refrigerant pipes can follow 2 types of route. Then either go behind the indoor unit by making holes in
the support wall of the unit or exit laterally to the unit by breaking the special pre- cut flap .
1. In case you want to lead the pipe posterity mind practicing of holes on the supporting wall is
necessary to drill the wall with holes of a diameter of at least 55 or 70 mm and in any case of an
appropriate size to the passage of the pipes.
16. Select and connect to the "Smart Life-xxx" network. Once connected, return to the App. If the

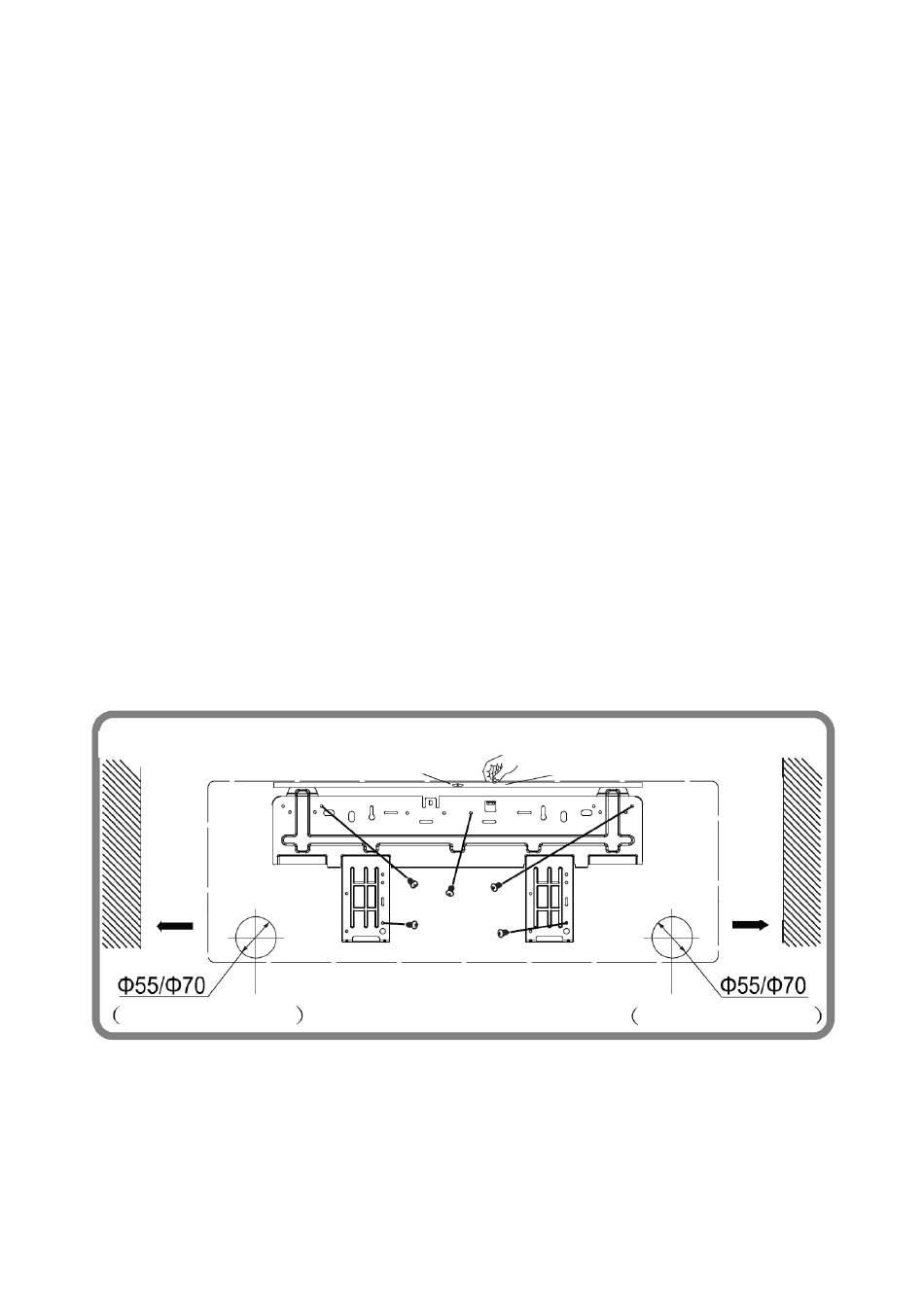

When making the passage holes, respect the distances shown below.
device has been added successfully will be a message on the Home page, after that you can click on
the air conditioner for operations.
Above
150mm
Rear piping hole
TEKNO POINT ITALIA S.R.L. - VIA DELL'ARTIGIANATO 5 - 30020 MARCON (VE) – ITALY TEKNO POINT ITALIA S.R.L. - VIA DELL'ARTIGIANATO 5 - 30020 MARCON (VE) – ITALY
COMMERCIALE@TEKNOPOINT.COM – WWW.TEKNOPOINT.COM COMMERCIALE@TEKNOPOINT.COM – WWW.TEKNOPOINT.COM
MUI_UNITÀ INTERNA DELFIN_Ita_Eng_Fra_Deu_SKY/Rev.00/Data 03.06.2020 MUI_DELFIN_Ita_Eng_Fra_Deu_SKY/Rev.00/Data 03.06.2020
47 50
ENGLISH
Above
150mm
Rear piping hole
