15. Press " Confirm " after entering the password.
5. Connecting the refrigerant piping to the unit
The connection of the refrigerant gas pipes is a very important and delicate procedure to guarantee the
pressure seal and the correct functioning of the air conditioning system.

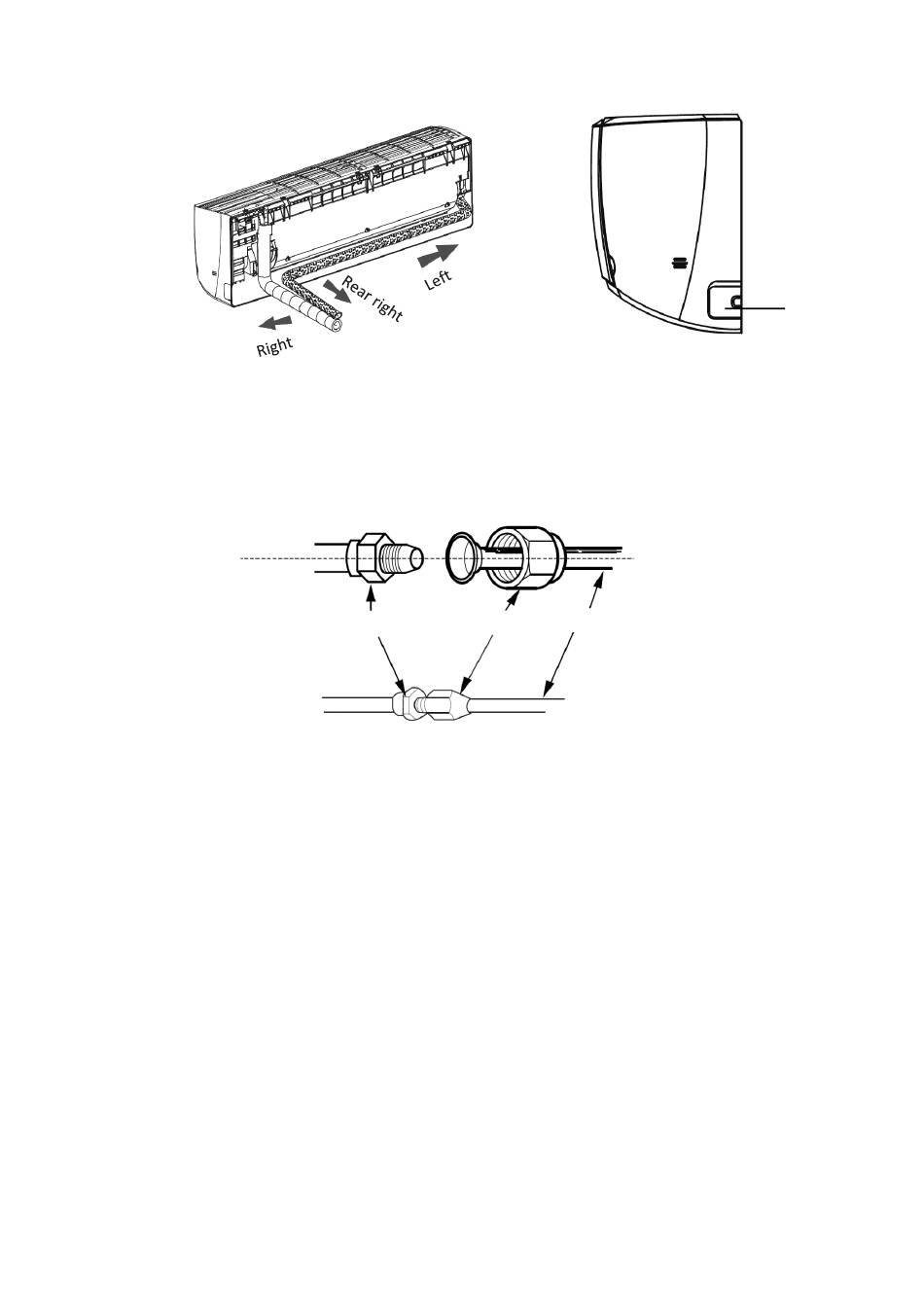

1. Make the flare with the flare tool
2. Point the joint to the corresponding flare:
16. Select and connect to the "Smart Life-xxx" network. Once connected, return to the App. If the
device has been added successfully will be a message on the Home page, after that you can click on
the air conditioner for operations.
3. Tighten the nut by hand to assess the centricity of the flaring . If the flaring is central and cracks
have been generated, cut the final part of the pipe and redo the folder .
