Taiga
| Electric Wheelchair
The user can activate the adjustment functions with the Mode button.
The lamps for the relevant LED for an adjustment option (left footrest,
right footrest, seat, backrest) show which adjustment function is active
at that time.
Adjustment functions
Once the adjustment functions have been activated using the Mode
button, move the joystick (Fig. 35) left or right, to select between the
possible adjustment functions. These are shown through the LEDs on the
display panel (Fig. 36).
By deflecting the joystick forwards or backwards, you can control the
relevant adjustment direction for the individual channels. In order to
return to drive mode, press the Mode button again or one of the buttons
for speed level adjustment.

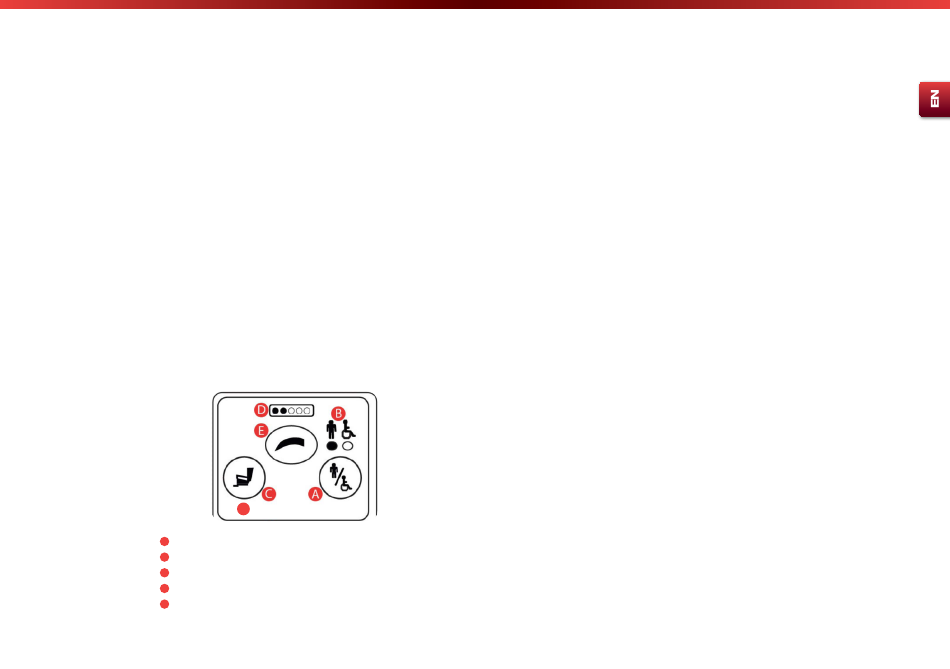

6.8. Functional description of the
R-NET attendant control unit
As an option, an attendant control unit is available so that an attendant
is able to control the wheelchair.
Toggle switch for operating mode
A
Operating display
B
Adjustment function button
C
Display for active drive and speed level
D
Speed level adjustment button
E
96
39.
Toggle switch for operating mode
Use the toggle switch (A) (Fig. 39) select the operating mode, whether
the wheelchair will be controlled by the attendant control unit or by the
user. The selected operating mode will be shown through the LEDs (B).
The red LED lights up when the wheelchair is being controlled by the
user. The green LED lights up when the wheelchair can be controlled by
the attendant.
Adjustment function button
All R-NET attendant control units are fitted with an adjustment function
button as standard. If the R-NET control unit is not programmed with any
adjustment options, this button has no function.
However if the R-NET control unit is programmed with 1 or up to 4
adjustment options, the functions for this button are described in the
relevant section below.
Wheelchairs with up to 4 adjustment options
Pressing the adjustment function button (C) once will activate the setup
mode for the electronic adjustment options.
By deflecting the joystick forwards or backwards, you can control the
relevant adjustment direction for the individual channels. Select between
the adjustment options by deflecting the joystick to the left or right.
When you change the selected adjustment option, this is shown on the
control panel of the user's control unit.
To return to drive mode, either press the adjustment function button (C)
or the speed level button (E).
Speed levels display
Indicates the speed level adjustment for the wheelchair, if the attendant
control unit is activated. There are five settings - setting 1 is the lowest
speed and setting 5 is the highest speed. The speed level is adjusting
using the (E) button.
