6.4. Functional description of the
VR2 attendant control unit

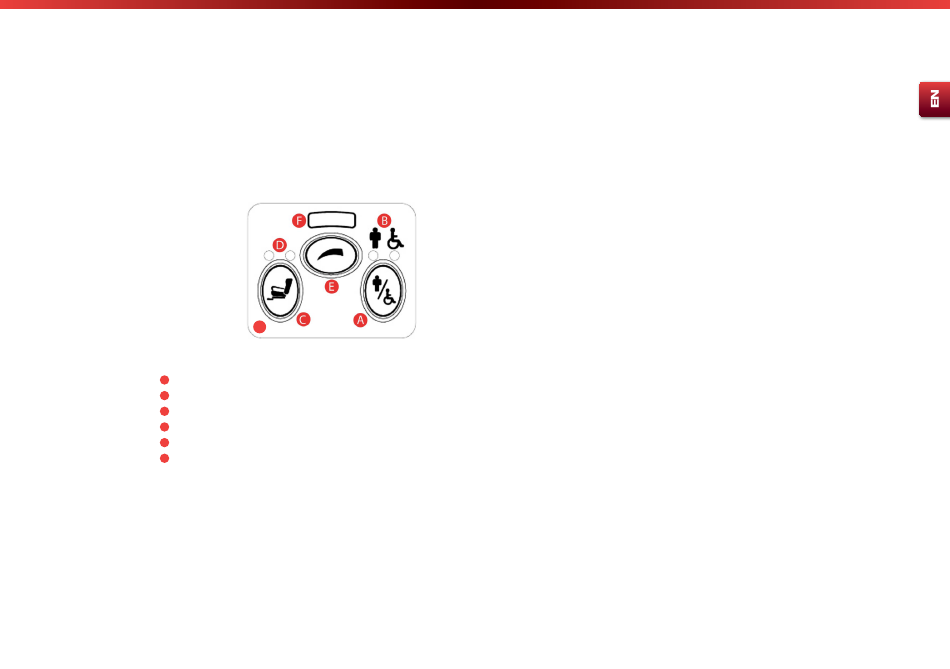

As an option the electric wheelchair can be fitted with an attendant
control unit.
Toggle switch for operating mode
A
Operating display
B
Adjustment function button
C
Display for activated adjustment option
D
Speed level adjustment button
E
Speed level display
F
90
34.
Toggle switch for operating mode
Use the toggle switch (A) to select the operating mode, whether the
wheelchair will be controlled by the attendant control unit or by the user.
The selected operating mode will be shown through the LEDs (B). The
red LED lights up when the wheelchair is being controlled by the user.
The green LED lights up when the wheelchair can be controlled by the
attendant.
Adjustment function button
All VR2 attendant control units are fitted with an adjustment function
button (C) as standard. If the VR2 control unit is not programmed with
any adjustment options, this button has no function.
However if the VR2 control unit is programmed with 1 or 2 adjustment
options, the functions for this button are described in the relevant section
below.
Wheelchairs with one adjustment option
Pressing the adjustment function button (C) once will activate the
electronic adjustment options.
This is indicated by both LEDs above the adjustment function button
lighting up (D). By deflecting the joystick forwards or backwards, you can
control the adjustment direction for this channel.
To return to drive mode, either press the adjustment function button (C)
or the speed level button (E).
Wheelchairs with two adjustment options
By pressing the adjustment function button (C) the electronic adjustment
options are activated. By pressing the button once, the left LED lights up,
and then by deflecting the joystick forwards or backwards you can control
the adjustment direction for this channel.
