Taiga
| Electric Wheelchair

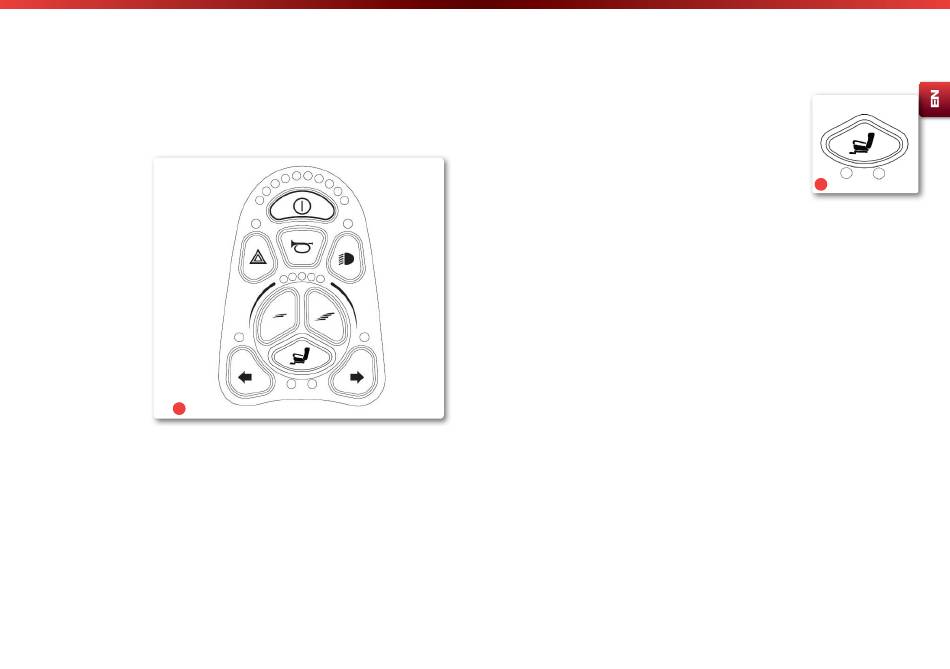

6.3. Functional description of the
VR2 control unit for electronic
adjustment options (optional)
32.
88
Controlling the adjustment options
By pressing the adjustment function button (Fig. 33) the electronic
adjustment options are activated. By pressing the button once the LED
display below the button is activated.
Wheelchairs with one adjustment option
Pressing the adjustment function button (Fig. 33) once activates the
electronic adjustment options. This is indicated by both LEDs below the
adjustment function button lighting up.
By deflecting the joystick forwards or backwards, you can control the
adjustment direction for this channel.
To return to drive mode, either press the adjustment function button (Fig.
33) or one of the two the speed level buttons (Fig. 28).
Wheelchairs with two adjustment options
By pressing the adjustment function button (Fig. 33) the electronic
adjustment options are activated. By pressing the button once, the left
LED lights up, and then by deflecting the joystick forwards or backwards
you can control the adjustment direction for this channel.
Select between the two adjustment options by deflecting the joystick
to the left or right. If the other adjustment option is selected, the
relevant LED will light up. LEFT for adjustment option 1 and RIGHT for
adjustment option 2.
To return to drive mode, press the adjustment function button (Fig. 33)
again or press one of the two speed level buttons. (Fig. 28).
Bischoff & Bischoff GmbH | 2024 - 03 - 21– Revision: 2
Taiga
Electric Wheelchair |
33.
89
