B+B Taiga Bedienungsanleitung Seite 44

Taiga
| Electric Wheelchair

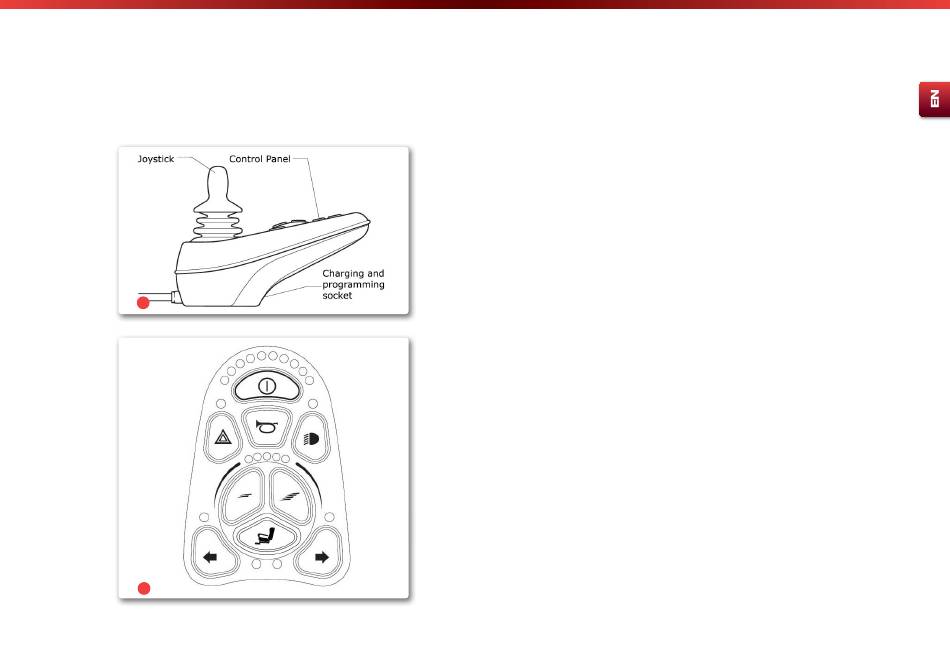

6.2. Description of functions of VR-2
control
30.
31.
86
Using for the first time
Sit on the seat of your Bischoff & Bischoff wheelchair and place your feet
on the footplates.
Make sure that you are sitting as far back in the seat as possible. Make
sure that loose clothing such as, for example, scarves, shirts, etc. do not
hang out of the wheelchair to the side where they could get caught in
the wheels.
Switch your wheelchair on using the on/off button (Fig. 26). You can now
operate the control unit as described in this chapter.
Joystick
The main function of the joystick is to control the speed and direction
of the wheelchair. The further you push the joystick from the central
position, the faster the wheelchair will go. When you move the joystick
back, the brakes are applied automatically (see Chapter 2.5).
If the wheelchair is fitted with electronic adjustment options, the joystick
can also be used for selection and adjustment, see Section 6.3 for further
details.
Control panel
All electronic functions for the wheelchair are operated using the control
panel. The on/off button (Fig. 26) powers the electronics for the control
system, which in turn powers the motors of the wheelchair. Do not use
the on/off button to stop the wheelchair, unless it is an emergency.
Doing this reduces the service life of the drive components. The battery
display indicates that the wheelchair is switched on.
The functions of the control panel are described in Chapter 6.1.
Charging and programming socket
Using the charging and programming socket is described in Chapter 6.14.
Bischoff & Bischoff GmbH | 2024 - 03 - 21– Revision: 2
Taiga
Electric Wheelchair |
87
