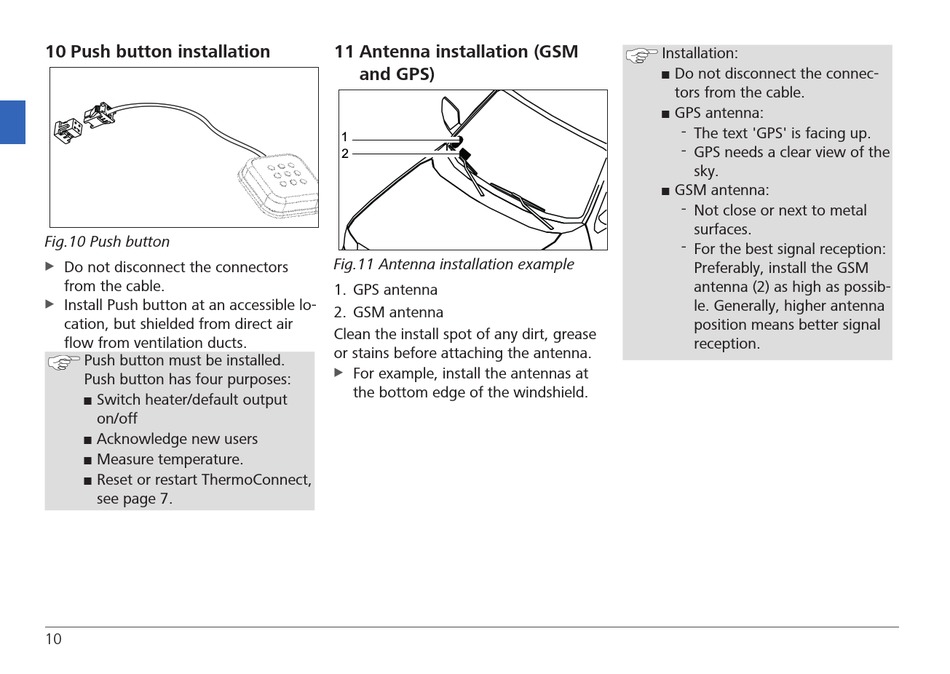

10 Push button installation
Fig.10 Push button
Do not disconnect the connectors
X X
from the cable.
Install Push button at an accessible lo-
X X
cation, but shielded from direct air
flow from ventilation ducts.
Push button must be installed.
Push button has four purposes:
■ Switch heater/default output
on/off
■ Acknowledge new users
■ Measure temperature.
■ Reset or restart ThermoConnect,
see page 7.
10
11 Antenna installation (GSM
and GPS)
1
2
Fig.11 Antenna installation example
1. GPS antenna
2. GSM antenna
Clean the install spot of any dirt, grease
or stains before attaching the antenna.
For example, install the antennas at
X X
the bottom edge of the windshield.
Installation:
■ Do not disconnect the connec-
tors from the cable.
■ GPS antenna:
- The text 'GPS' is facing up.
- GPS needs a clear view of the
sky.
■ GSM antenna:
- Not close or next to metal
surfaces.
- For the best signal reception:
Preferably, install the GSM
antenna (2) as high as possib-
le. Generally, higher antenna
position means better signal
reception.
