Austria, Belgium, Bulgaria, Croatia, Cy-
prus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hun-
gary, Ireland, Italy, Latvia, Lithuania, Lux-
embourg, Malta, Netherlands, Norway,
Poland, Portugal, Romania, Slovakia (Slo-
vak Republic), Slovenia, Spain, Sweden,
Switzerland, United Kingdom.

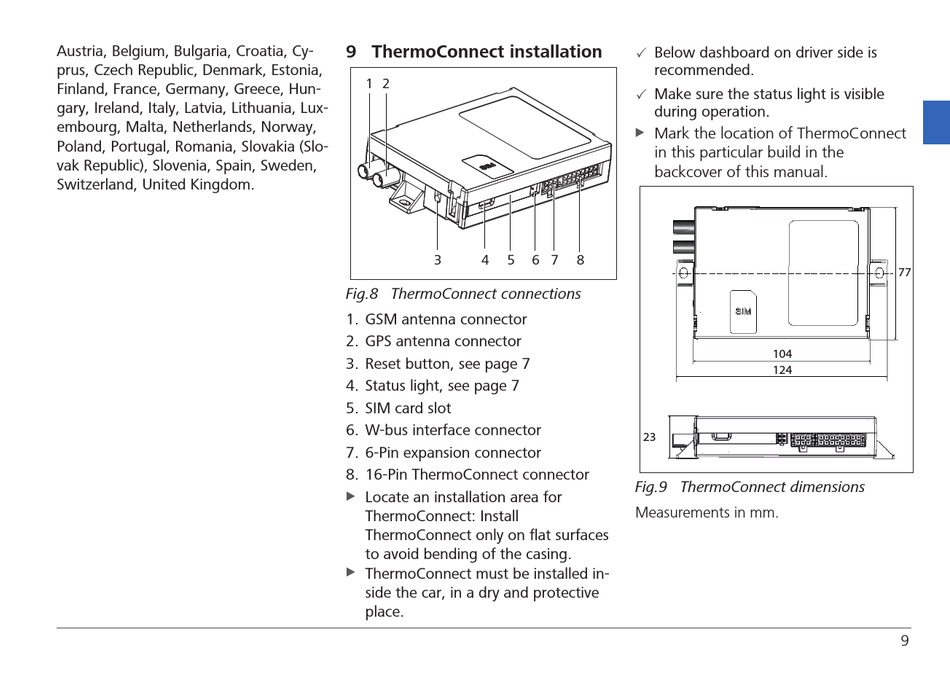

9 ThermoConnect installation
1 2
3 4 5
Fig.8 ThermoConnect connections
1. GSM antenna connector
2. GPS antenna connector
3. Reset button, see page 7
4. Status light, see page 7
5. SIM card slot
6. W-bus interface connector
7. 6-Pin expansion connector
8. 16-Pin ThermoConnect connector
Locate an installation area for
X X
ThermoConnect: Install
ThermoConnect only on flat surfaces
to avoid bending of the casing.
ThermoConnect must be installed in-
X X
side the car, in a dry and protective
place.
Below dashboard on driver side is
3
recommended.
Make sure the status light is visible
3
during operation.
Mark the location of ThermoConnect
XX
in this particular build in the
backcover of this manual.
6 7 8
23
Fig.9 ThermoConnect dimensions
Measurements in mm.
77
104
124
9
