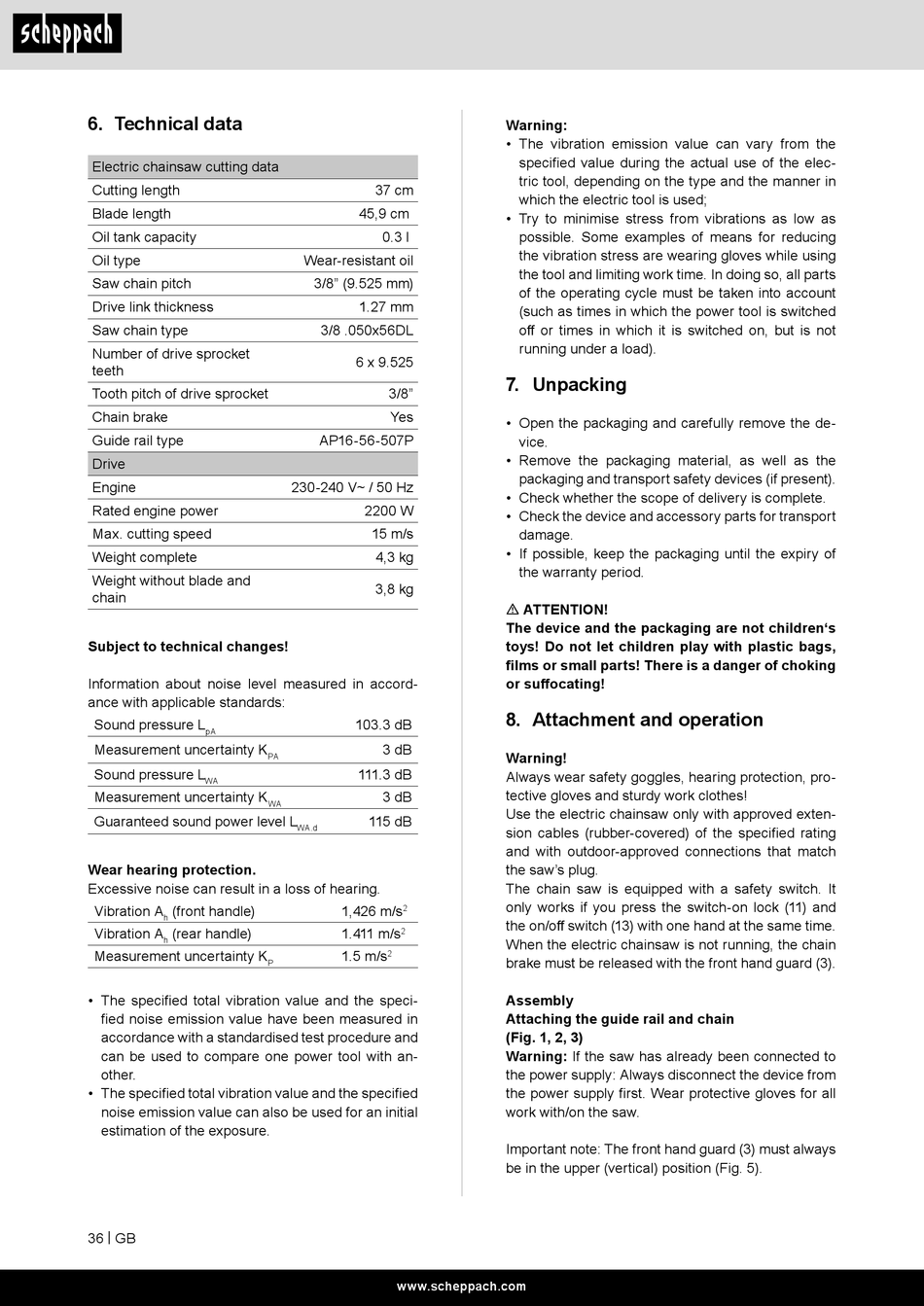

6. Technical data
Electric chainsaw cutting data
Cutting length
Blade length
Oil tank capacity
Oil type
Saw chain pitch
Drive link thickness
Saw chain type
Number of drive sprocket
teeth
Tooth pitch of drive sprocket
Chain brake
Guide rail type
Drive
Engine
Rated engine power
Max. cutting speed
Weight complete
Weight without blade and
chain
Subject to technical changes!
Information about noise level measured in accord-
ance with applicable standards:
Sound pressure L
pA
Measurement uncertainty K
Sound pressure L
WA
Measurement uncertainty K
Guaranteed sound power level L
Wear hearing protection.
Excessive noise can result in a loss of hearing.
Vibration A
(front handle)
h
Vibration A
(rear handle)
h
Measurement uncertainty K
• The specified total vibration value and the speci-
fied noise emission value have been measured in
accordance with a standardised test procedure and
can be used to compare one power tool with an-
other.
• The specified total vibration value and the specified
noise emission value can also be used for an initial
estimation of the exposure.
36 | GB
37 cm
45,9 cm
0.3 l
Wear-resistant oil
3/8" (9.525 mm)
1.27 mm
3/8 .050x56DL
6 x 9.525
3/8"
Yes
AP16-56-507P
230-240 V~ / 50 Hz
2200 W
15 m/s
4,3 kg
3,8 kg
103.3 dB
3 dB
PA
111.3 dB
3 dB
WA
115 dB
WA.d
1,426 m/s
2
1.411 m/s
2
1.5 m/s
2
P
www.scheppach.com
Warning:
• The vibration emission value can vary from the
specified value during the actual use of the elec-
tric tool, depending on the type and the manner in
which the electric tool is used;
• Try to minimise stress from vibrations as low as
possible. Some examples of means for reducing
the vibration stress are wearing gloves while using
the tool and limiting work time. In doing so, all parts
of the operating cycle must be taken into account
(such as times in which the power tool is switched
off or times in which it is switched on, but is not
running under a load).
7. Unpacking
• Open the packaging and carefully remove the de-
vice.
• Remove the packaging material, as well as the
packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport
damage.
• If possible, keep the packaging until the expiry of
the warranty period.
m ATTENTION!
The device and the packaging are not children's
toys! Do not let children play with plastic bags,
films or small parts! There is a danger of choking
or suffocating!
8. Attachment and operation
Warning!
Always wear safety goggles, hearing protection, pro-
tective gloves and sturdy work clothes!
Use the electric chainsaw only with approved exten-
sion cables (rubber-covered) of the specified rating
and with outdoor-approved connections that match
the saw's plug.
The chain saw is equipped with a safety switch. It
only works if you press the switch-on lock (11) and
the on/off switch (13) with one hand at the same time.
When the electric chainsaw is not running, the chain
brake must be released with the front hand guard (3).
Assembly
Attaching the guide rail and chain
(Fig. 1, 2, 3)
Warning: If the saw has already been connected to
the power supply: Always disconnect the device from
the power supply first. Wear protective gloves for all
work with/on the saw.
Important note: The front hand guard (3) must always
be in the upper (vertical) position (Fig. 5).
