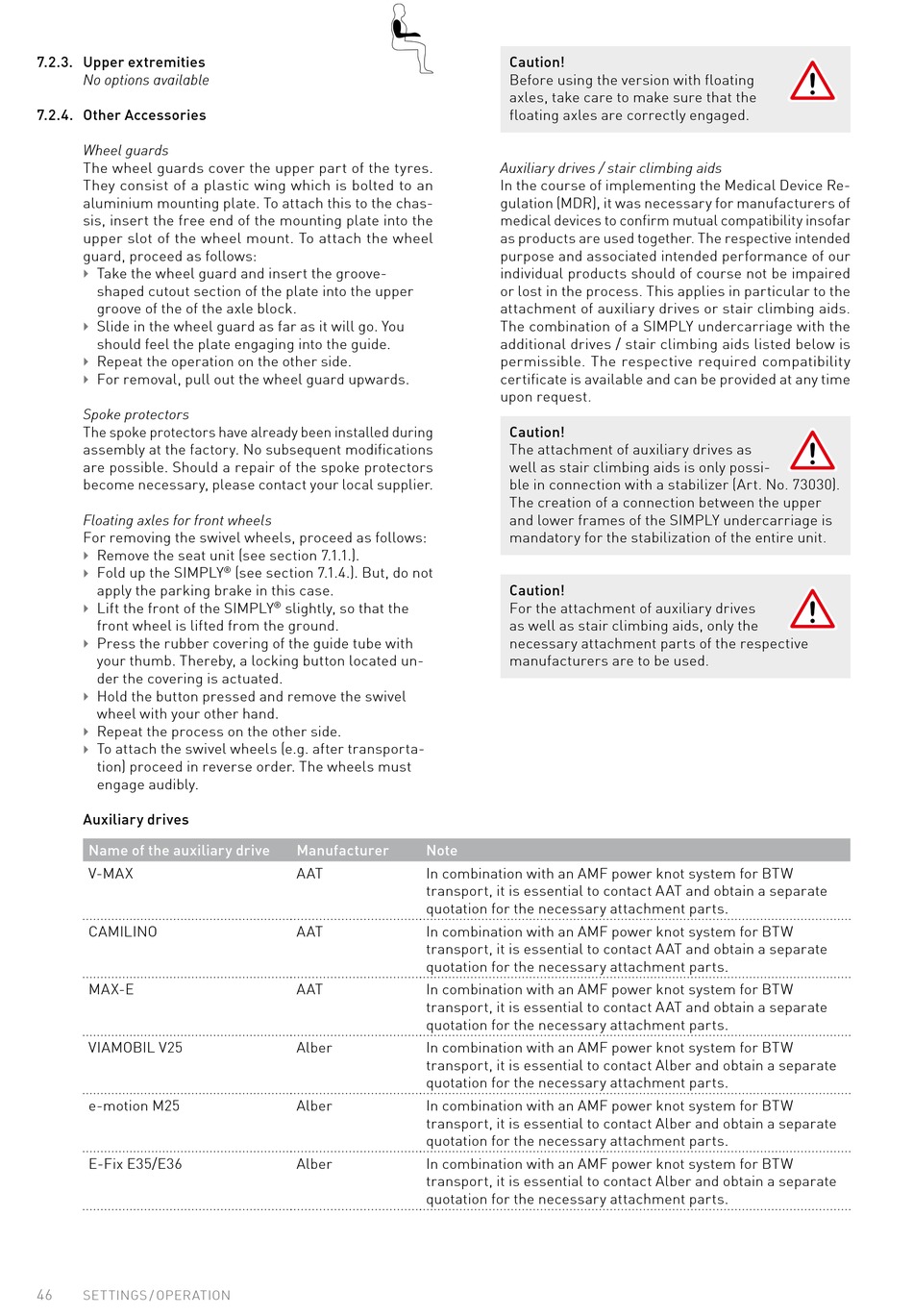

7.2.3. Upper extremities

No options available

7.2.4. Other Accessories

Wheel guards
The wheel guards cover the upper part of the tyres
They consist of a plastic wing which is bolted to an
aluminium mounting plate To attach this to the chas-
sis, insert the free end of the mounting plate into the
upper slot of the wheel mount To attach the wheel
guard, proceed as follows:
Take the wheel guard and insert the groove-

shaped cutout section of the plate into the upper
groove of the of the axle block
Slide in the wheel guard as far as it will go You

should feel the plate engaging into the guide
Repeat the operation on the other side

For removal, pull out the wheel guard upwards

Spoke protectors
The spoke protectors have already been installed during
assembly at the factory No subsequent modifications
are possible Should a repair of the spoke protectors
become necessary, please contact your local supplier
Floating axles for front wheels
For removing the swivel wheels, proceed as follows:
Remove the seat unit (see section 711)

Fold up the SIMPLY

apply the parking brake in this case
Lift the front of the SIMPLY

front wheel is lifted from the ground
Press the rubber covering of the guide tube with

your thumb Thereby, a locking button located un-
der the covering is actuated
Hold the button pressed and remove the swivel

wheel with your other hand
Repeat the process on the other side

To attach the swivel wheels (eg after transporta-

tion) proceed in reverse order The wheels must
engage audibly
Auxiliary drives
Name of the auxiliary drive
V-MAX
CAMILINO
MAX-E
VIAMOBIL V25
e-motion M25
E-Fix E35/E36
46
SETTINGS / OPERATION
(see section 714) But, do not
®
slightly, so that the
®
Manufacturer
AAT
AAT
AAT
Alber
Alber
Alber
Caution!
Before using the version with floating
axles, take care to make sure that the
floating axles are correctly engaged
Auxiliary drives / stair climbing aids
In the course of implementing the Medical Device Re-
gulation (MDR), it was necessary for manufacturers of
medical devices to confirm mutual compatibility insofar
as products are used together� The respective intended
purpose and associated intended performance of our
individual products should of course not be impaired
or lost in the process� This applies in particular to the
attachment of auxiliary drives or stair climbing aids�
The combination of a SIMPLY undercarriage with the
additional drives / stair climbing aids listed below is
permissible� The respective required compatibility
certificate is available and can be provided at any time
upon request�
Caution!
The attachment of auxiliary drives as
well as stair climbing aids is only possi-
ble in connection with a stabilizer (Art� No� 73030)�
The creation of a connection between the upper
and lower frames of the SIMPLY undercarriage is
mandatory for the stabilization of the entire unit�
Caution!
For the attachment of auxiliary drives
as well as stair climbing aids, only the
necessary attachment parts of the respective
manufacturers are to be used�
Note
In combination with an AMF power knot system for BTW
transport, it is essential to contact AAT and obtain a separate
quotation for the necessary attachment parts
In combination with an AMF power knot system for BTW
transport, it is essential to contact AAT and obtain a separate
quotation for the necessary attachment parts
In combination with an AMF power knot system for BTW
transport, it is essential to contact AAT and obtain a separate
quotation for the necessary attachment parts
In combination with an AMF power knot system for BTW
transport, it is essential to contact Alber and obtain a separate
quotation for the necessary attachment parts
In combination with an AMF power knot system for BTW
transport, it is essential to contact Alber and obtain a separate
quotation for the necessary attachment parts
In combination with an AMF power knot system for BTW
transport, it is essential to contact Alber and obtain a separate
quotation for the necessary attachment parts
