1.

Introduction

1.1.

Product description

SIMPLY is the street chassis for the interco seat unit
®
range and offers a variety of adjustment possibilities�
The inclination of the seat unit can be continuously
adjusted via gas spring� Pneumatic tyres and drum
brakes supplied as standard ensure a high degree
of safety and comfort� At the front, SIMPLY

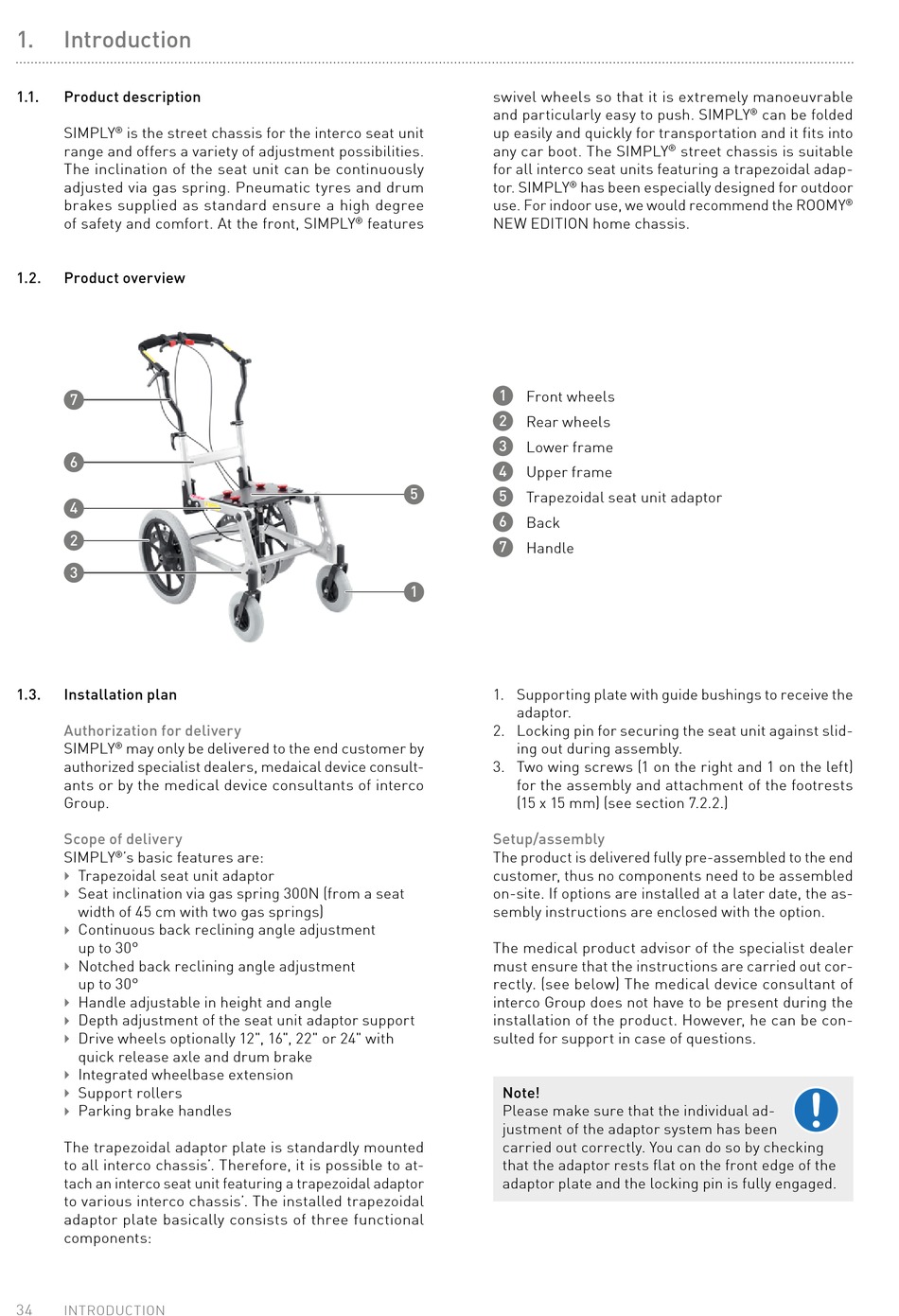

1.2.

Product overview

7
6
4
2
3
1.3.

Installation plan

Authorization for delivery
SIMPLY may only be delivered to the end customer by
®
authorized specialist dealers, medaical device consult-
ants or by the medical device consultants of interco
Group
Scope of delivery
SIMPLY 's basic features are:
®
Trapezoidal seat unit adaptor

Seat inclination via gas spring 300N (from a seat

width of 45 cm with two gas springs)
Continuous back reclining angle adjustment

up to 30°
Notched back reclining angle adjustment

up to 30°
Handle adjustable in height and angle

Depth adjustment of the seat unit adaptor support

Drive wheels optionally 12", 16", 22" or 24" with

quick release axle and drum brake
Integrated wheelbase extension

Support rollers

Parking brake handles

The trapezoidal adaptor plate is standardly mounted
to all interco chassis' Therefore, it is possible to at-
tach an interco seat unit featuring a trapezoidal adaptor
to various interco chassis' The installed trapezoidal
adaptor plate basically consists of three functional
components:
34
INTRODUCTION
swivel wheels so that it is extremely manoeuvrable
and particularly easy to push� SIMPLY
up easily and quickly for transportation and it fits into
any car boot� The SIMPLY
for all interco seat units featuring a trapezoidal adap-
tor� SIMPLY
use� For indoor use, we would recommend the ROOMY
features NEW EDITION home chassis�
®
1
2
3
4
5
5
6
7
1
1 Supporting plate with guide bushings to receive the
adaptor
2 Locking pin for securing the seat unit against slid-
ing out during assembly
3 Two wing screws (1 on the right and 1 on the left)
for the assembly and attachment of the footrests
(15 x 15 mm) (see section 722)
Setup/assembly
The product is delivered fully pre-assembled to the end
customer, thus no components need to be assembled
on-site If options are installed at a later date, the as-
sembly instructions are enclosed with the option
The medical product advisor of the specialist dealer
must ensure that the instructions are carried out cor-
rectly (see below) The medical device consultant of
interco Group does not have to be present during the
installation of the product However, he can be con-
sulted for support in case of questions
Note!
Please make sure that the individual ad-
justment of the adaptor system has been
carried out correctly You can do so by checking
that the adaptor rests flat on the front edge of the
adaptor plate and the locking pin is fully engaged
street chassis is suitable
®
has been especially designed for outdoor
®
Front wheels
Rear wheels
Lower frame
Upper frame
Trapezoidal seat unit adaptor
Back
Handle
can be folded
®
®
