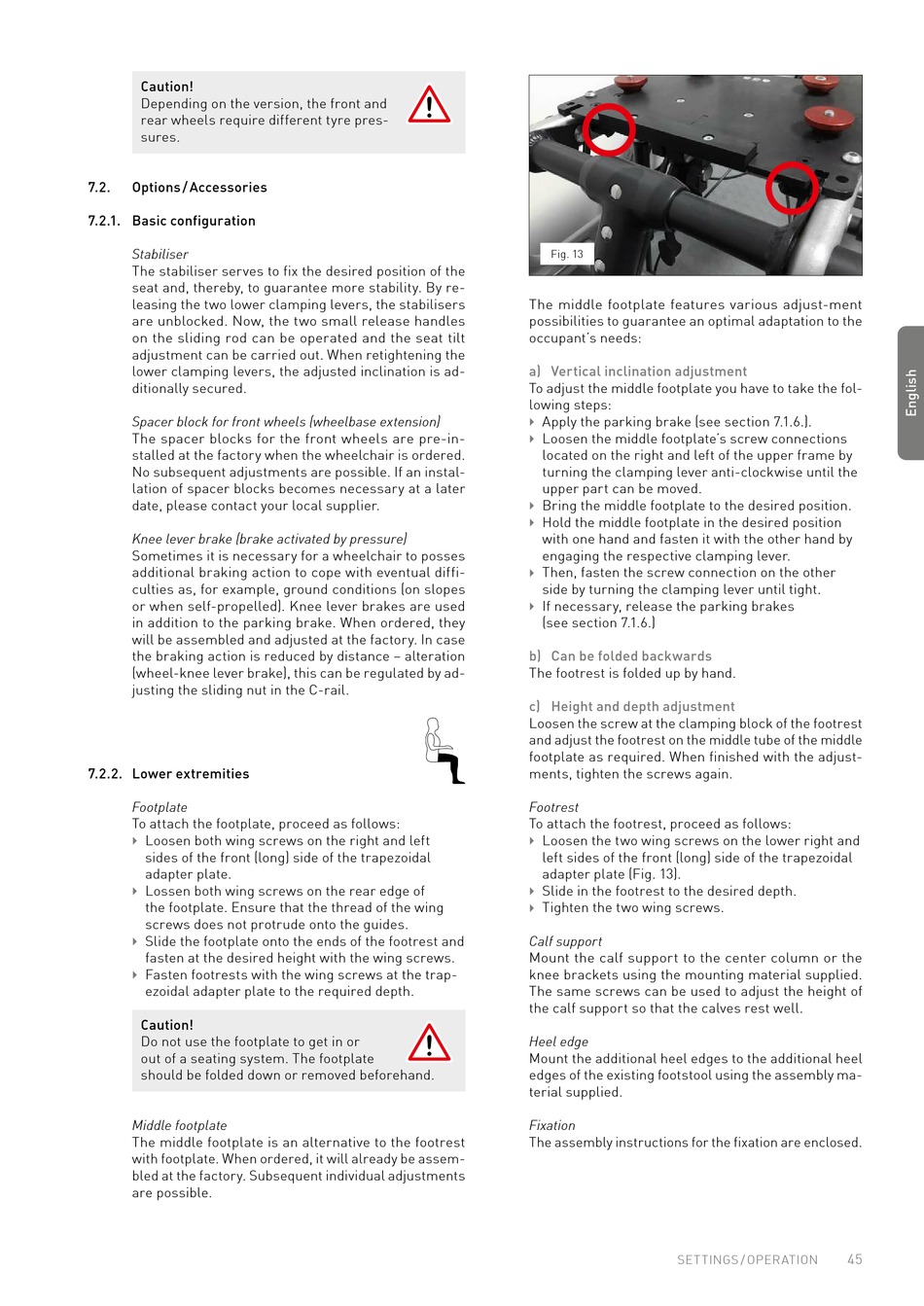

Caution!
Depending on the version, the front and
rear wheels require different tyre pres-
sures
7.2.

Options / Accessories

7.2.1. Basic configuration

Stabiliser
The stabiliser serves to fix the desired position of the
seat and, thereby, to guarantee more stability By re-
leasing the two lower clamping levers, the stabilisers
are unblocked Now, the two small release handles
on the sliding rod can be operated and the seat tilt
adjustment can be carried out When retightening the
lower clamping levers, the adjusted inclination is ad-
ditionally secured
Spacer block for front wheels (wheelbase extension)
The spacer blocks for the front wheels are pre-in-
stalled at the factory when the wheelchair is ordered
No subsequent adjustments are possible If an instal-
lation of spacer blocks becomes necessary at a later
date, please contact your local supplier
Knee lever brake (brake activated by pressure)
Sometimes it is necessary for a wheelchair to posses
additional braking action to cope with eventual diffi-
culties as, for example, ground conditions (on slopes
or when self-propelled) Knee lever brakes are used
in addition to the parking brake When ordered, they
will be assembled and adjusted at the factory In case
the braking action is reduced by distance – alteration
(wheel-knee lever brake), this can be regulated by ad-
justing the sliding nut in the C-rail

7.2.2. Lower extremities

Footplate
To attach the footplate, proceed as follows:
Loosen both wing screws on the right and left
sides of the front (long) side of the trapezoidal
adapter plate
Lossen both wing screws on the rear edge of
the footplate Ensure that the thread of the wing
screws does not protrude onto the guides
Slide the footplate onto the ends of the footrest and
fasten at the desired height with the wing screws
Fasten footrests with the wing screws at the trap-
ezoidal adapter plate to the required depth
Caution!
Do not use the footplate to get in or
out of a seating system The footplate
should be folded down or removed beforehand
Middle footplate
The middle footplate is an alternative to the footrest
with footplate When ordered, it will already be assem-
bled at the factory Subsequent individual adjustments
are possible
Fig 13
The middle footplate features various adjust-ment
possibilities to guarantee an optimal adaptation to the
occupant's needs:
a) Vertical inclination adjustment
To adjust the middle footplate you have to take the fol-
lowing steps:
Apply the parking brake (see section 716)
Loosen the middle footplate's screw connections
located on the right and left of the upper frame by
turning the clamping lever anti-clockwise until the
upper part can be moved
Bring the middle footplate to the desired position
Hold the middle footplate in the desired position
with one hand and fasten it with the other hand by
engaging the respective clamping lever
Then, fasten the screw connection on the other
side by turning the clamping lever until tight
If necessary, release the parking brakes
(see section 716)
b) Can be folded backwards
The footrest is folded up by hand
c) Height and depth adjustment
Loosen the screw at the clamping block of the footrest
and adjust the footrest on the middle tube of the middle
footplate as required When finished with the adjust-
ments, tighten the screws again
Footrest
To attach the footrest, proceed as follows:
Loosen the two wing screws on the lower right and
left sides of the front (long) side of the trapezoidal
adapter plate (Fig 13)
Slide in the footrest to the desired depth
Tighten the two wing screws
Calf support
Mount the calf support to the center column or the
knee brackets using the mounting material supplied
The same screws can be used to adjust the height of
the calf support so that the calves rest well
Heel edge
Mount the additional heel edges to the additional heel
edges of the existing footstool using the assembly ma-
terial supplied
Fixation
The assembly instructions for the fixation are enclosed
SETTINGS / OPERATION
45
