Art. no. Article
46551 Heel stop for leg rest system, complete version
46552 Heel stop for leg rest with individual foot supports
46510 Heal stop cushion without cover
46511 Black synthetic leather cover for heal stop cushion
46520 Foot rest cushion without cover
46521 Black synthetic leather cover for foot rest cushion
46410 Foot straps with hook and loop fastener with padded instep
46411 Foot straps made of leather with padded instep
46412 Foot straps with deflection roller and padded instep with hook and loop fastener
46419 Foot straps with incremental adjustment and padded instep
46420 Foot straps with clip buckle and padded instep
46210 Foot shells made of aluminum
46414 Foot gaiters without forefoot restraint made of neoprene
46416 Foot gaiters with forefoot restraint made of neoprene

6.2.3. Upper extremities

No options available

6.2.4. Other Accessories

Art. no. Article
73004 Quick release axles for front wheels for SIMPLY
73035 Stop for front wheels
73001-12 Wheel protectors, includes mounting materials for SIMPLY
73001-16 for SIMPLY
73001-22
73001-24
73002-12 Spoke protectors, transparentfor SIMPLY
73002-16 for SIMPLY
73002-22
73002-24
7.

Settings / Operation

Every interco product is customized to the individual
needs of the user and configured accordingly To do
justice to all possible product designs, the list of op-
tions and accessories as well as their descriptions is
therefore somewhat more extensive Therefore please
bear in mind that this Section may also describe com-
ponents that possibly do not exist on your product
7.1. Basic configuration

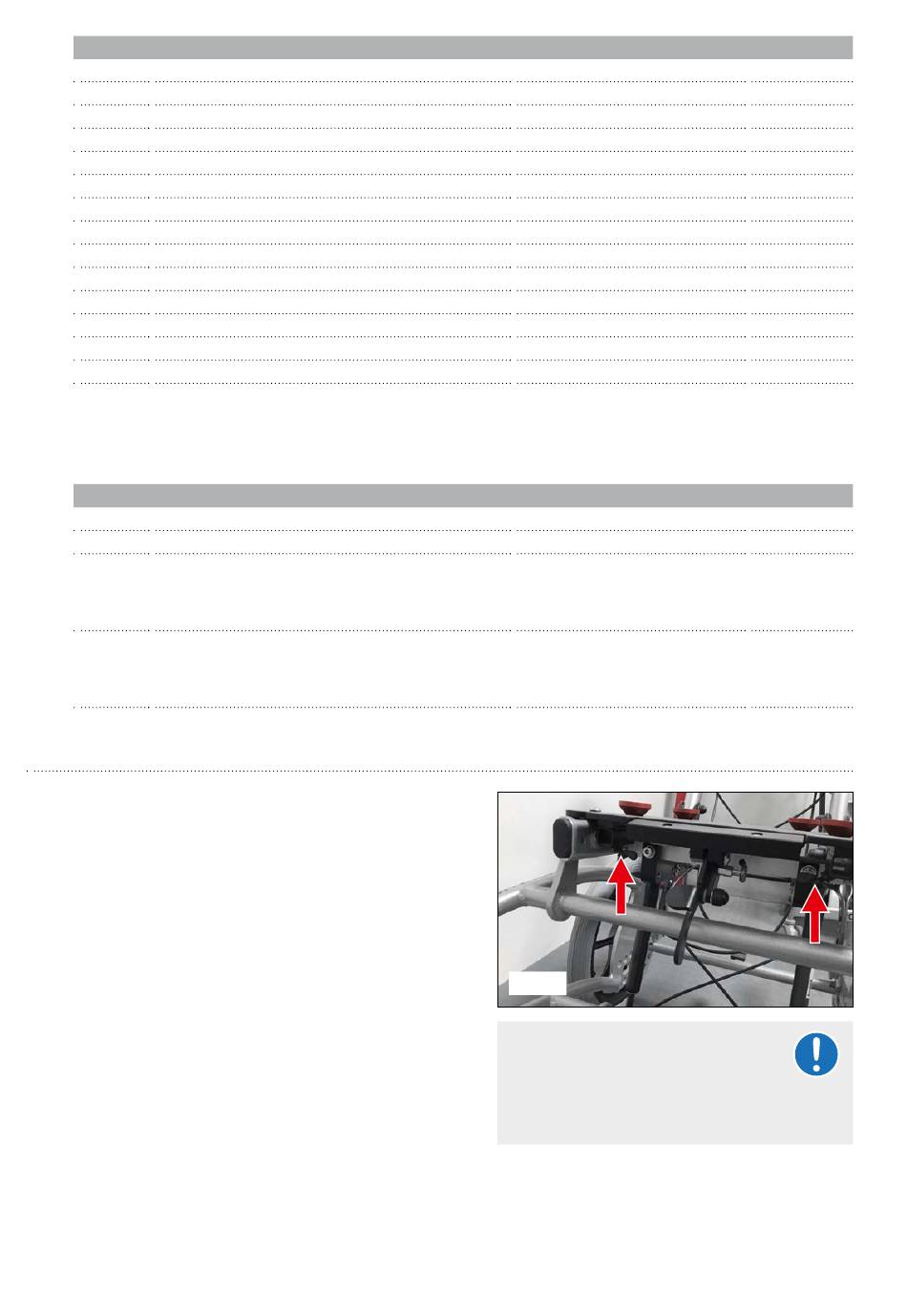

7.1.1. Trapezoidal adaptor plate
The trapezoidal adaptor plate is standardly mounted to
all interco undercarriages Therefore, it is possible to
attach an interco seat unit featuring a trapezoidal adap-
tor to various interco undercarriages The installed
trapezoidal adaptor plate basically consists of three
functional components:
1 Supporting plate with guide bushings to receive the
adaptor
2 Locking pin for securing the seat unit against slid-
ing out during assembly
3 Two wing screws (one on the right and one on the
left – Fig 1) for the assembly and attachment of the
footrests (see section 722)
40
SETTINGS / OPERATION
22" and for SIMPLY 24"
® ®
22" and for SIMPLY 24"
® ®
®
12", for SIMPLY
®
12", for SIMPLY 16",
® ®
Fig 1
Note!
Please make sure that the individual ad-
justment of the adaptor system has been
carried out correctly You can do so by checking
that the adaptor rests flat on the front edge of the
adaptor plate and the locking pin is fully engaged
Attachment of the seat unit
The seat unit is fixed in the trapazoid adapter plate
(Fig 2) with the help of the trapazoid adapter Carry
out the following steps and check the safe halt of the
seat unit afterwards
Size
size 1-3
size 1-3
size 1-3
Size
16",
®
