Example:
Program 2 includes scenes: 10, 11, 12, 13;
Program 4 includes scenes: 8, 9, 10 and
Program 6 includes scenes: 12, 13, 14, 15, 16
Chase Part 1 is Program 2;
Chase Part 2 is Program 3;
Chase Part 3 is Program 6

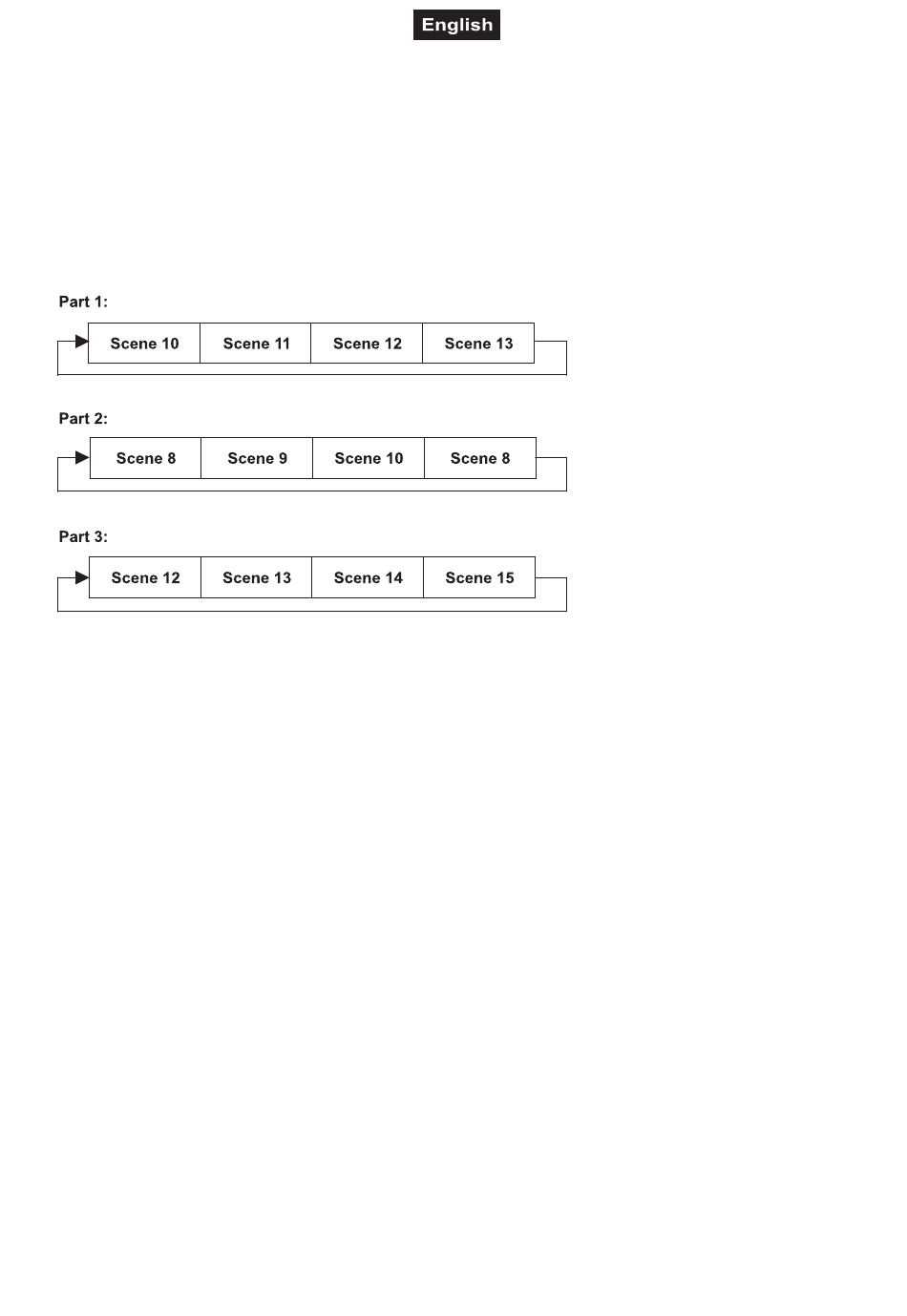

The 3 Slave groups run the Auto Program in certain time segments, as shown in the following picture:

DMX-controlled operation

The device has 4 DMX channel modes. The Control Board allows you, as described above, to assign the
DMX-Mode. Every DMX-channel has a different occupation with different features. You can control the
projectors individually via your DMX-controller.

Addressing

The Control Board allows you to assign the DMX fixture address, which is defined as the first channel from
which the Zeitgeist TMH-360Z INFINITY will respond to the controller.
Please, be sure that you don't have any overlapping channels in order to control each Zeitgeist TMH-360Z
INFINITY correctly and independently from any other fixture on the DMX-chain. If several Zeitgeist TMH-
360Z INFINITY are addressed similarly, they will work synchronically.
Controlling:
Press the Up/Down-buttons for setting the desired starting address. After having addressed the Zeitgeist
TMH-360Z INFINITY, you may now start operating it via your lighting controller.
If you set in the 24 channel mode, for example, the address to channel 25, the device will use the channel 25
to 48 for control.
Note:
After switching on, the device will automatically detect whether DMX 512 data is received or not. If there is
no data received at the DMX-input, the display will flash.
This situation can occur if:
- the XLR plug (cable with DMX signal from controller) is not connected with the input of the device.
- the controller is switched off or defective, if the cable or connector is defective or the signal wires are swap
in the input connector.
The individual channels and their features are listed under DMX-protocol.
