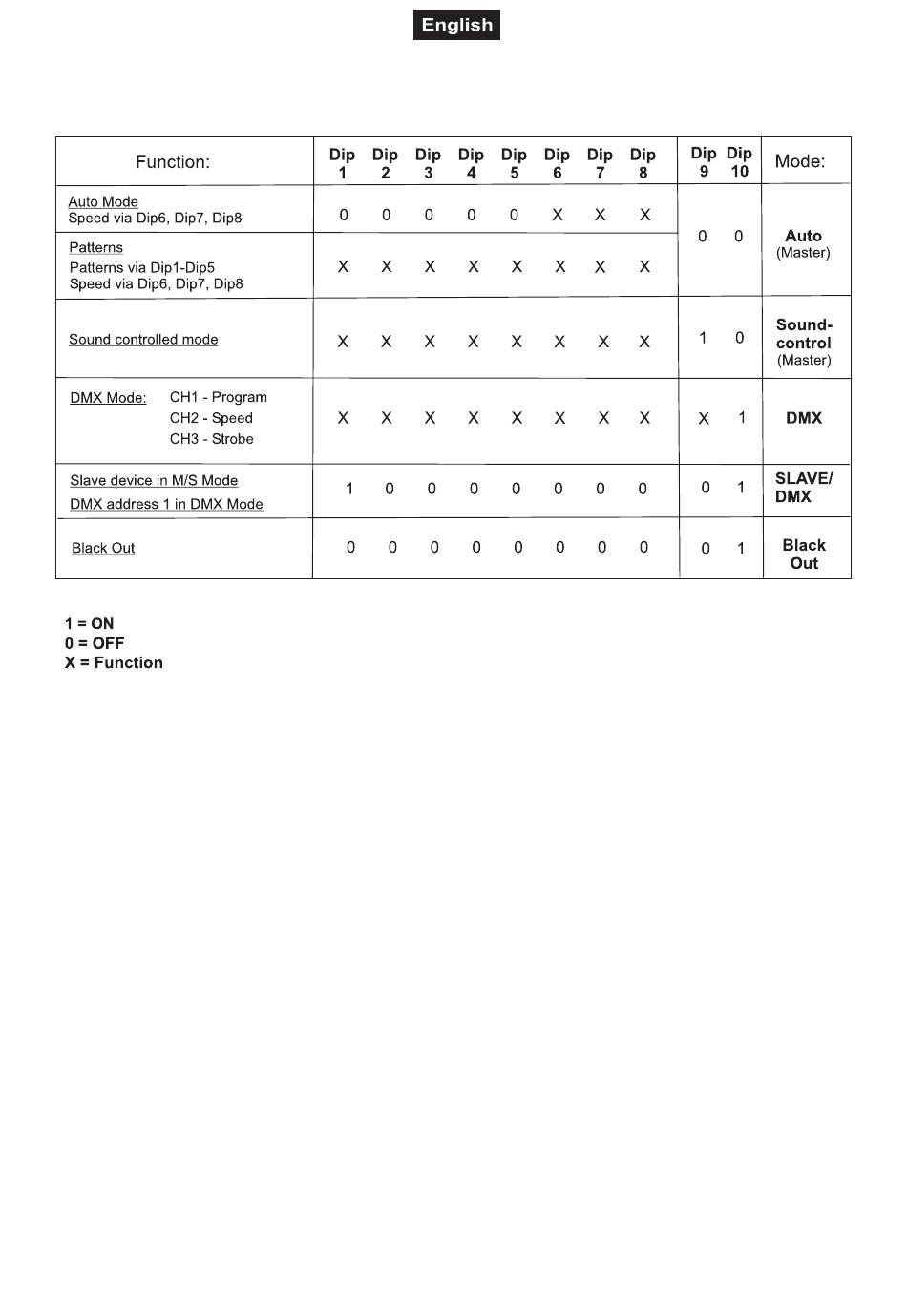

OPERATION VIA DIP SWITCHES
Auto Mode
In order to select Auto mode, set DIP switch 9 and 10 to OFF. Set DIP switches 1 – 5 to OFF as well.
Speed can be adjusted via DIP switches 6, 7 and 8.
Patterns
Set DIP switches 9 and to OFF. Patterns can be selected via DIP switches 1 – 5.
Speed can be adjusted via DIP switches 6, 7 and 8.
Sound Control
In order to select Sound Controlled Mode, set DIP switch 9 to ON and DIP switch 10 to OFF.
To select a different pattern, first exit Sound Controlled Mode by setting DIP switch 9 to OFF and then select
a pattern via DIPS 1 – 5.
DMX-CONTROLLED OPERATION
You can control the devices individually via your DMX-controller. Every DMX-channel has a different
occupation with different features.
For DMX-controlled operation set DIP Switch 10 to ON. Set DIP Switch 1 and 10 to ON in order to determine
the Slave device.
