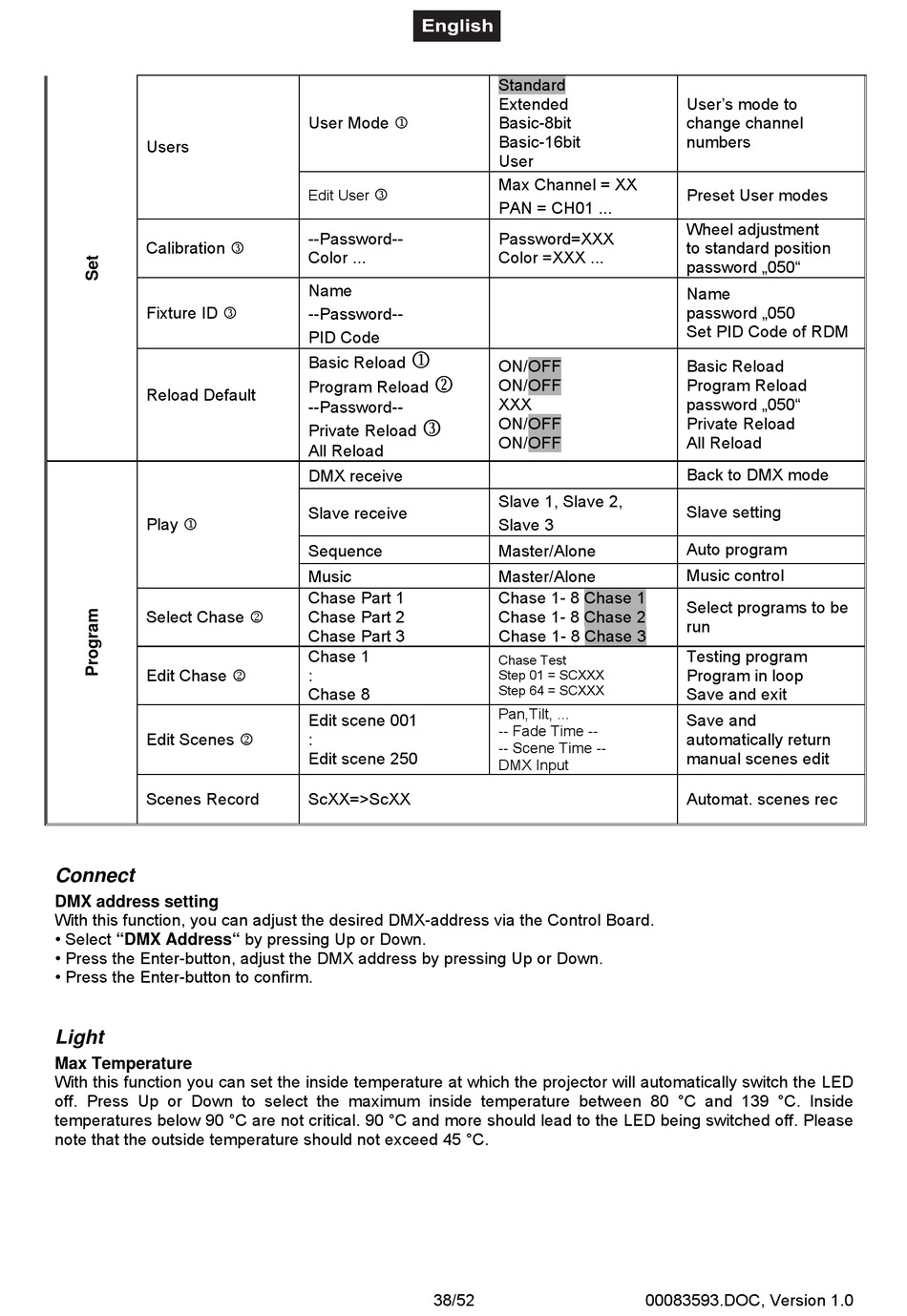

Users
Calibration
Fixture ID
Reload Default
Play
Select Chase
Edit Chase
Edit Scenes
Scenes Record
Connect
DMX address setting
With this function, you can adjust the desired DMX-address via the Control Board.
• Select "DMX Address" by pressing Up or Down.
• Press the Enter-button, adjust the DMX address by pressing Up or Down.
• Press the Enter-button to confirm.
Light
Max Temperature
With this function you can set the inside temperature at which the projector will automatically switch the LED
off. Press Up or Down to select the maximum inside temperature between 80 °C and 139 °C. Inside
temperatures below 90 °C are not critical. 90 °C and more should lead to the LED being switched off. Please
note that the outside temperature should not exceed 45 °C.
User Mode
Edit User
--Password--
Color ...
Name
--Password--
PID Code
Basic Reload
Program Reload
--Password--
Private Reload
All Reload
DMX receive
Slave receive
Sequence
Music
Chase Part 1
Chase Part 2
Chase Part 3
Chase 1
:
Chase 8
Edit scene 001
:
Edit scene 250
ScXX=>ScXX
38/52
Standard
Extended
Basic-8bit
Basic-16bit
User
Max Channel = XX
PAN = CH01 ...
Password=XXX
Color =XXX ...
ON/OFF
ON/OFF
XXX
ON/OFF
ON/OFF
Slave 1, Slave 2,
Slave 3
Master/Alone
Master/Alone
Chase 1- 8 Chase 1
Chase 1- 8 Chase 2
Chase 1- 8 Chase 3
Chase Test
Step 01 = SCXXX
Step 64 = SCXXX
Pan,Tilt, ...
-- Fade Time --
-- Scene Time --
DMX Input
00083593.DOC, Version 1.0
User's mode to
change channel
numbers
Preset User modes
Wheel adjustment
to standard position
password „050"
Name
password „050
Set PID Code of RDM
Basic Reload
Program Reload
password „050"
Private Reload
All Reload
Back to DMX mode
Slave setting
Auto program
Music control
Select programs to be
run
Testing program
Program in loop
Save and exit
Save and
automatically return
manual scenes edit
Automat. scenes rec
