OPERATION VIA DIP SWITCHES

STAND ALONE-OPERATION

The LED PAR-64 Spot can be operated without a controller.

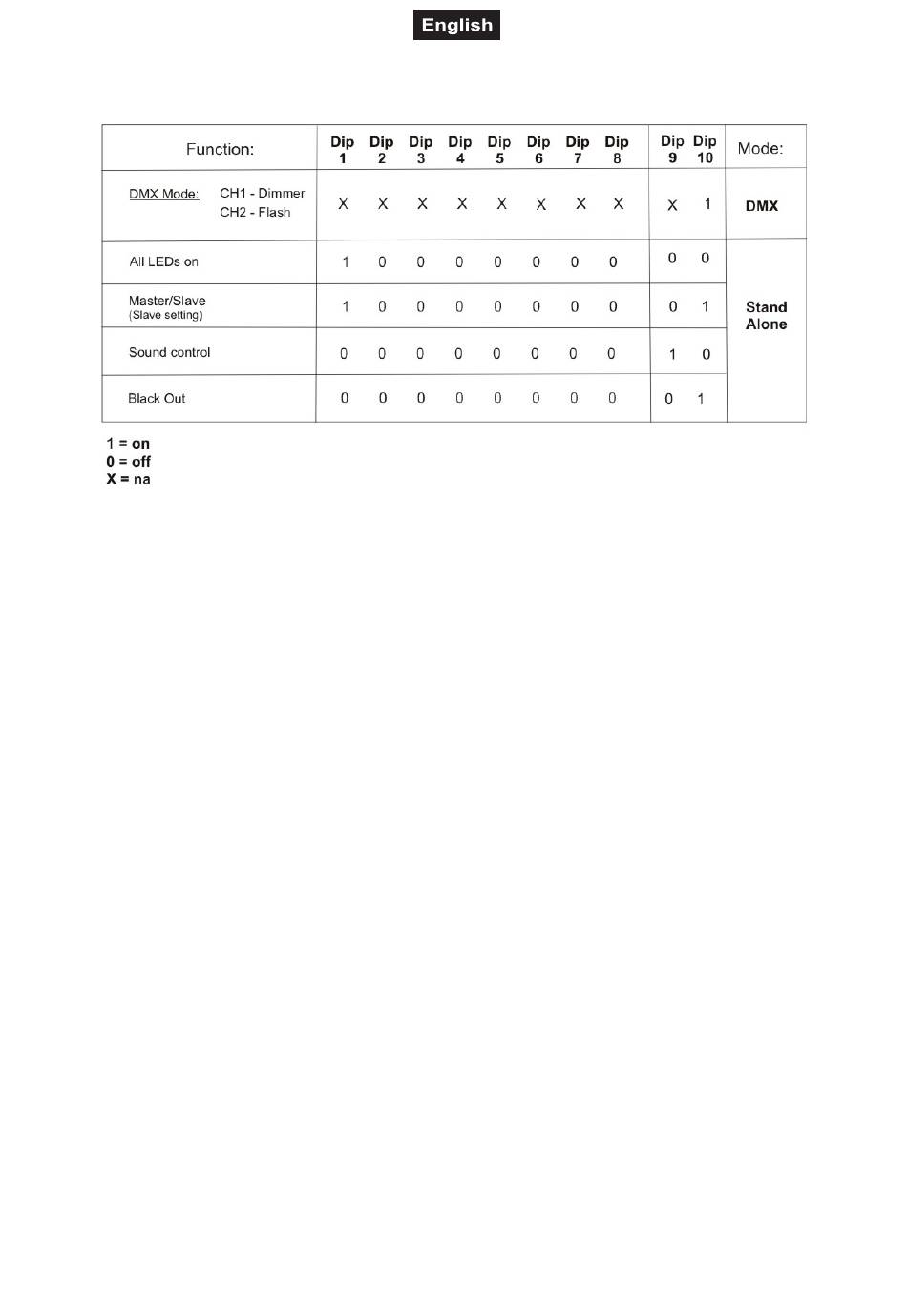

In order to select STATIC WHITE, set dip switch 1 to ON and dip switches 2 to 10 to OFF.
In order to select MASTER /SLAVE, set DIP Switch 10 to OFF in order to determine the Master device. Set
DIP Switch 1 and 10 to ON in order to determine the Slave device..
In order to select SOUND CONTROL, set dip switch 9 to ON and dip switches 1 to 8 and 10 to OFF.
In order to select BLACKOUT, set dip switch 10 to ON and dip switches 1 to 9 to OFF.

DMX-CONTROLLED OPERATION

You can control the devices individually via your DMX-controller. Every DMX-channel has a different
occupation with different features.

Addressing the device

Set dip switch 10 to ON.
Dip switches 1 - 9 set the DMX address.
Each device occupies 2 channels. To ensure that the control signals are properly directed to each device,
the device requires addressing. This is to be adjusted for every single device by changing the DIP-switches
as set out in the table below.
The starting address is defined as the first channel from which the device will respond to the controller.
Please make sure that you do not have any overlapping channels in order to control each device correctly
and independently from any other fixture on the DMX data link. If two, three or more devices are addressed
similarly, they will work similarly.
