If your Teranex Mini is installed in a Teranex Mini Rack Shelf, you will need to remove the mini
converter from the rack shelf to access the front panel screws.
See the 'Teranex Mini Rack Shelf' section for more information.
The Teranex Mini's USB port is still accessible with the Smart Panel attached. To access the
port, simply open the rubber USB dust cover. With the Smart Panel installed, the front panel
small switches are covered up and no longer used and this is because all the switch settings
and more are now in the menu on the Teranex Smart Panel and can be set using the LCD. The
settings available will vary between Teranex Mini's because the features are different between
models, but navigation layout on screen is the same, so it's easy to move between models to
make changes to settings.
Refer to the 'changing settings' section for information on changing settings using an optional
Teranex Mini Smart Panel. The original basic panel is very strong, so if you need to mount your
Teranex Mini in the back of a rack system or in areas where there are lots of cables or activity,
you can always reinstall the original basic panel.

Smart Panel Features

LCD Display

The home screen is the first feature you'll see on your Teranex Mini Smart Panel's LCD display.
The home screen shows you important information, including:
MENU
01:23:47:08
VIDEO
AUDIO

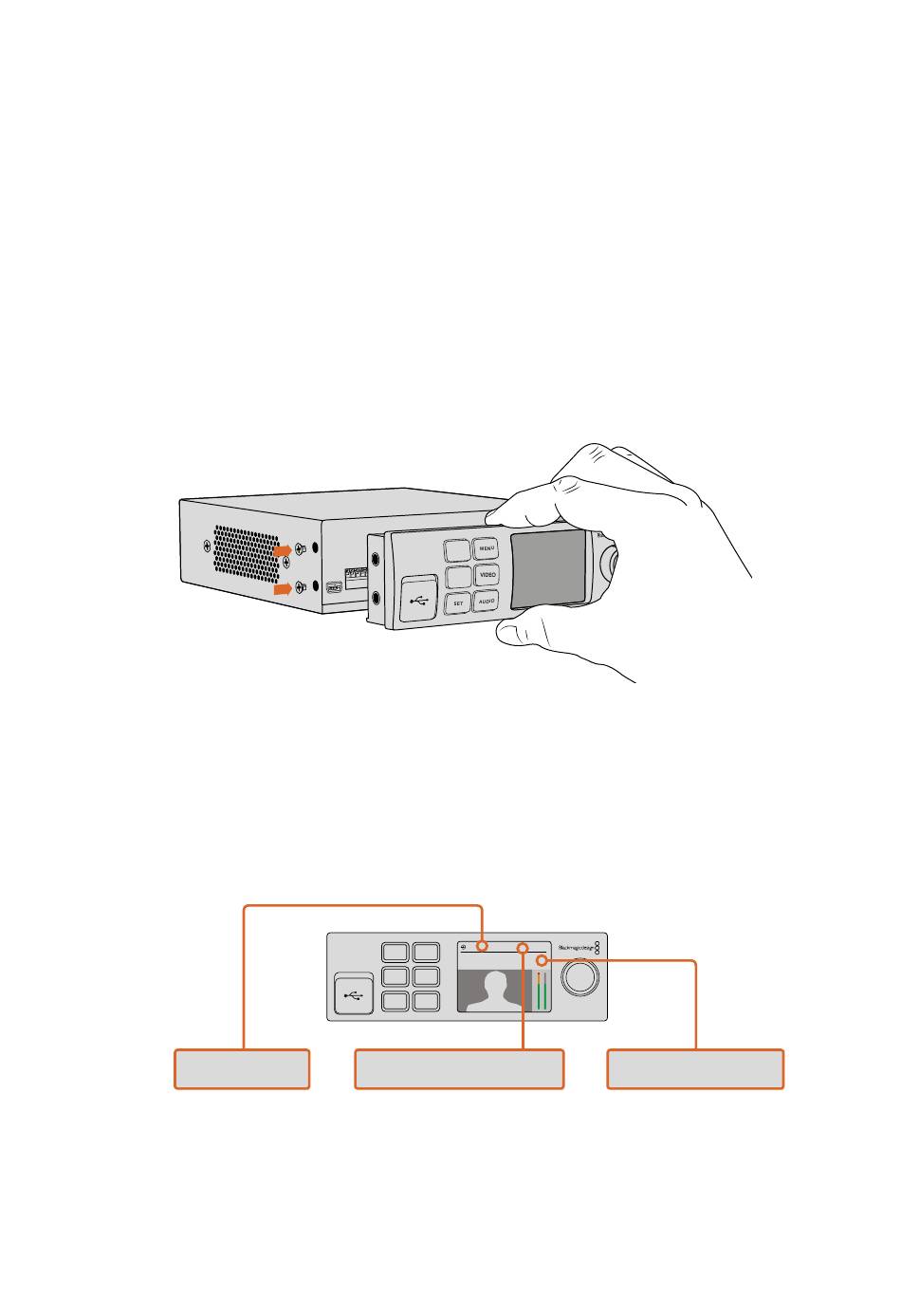

When installing the Teranex Mini Smart Panel to your Teranex Mini, holding the panel with
your fingers and thumb aligned with the panel's rear connector will help guide it into place.
2160p59.94 2160p59.94 SDI to Analog 12G
01:23:47:08
Input video format – The
format and frame rate
of your video source
connected to your
Teranex Mini converter.
1
2
2160p59.94 SDI to Analog 12G
1 MENU
01:23:47:08
2 VIDEO
SET AUDIO
1
SDI to Analog 12G
2
Converter model – The model of
Teranex Mini converter currently
connected to the Teranex Mini
SET
Smart Panel.
2160p59.94
MENU
01:23:47:08
VIDEO
Timecode – The timecode
embedded in the video
input, or external timecode
AUDIO
via the Teranex mini
converter's XLR connector.
Installing Administration Software
SDI to Analog 12G
