Teranex Mini Smart Panel Settings
If you have installed the optional Teranex Mini Smart Panel on your HDMI to Optical 12G
converter, the following menus will be available - 'video,' 'audio,' and 'network.' The settings
available in these menus are identical to those detailed in the section above.
For more information on changing settings using the Teranex Mini Smart Panel, refer to the
'changing settings section in this manual.
Using Teranex Mini Smart Panel gives you access to
the same settings as Blackmagic Teranex Setup.

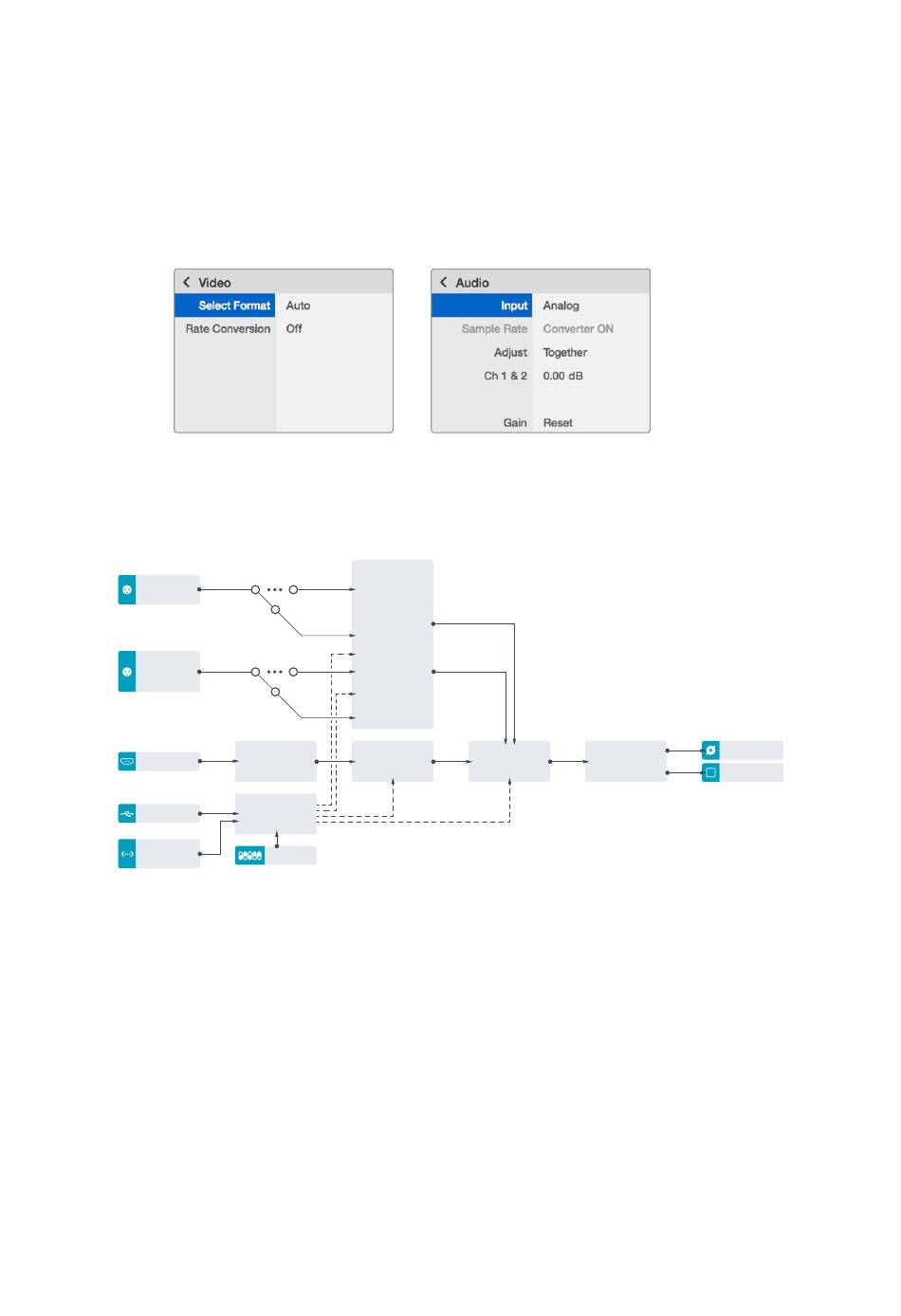

Teranex Mini HDMI to Optical 12G Block Diagram
Analog or AES/EBU
Audio Switch
Left Analog In
or AES/EBU 1+2
Analog or AES/EBU
Audio Switch
Right Analog In
or AES/EBU 3+4
or Timecode
HDMI Video and
HDMI In
Audio Decoder
Central
USB
Processor and
USB
Firmware
Ethernet
Mini Switches
with Power

Teranex Mini - Optical to Analog 12G

Your Teranex Mini - Optical to Analog 12G lets you convert from SD SDI, HD-SDI, 3G-SDI,
6G-SDI and 12G-SDI and Optical fiber input sources to analog component, NTSC and PAL video
out, plus balanced AES/EBU and analog audio out. The built in down converter lets you connect
12G-SDI video via BNC or optical fiber inputs to SD and HD analog equipment and easily
connects to video monitors and decks such as Betacam SP and VHS. You can even output
pairs of analog audio from 16 de-embedded SDI and optical audio channels.
AES/EBU Sample
Rate Converter
Audio Analog to
Digital from
Balanced Input
Customizable SDI Audio
Video Processor Embedder
SDI Out
Automatic
SD/HD/6G/12G-SDI
Cable Driver
Optical Out
Teranex Mini - Optical to Analog 12G 62 62
