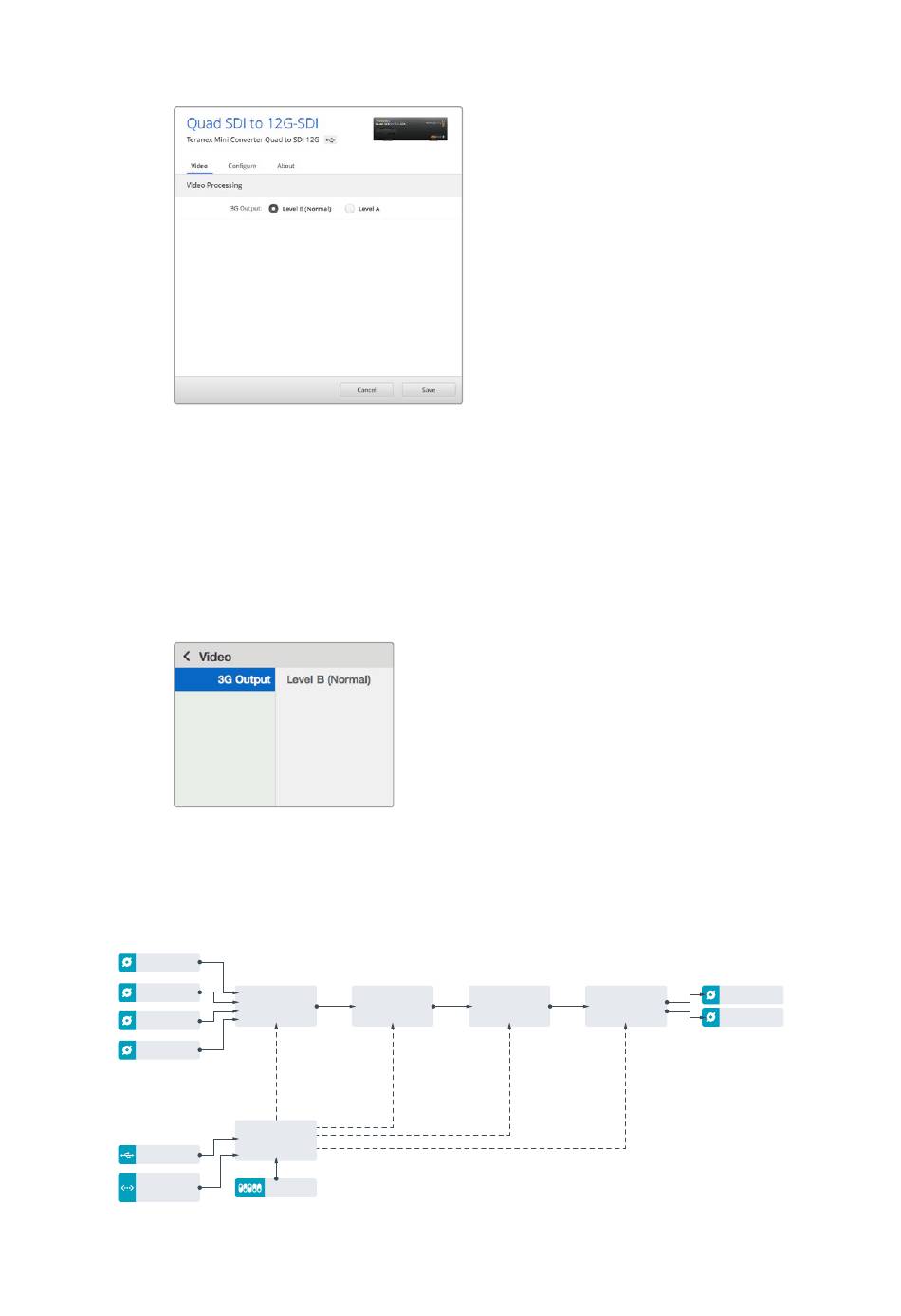

Adjust your SDI output settings using the 'video'
settings page in Blackmagic Teranex Setup
Teranex Mini Smart Panel Settings
The 'video' and 'network' settings can be changed from the front panel if you have the
optional Teranex Mini Smart Panel installed. The settings available in these menus are
identical to those detailed in the 'Blackmagic Teranex Setup settings' section above. For
more information on changing settings using the Teranex Mini Smart Panel, refer to the
'changing settings' section in this manual.
Using Teranex Mini Smart Panel
gives you access to the same settings
as Blackmagic Teranex Setup.
Teranex Mini Quad SDI to 12G-SDI Block Diagram
Input automatically
detects between
SDI IN 1
SD/HD/6G/12G-SDI
SDI IN 2
SDI
Multiplex
SDI IN 3
SDI IN 4
Central Processor
and Firmware
USB
Ethernet
Mini Switches
with Power
Equalizer,
Customiszable
Re-Clocker and
Video Processor
10 bit De-Serializer
SDI Out
Automatic
SD/HD/6G/12G-SDI
Cable Driver
SDI Out
Teranex Mini - Quad SDI to 12G-SDI 50 50
