Audio Input Menu
This menu allows you to select between analog, AES/EBU, and timecode audio inputs, as well
as which channels of your SDI or optical audio output you wish to embed these into. You can
also adjust the gain on the audio signal.
Selecting AES/EBU allows the additional option of checking 'sample rate conversion.' When this
is selected, the sample rate of your SDI or optical audio output will be up or down converted to
24-bit, 48kHz.
Your Teranex Mini will retain its last settings whether applied via switch, Smart Panel or Teranex
setup utility. If reverting to switch control after removing the Smart Panel or updating your
converter's settings via software, you may need to toggle individual switches for new settings to
take effect.
Teranex Mini Smart Panel Settings
If you have installed the optional Teranex Mini Smart Panel on your Analog to Optical 12G to
converter, the following menus will be available - 'video,' 'audio,' and 'network.' The settings
available in these menus are identical to those detailed in the 'Blackmagic Teranex Setup
settings' section above.
For more information on changing settings using the Teranex Mini Smart Panel, refer to the
'changing settings section in this manual.

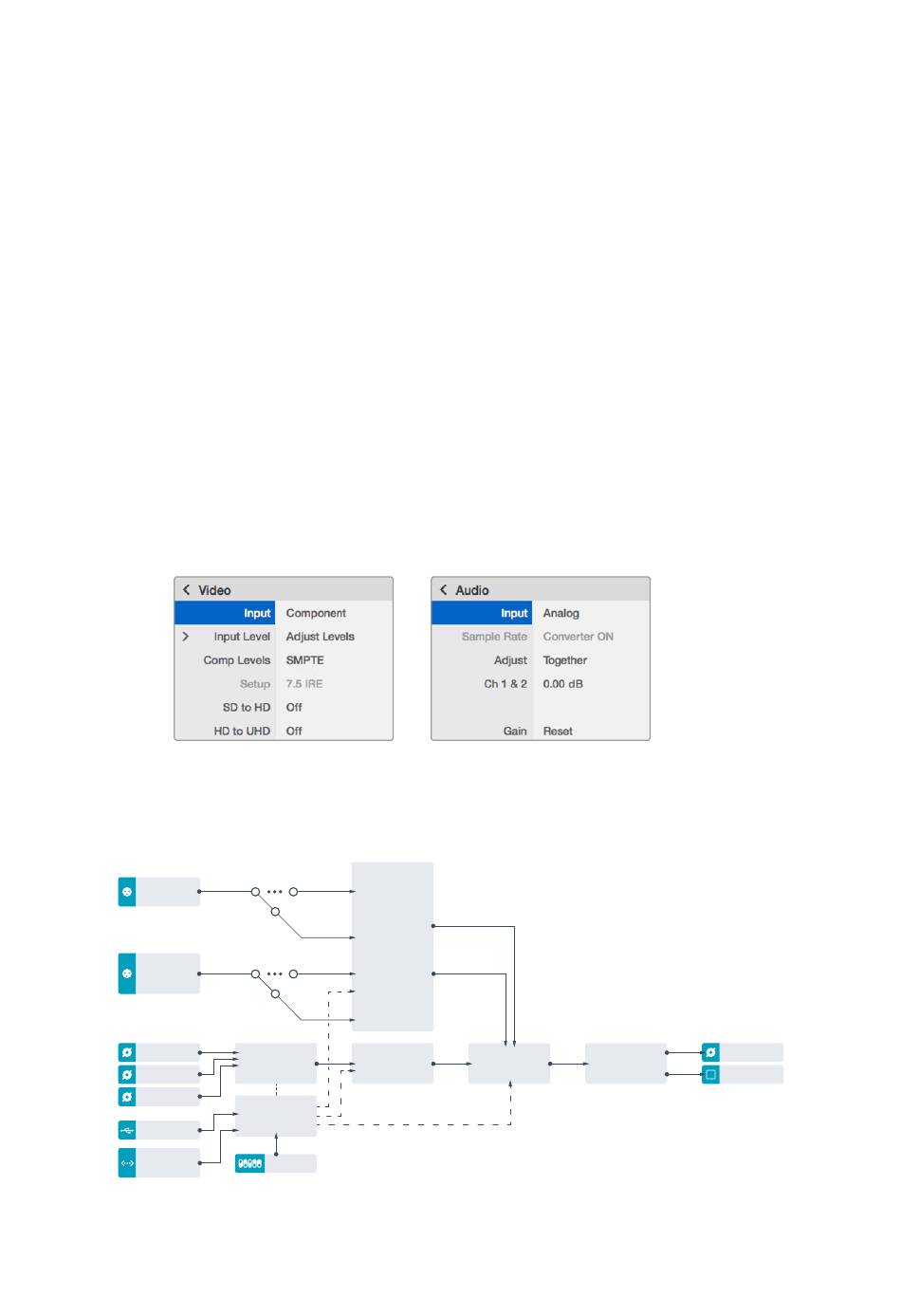

Using Teranex Mini Smart Panel gives you access to
the same settings as Blackmagic Teranex Setup.
Teranex Mini Analog to Optical 12G Block Diagram
Analog or AES/EBU
Audio Switch
Left Analog In
or AES/EBU 1+2
Analog or AES/EBU
Audio Switch
Right Analog In
or AES/EBU 3+4 In
or Timecode In
Y
12 Bit Digital to
Analog SD/HD
Video Converter
R-Y
B-Y
Central Processor
and Firmware
USB
Ethernet
Mini Switches
with Power
AES/EBU Sample
Rate Converter
Audio Analog to
Digital from
Balanced Input
Customizable
SDI Audio
Video Processor Embedder
Component input can switch to
S-Video and Composite
SDI Out
Automatic
SD/HD/6G/12G-SDI
Cable Driver
Optical Out
Teranex Mini - Analog to Optical 12G 71 71
