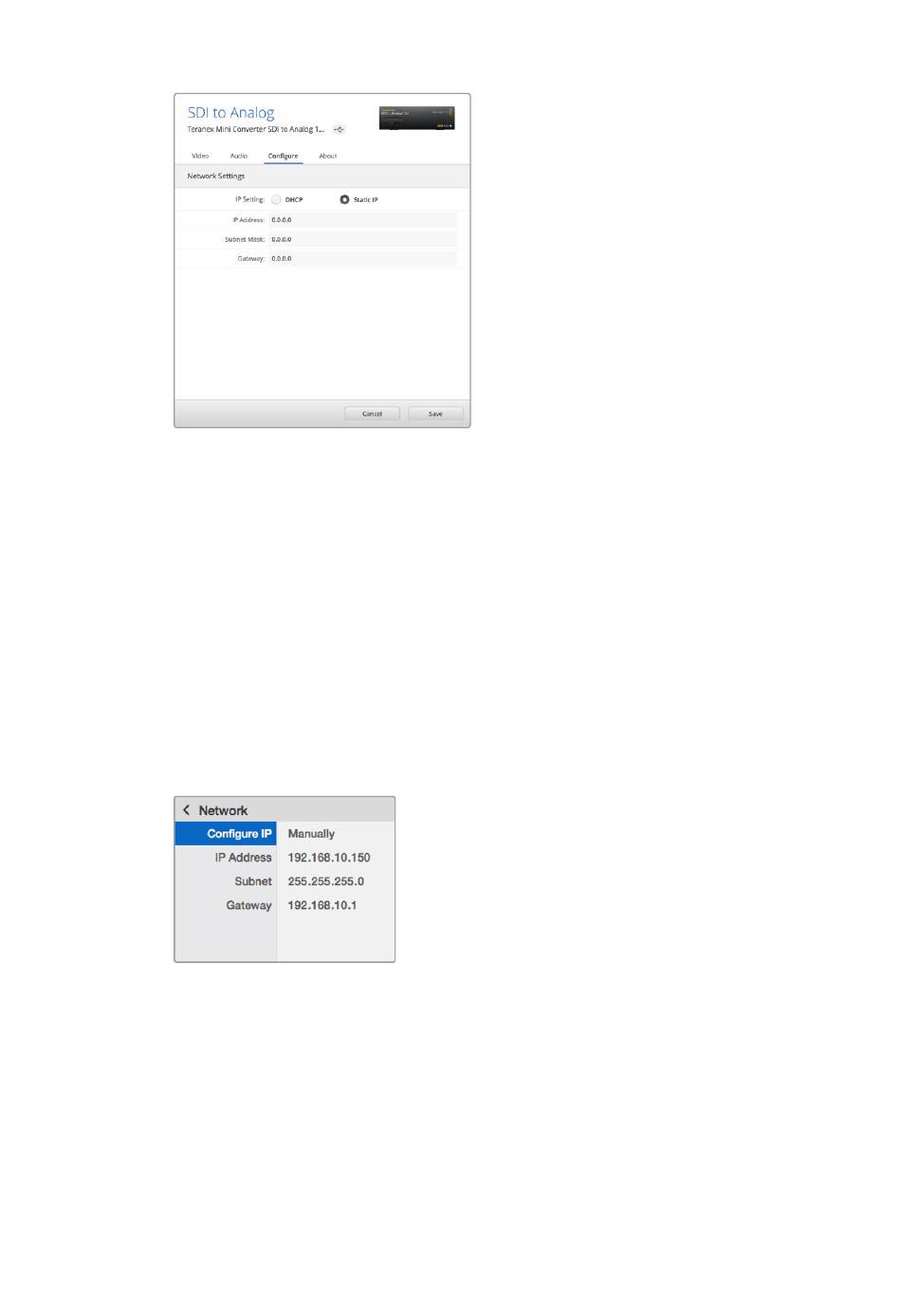

Use the 'configure' tab in Blackmagic Teranex Setup
to change network settings via USB
Changing network settings using Teranex Mini Smart Panel
A useful feature of Teranex Mini Smart Panel is locally changing network settings. To do this:
1 Press the 'menu' button to open the settings menu.
2 Select 'network' using the rotary knob or 1 and 2 buttons, and press 'set.'
3 Select 'configure IP' by using the rotary knob or 1 and 2 buttons, and press 'set.'
4 Select 'manually' by using the rotary knob or 1 and 2 buttons, and press set. Then follow
the same procedure to select 'IP address.'
5 Use the rotary knob or 1 and 2 buttons to cycle through the available numbers for your
IP address and confirm them by pressing 'set.' Repeat the procedure for 'subnet' and
'gateway' settings.
Use the network menu on Teranex Mini Smart Panel to
change network settings on your mini coverter.

Teranex Mini Rack Shelf

If you're running multiple Teranex Minis, you can use Teranex Mini Rack Shelf to install your
converters into a broadcast rack or road case. Up to three Teranex Minis can fit neatly onto
each 1RU Teranex Mini Rack Shelf. Installing your converters into a Teranex Mini Rack Shelf is as
easy as removing your converter's rubber feet, if installed, and screwing each converter into the
base of the shelf using the mounting holes on bottom of your converters. The Teranex Mini
Rack Shelf ships with two original blank panels which you can use to cover gaps if you don't
need to install additional Teranex Minis.
Teranex Mini Rack Shelf 13 13
