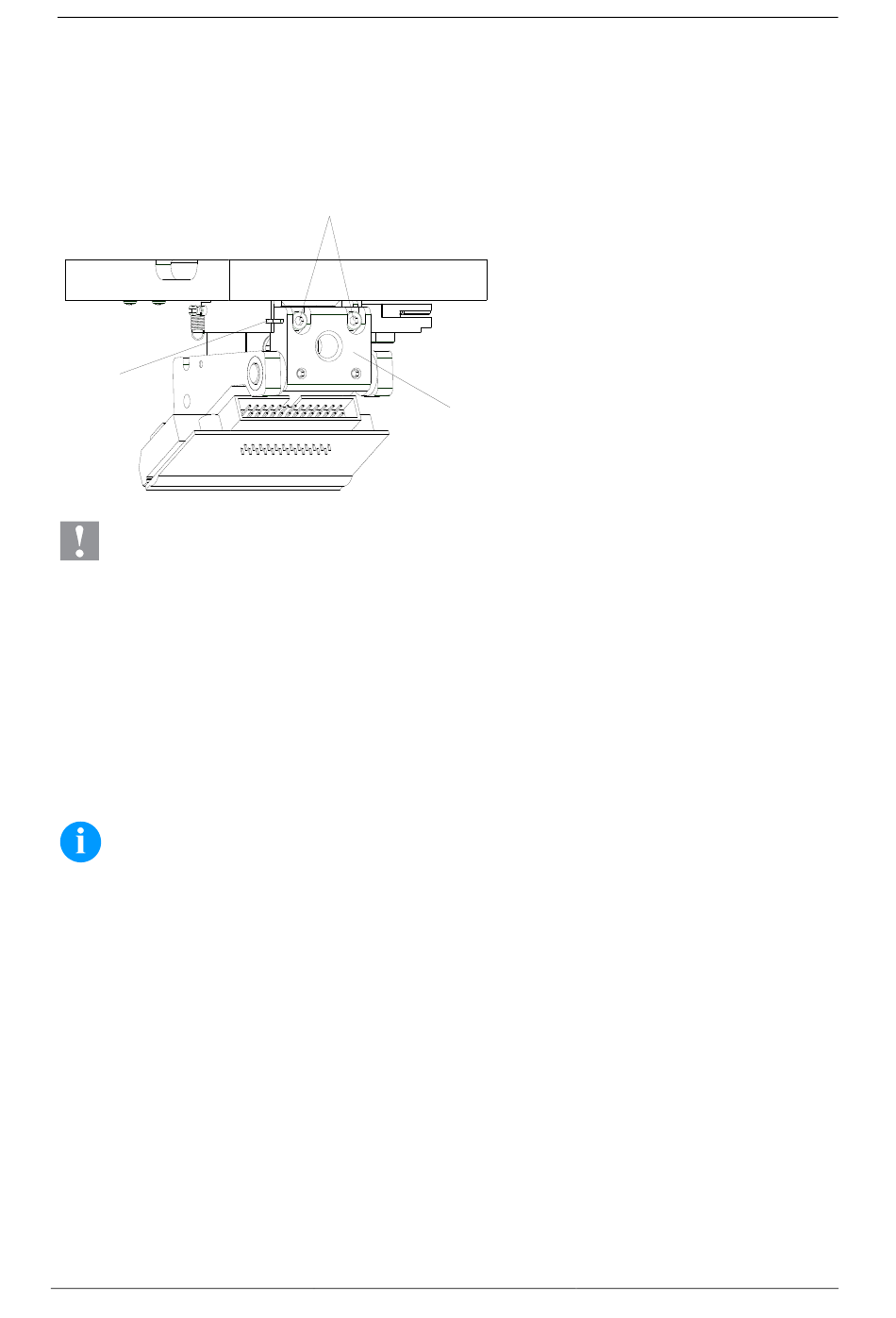

Angle Adjustment (Intermittent Mode)
The installation angle of the printhead is default 26° to the print surface. However, manufacturing tolerances of the printhead
and mechanics can require another angle.
B
CAUTION!
Damage of printhead by unequal use!
Higher wastage of ribbon by faster ripping.

Only change the factory settings in exceptional cases.
•
Loosen slightly two Allen head screws (A).
•
Move the adjusting part (B) to adjust the angle between the printhead and printhead support.
move downwards
move upwards
•
Tighten again the Allen head screws (A).
•
Start a print order with approx. three layouts to check the correct unwrinkled ribbon run.
NOTICE!
The slots (C) serve for position control. Pay attention to a parallel adjustment.
A
= decrease angle
= increase angle
C
