Installation instructions, only for experts

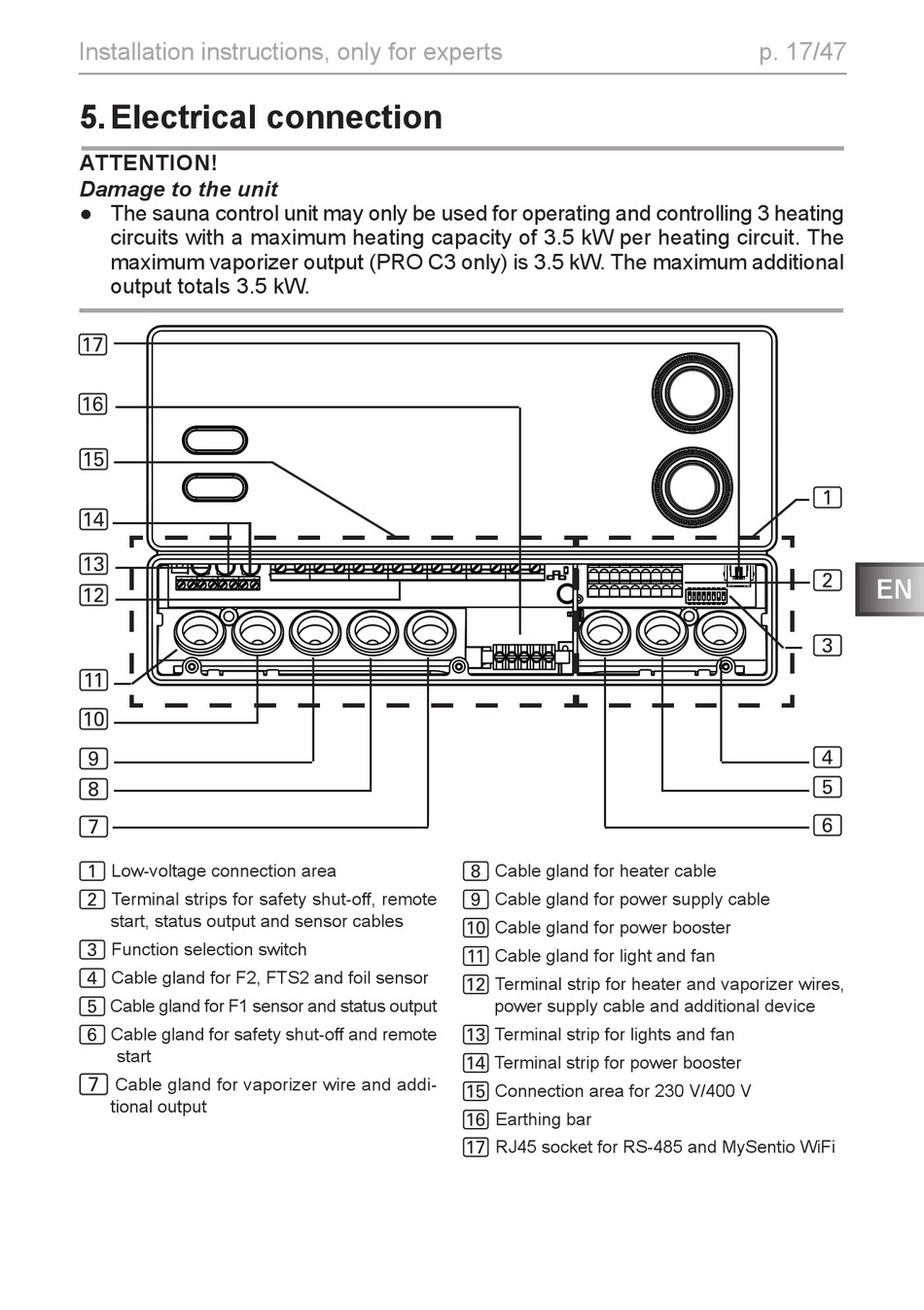

5. Electrical connection

ATTENTION!
Damage to the unit
● The sauna control unit may only be used for operating and controlling 3 heating
circuits with a maximum heating capacity of 3.5 kW per heating circuit. The
maximum vaporizer output (PRO C3 only) is 3.5 kW. The maximum additional
output totals 3.5 kW.
h
g
f
e
d
c
b
a
9
8
7
Low-voltage connection area
1
Terminal strips for safety shut-off, remote
2
start, status output and sensor cables
Function selection switch
3
Cable gland for F2, FTS2 and foil sensor
4
Cable gland for F1 sensor and status output
5
Cable gland for safety shut-off and remote
6
start
Cable gland for vaporizer wire and addi-
7
tional output
Cable gland for heater cable
8
Cable gland for power supply cable
9
Cable gland for power booster
a
Cable gland for light and fan
b
Terminal strip for heater and vaporizer wires,
c
power supply cable and additional device
Terminal strip for lights and fan
d
Terminal strip for power booster
e
Connection area for 230 V/400 V
f
Earthing bar
g
RJ45 socket for RS-485 and MySentio WiFi
h
p. 17/47
1
2
EN
3
4
5
6
