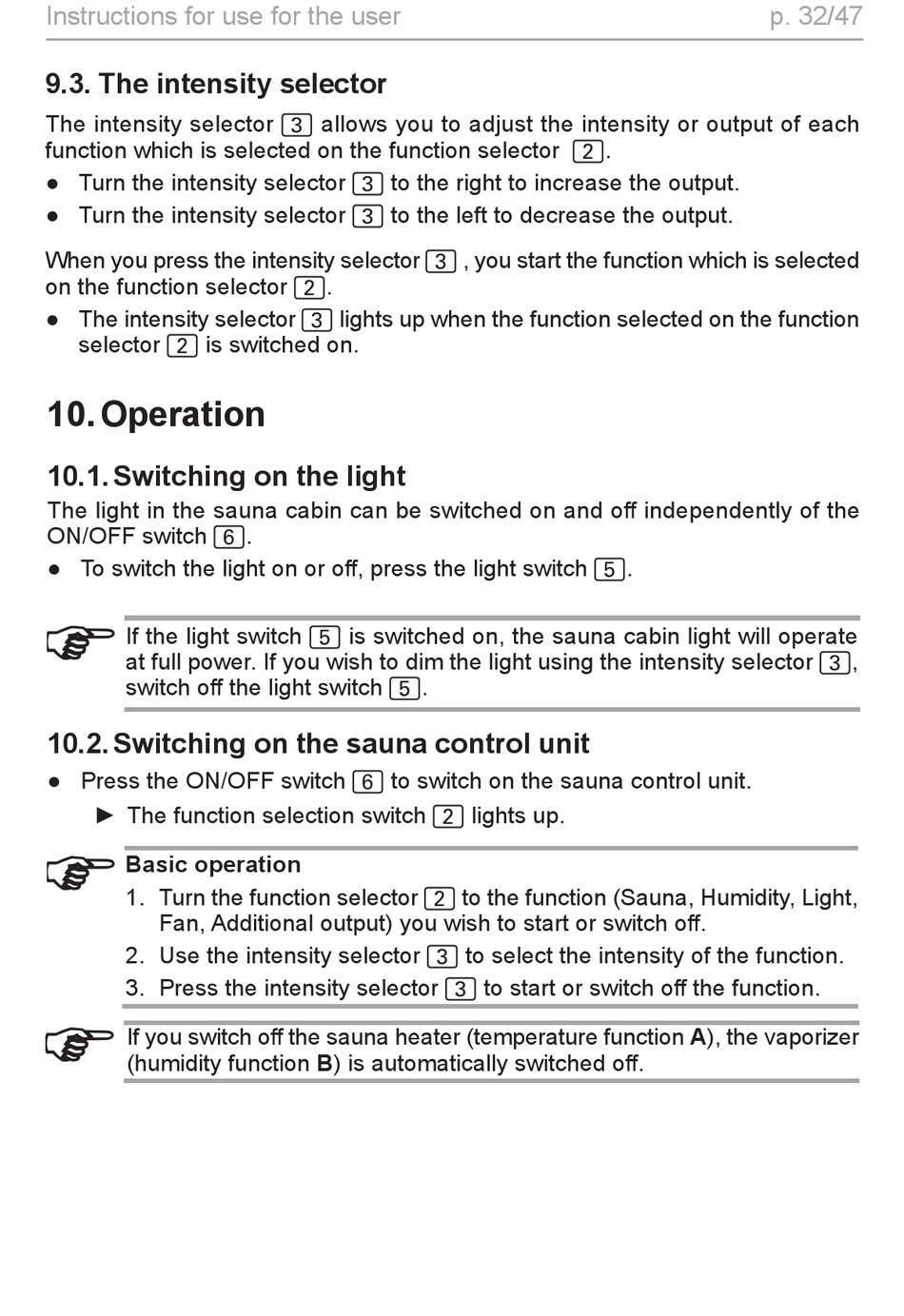

Instructions for use for the user

9.3. The intensity selector

The intensity selector 3 allows you to adjust the intensity or output of each
function which is selected on the function selector 2.
● Turn the intensity selector 3 to the right to increase the output.
● Turn the intensity selector 3 to the left to decrease the output.
When you press the intensity selector 3 , you start the function which is selected
on the function selector 2.
● The intensity selector 3 lights up when the function selected on the function
selector 2 is switched on.

10. Operation

10.1. Switching on the light

The light in the sauna cabin can be switched on and off independently of the
ON/OFF switch 6.
● To switch the light on or off, press the light switch 5.
If the light switch 5 is switched on, the sauna cabin light will operate
at full power. If you wish to dim the light using the intensity selector 3,
switch off the light switch 5.

10.2. Switching on the sauna control unit

● Press the ON/OFF switch 6 to switch on the sauna control unit.
► The function selection switch 2 lights up.
Basic operation
1. Turn the function selector 2 to the function (Sauna, Humidity, Light,
Fan, Additional output) you wish to start or switch off.
2. Use the intensity selector 3 to select the intensity of the function.
3. Press the intensity selector 3 to start or switch off the function.
If you switch off the sauna heater (temperature function A), the vaporizer
(humidity function B) is automatically switched off.
p. 32/47
