Sentiotec PRO C2 Montage- Und Gebrauchsanweisungen Seite 14

Installation instructions, only for experts
To install the sauna control unit, perform the following steps:
1. Screw two cross-head screws (16 mm) into the wall of the sauna at a height
of approx. 1.70 m and leaving a protruding length of 7 mm. The two screws
must be placed at a distance of 145 mm from each other (see Fig.1).
80
40

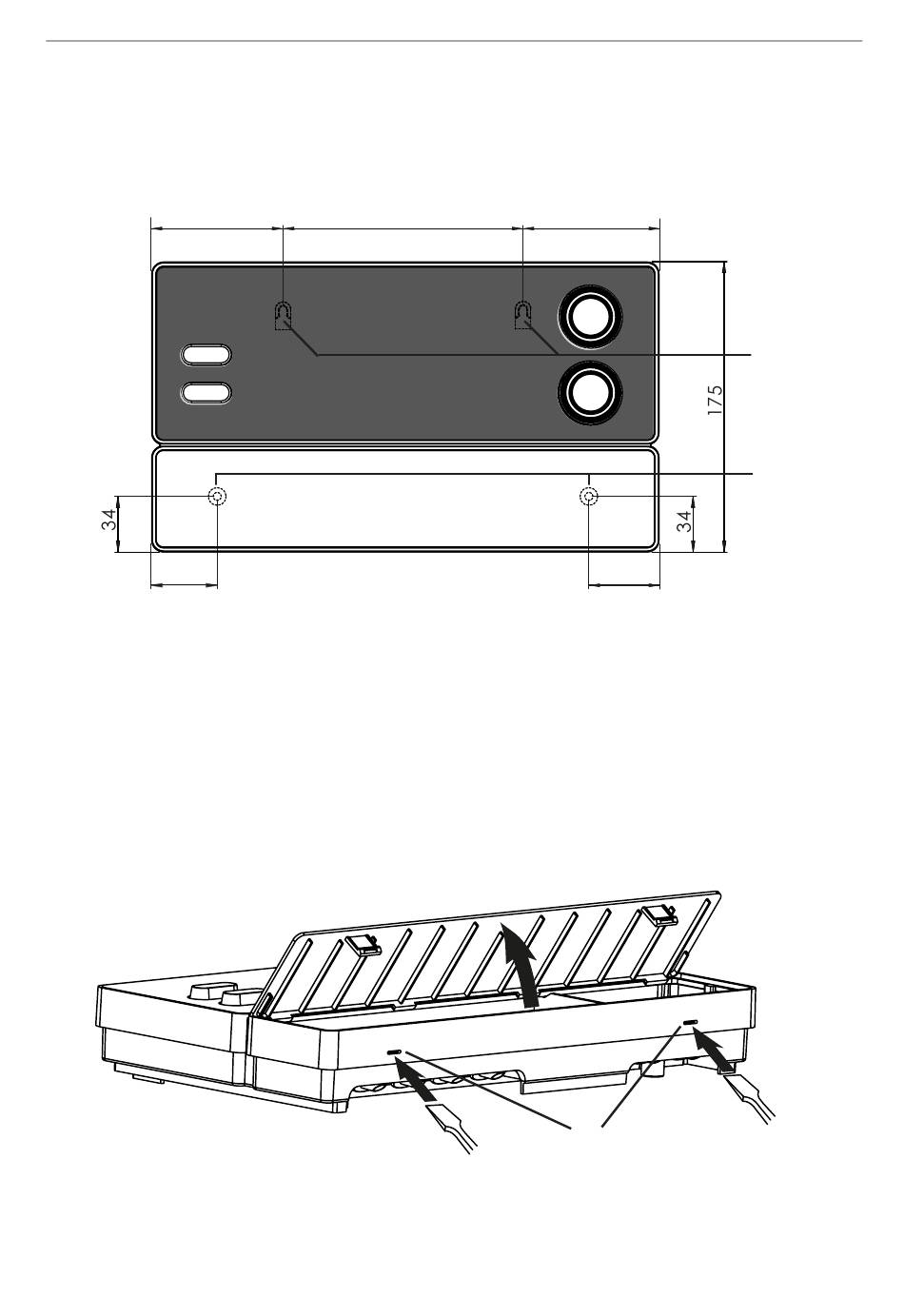

Fig.1 Position of the attachment device and the installation holes
(dimensions in mm)
2. Press the clip locks C in lightly using a screwdriver and remove the cover
from the housing (see Fig.2).
3. Fasten the sauna control unit onto the cross-head screws using the attach-
ment device A as an aid (see Fig.1).
4. Screw two cross-head screws (16 mm) into the lower fastening holes B
(see Fig.1).
Fig.2 Removing the cover from the housing
145 82
43
C
p. 14/47
A
B
