EN

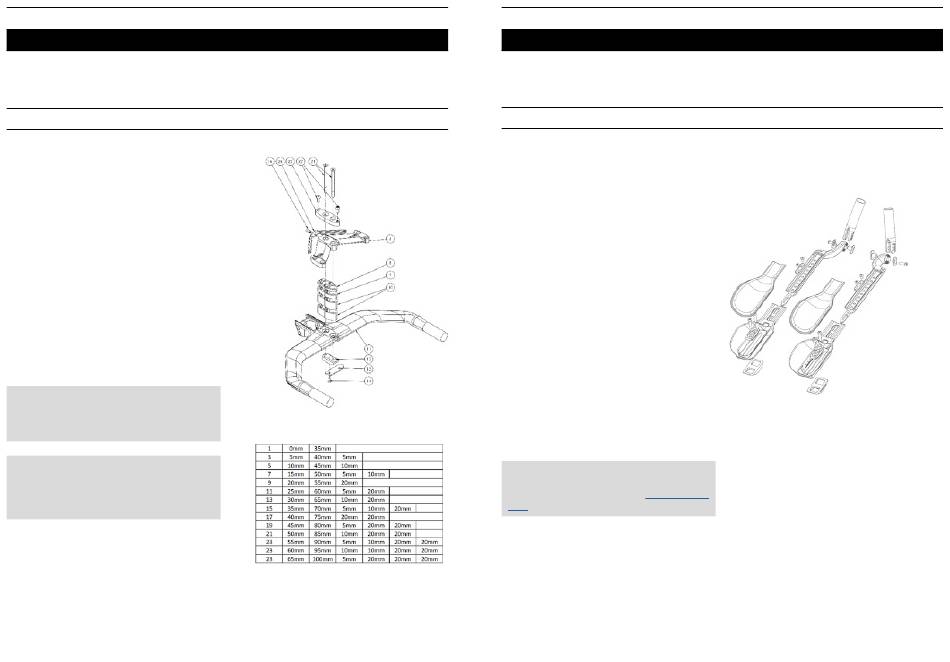

EXTENSION BRIDGE ASSEMBLY
1 - Fit the basebar onto the steerer tube.
2 - Insert the required number of riser spacers
(8/9/10).
3 - Position the extension bridge (6).
If you wish to install a bottle holder, install the bottle
holder support (23) and your bottle holder using the
screws provided (22), tightened to a torque of 3Nm.
4 - Fit the mounting bracket (12) then tighten the
screws (21) to a torque of 8 Nm.
5 - Route the cables and install the V-shaped cable
cover (24) and the basebar routing cover (13), then
tighten the screws (14) to a torque of 3Nm.
IMPORTANT : If dismantling/reassembling,
apply a drop of medium threadlocker (such as
LOCTITE 243™) to each screw.
NOTE : Please refer to the table for the correct
screw length (21). Please note that the table
does not take into account the height of the bottle
holder (23).
# Height Length Spacers
BRIDGE Screw
EXTENSION BAR ASSEMBLY
Aergo Bar Assembly (applies to both sides):
1 - Place the grip on the end of the extension bar.
2 - Position the nut and support plate, then tighten
the screws to 8Nm.
3 - Fit the computer mount if you wish, then
insert the unit into the armrest.
4 - Position the lower plate in the triangular recess
in the armrest
5 - Position the upper plate according to the required
position and tighten the screws to a torque of 8Nm.
6 - Follow the instructions below to mount the Aergo
bars on the bike.
IMPORTANT : For more information on fitting
and adjusting the Aergo bars, please refer to the
Aergo manual on our website www.lookcycle.
com.
