perma-trade solvent primus 2.1 Bedienungsanleitung Seite 68

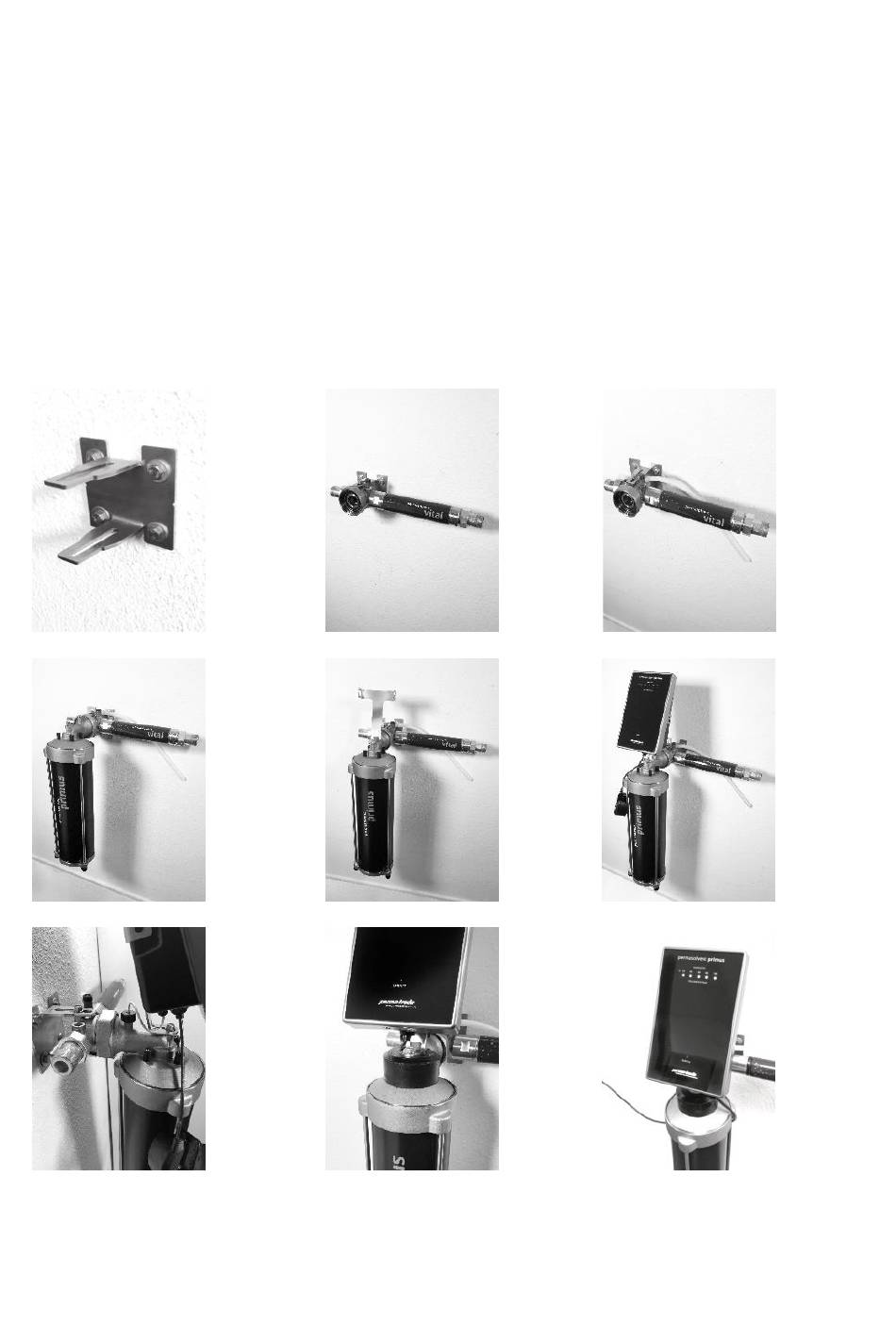

39. Mounting the venting hose: Attach the enclosed venting hose to the venting valve
(Abbildung 3).
40. Mounting pressure body incl. active unit and head: Fasten the assembly to the connection
piece via the thread on the head using the union nut (Abbildung 4).
41. Mounting the electronics holder: Guide the electronics holder enclosed with the electronics
over the functional contour on the head and screw it on with the M8 screw (Abbildung 5).
42. Mounting the electronics: Hook the electronics into the electronics holder (Abbildung 6).
Insert the Hall sensor into the Hall sensor receptacle behind the electronics holder and seal
hand-tight with the union nut (Abbildung 7).
43. Assembly of four-pole plug: Insert the four-pole plug into the contact pins protruding from
the head (Abbildung 8).
Figure 1
Figure 4
Figure 7
Figure 2
Figure 5
Illustration 8
68
Figure 3
Illustration 6
Illustration 9
