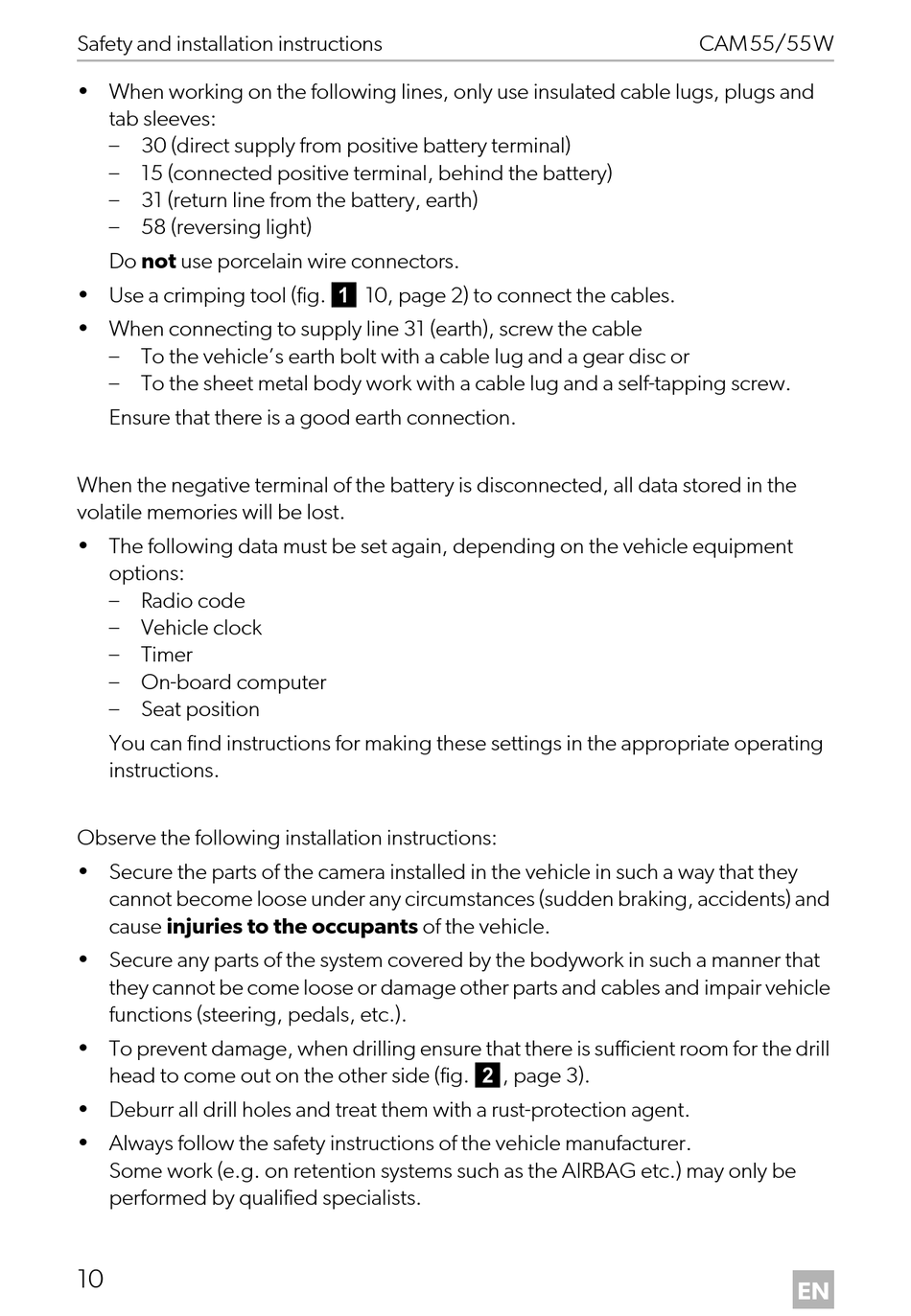

Safety and installation instructions
• When working on the following lines, only use insulated cable lugs, plugs and
tab sleeves:
– 30 (direct supply from positive battery terminal)
– 15 (connected positive terminal, behind the battery)
– 31 (return line from the battery, earth)
– 58 (reversing light)
Do not use porcelain wire connectors.
• Use a crimping tool (fig. 1 10, page 2) to connect the cables.
• When connecting to supply line 31 (earth), screw the cable
– To the vehicle's earth bolt with a cable lug and a gear disc or
– To the sheet metal body work with a cable lug and a self-tapping screw.
Ensure that there is a good earth connection.
When the negative terminal of the battery is disconnected, all data stored in the
volatile memories will be lost.
• The following data must be set again, depending on the vehicle equipment
options:
– Radio code
– Vehicle clock
– Timer
– On-board computer
– Seat position
You can find instructions for making these settings in the appropriate operating
instructions.
Observe the following installation instructions:
• Secure the parts of the camera installed in the vehicle in such a way that they
cannot become loose under any circumstances (sudden braking, accidents) and
cause injuries to the occupants of the vehicle.
• Secure any parts of the system covered by the bodywork in such a manner that
they cannot be come loose or damage other parts and cables and impair vehicle
functions (steering, pedals, etc.).
• To prevent damage, when drilling ensure that there is sufficient room for the drill
head to come out on the other side (fig. 2, page 3).
• Deburr all drill holes and treat them with a rust-protection agent.
• Always follow the safety instructions of the vehicle manufacturer.
Some work (e.g. on retention systems such as the AIRBAG etc.) may only be
performed by qualified specialists.
