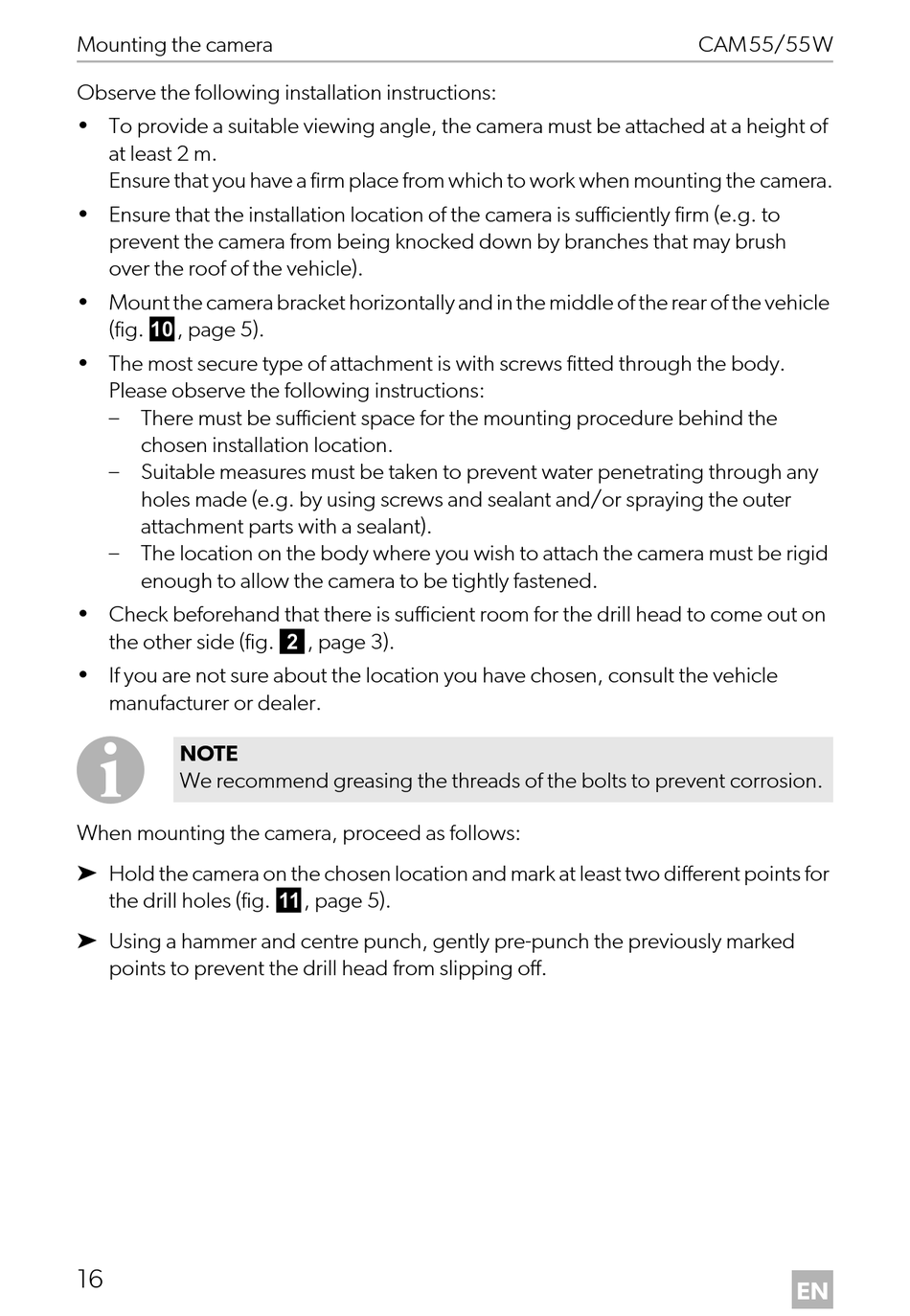

Mounting the camera
Observe the following installation instructions:
• To provide a suitable viewing angle, the camera must be attached at a height of
at least 2 m.
Ensure that you have a firm place from which to work when mounting the camera.
• Ensure that the installation location of the camera is sufficiently firm (e.g. to
prevent the camera from being knocked down by branches that may brush
over the roof of the vehicle).
• Mount the camera bracket horizontally and in the middle of the rear of the vehicle
(fig. 0, page 5).
• The most secure type of attachment is with screws fitted through the body.
Please observe the following instructions:
– There must be sufficient space for the mounting procedure behind the
chosen installation location.
– Suitable measures must be taken to prevent water penetrating through any
holes made (e.g. by using screws and sealant and/or spraying the outer
attachment parts with a sealant).
– The location on the body where you wish to attach the camera must be rigid
enough to allow the camera to be tightly fastened.
• Check beforehand that there is sufficient room for the drill head to come out on
the other side (fig. 2, page 3).
• If you are not sure about the location you have chosen, consult the vehicle
manufacturer or dealer.
I
NOTE
We recommend greasing the threads of the bolts to prevent corrosion.
When mounting the camera, proceed as follows:
➤ Hold the camera on the chosen location and mark at least two different points for
the drill holes (fig. a, page 5).
➤ Using a hammer and centre punch, gently pre-punch the previously marked
points to prevent the drill head from slipping off.
