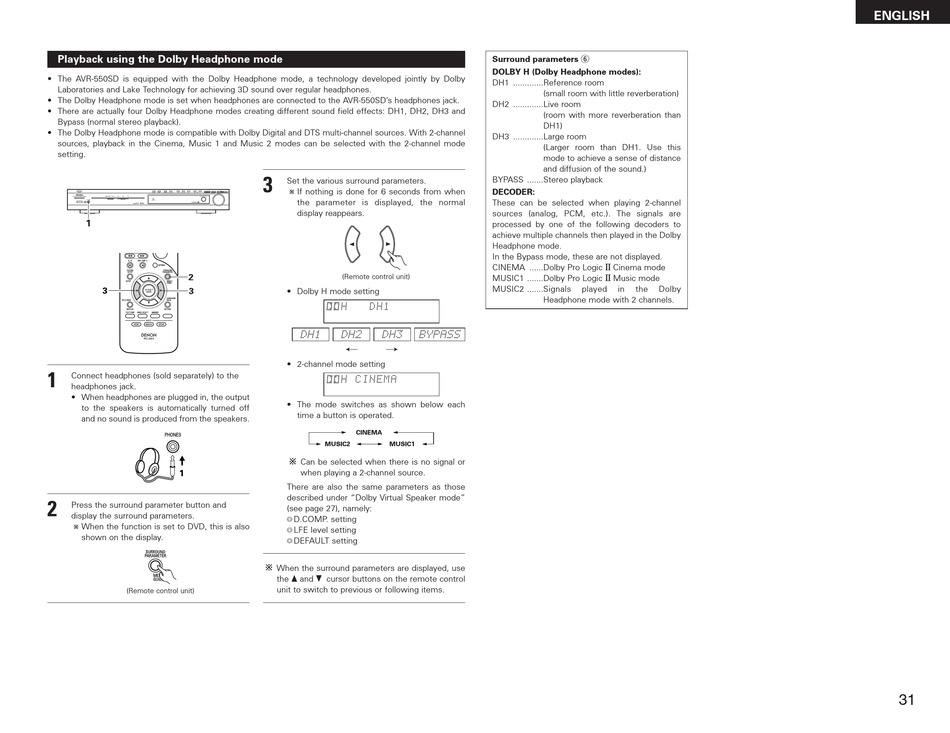

Playback using the Dolby Headphone mode

• The AVR-550SD is equipped with the Dolby Headphone mode, a technology developed jointly by Dolby
Laboratories and Lake Technology for achieving 3D sound over regular headphones.
• The Dolby Headphone mode is set when headphones are connected to the AVR-550SD's headphones jack.
• There are actually four Dolby Headphone modes creating different sound field effects: DH1, DH2, DH3 and
Bypass (normal stereo playback).
• The Dolby Headphone mode is compatible with Dolby Digital and DTS multi-channel sources. With 2-channel
sources, playback in the Cinema, Music 1 and Music 2 modes can be selected with the 2-channel mode
setting.
1
2
3 3
1
Connect headphones (sold separately) to the
headphones jack.
• When headphones are plugged in, the output
to the speakers is automatically turned off
and no sound is produced from the speakers.
PHONES
1
2
Press the surround parameter button and
display the surround parameters.
When the function is set to DVD, this is also
shown on the display.
(Remote control unit)
3
Set the various surround parameters.
If nothing is done for 6 seconds from when
the parameter is displayed, the normal
display reappears.
(Remote control unit)
• Dolby H mode setting
H DH1
DH1 DH2 DH3 BYPASS
, /
• 2-channel mode setting
H C INEMA
• The mode switches as shown below each
time a button is operated.
CINEMA
MUSIC2 MUSIC1
Can be selected when there is no signal or
when playing a 2-channel source.
There are also the same parameters as those
described under "Dolby Virtual Speaker mode"
(see page 27), namely:
D.COMP. setting
B
B LFE level setting
DEFAULT setting
B
When the surround parameters are displayed, use
the • and ª cursor buttons on the remote control
unit to switch to previous or following items.
Surround parameters y
DOLBY H (Dolby Headphone modes):
DH1 .............Reference room
(small room with little reverberation)
DH2 .............Live room
(room with more reverberation than
DH1)
DH3 .............Large room
(Larger room than DH1. Use this
mode to achieve a sense of distance
and diffusion of the sound.)
BYPASS .......Stereo playback
DECODER:
These can be selected when playing 2-channel
sources (analog, PCM, etc.). The signals are
processed by one of the following decoders to
achieve multiple channels then played in the Dolby
Headphone mode.
In the Bypass mode, these are not displayed.
II
CINEMA ......Dolby Pro Logic Cinema mode
II
MUSIC1 .......Dolby Pro Logic Music mode
MUSIC2 .......Signals played in the Dolby
Headphone mode with 2 channels.
