10

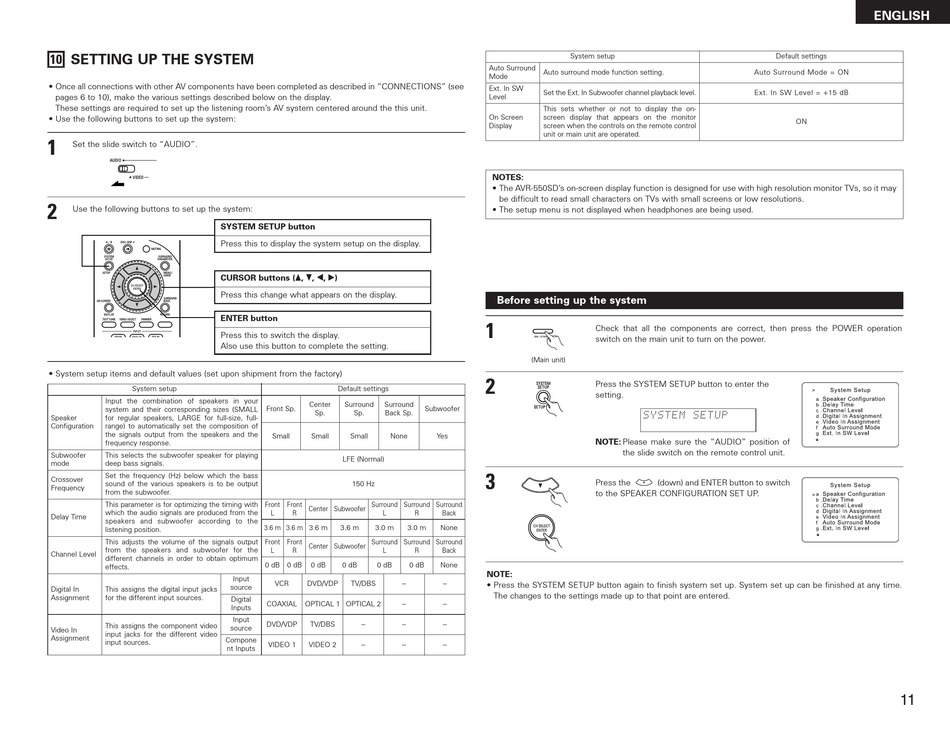

SETTING UP THE SYSTEM

• Once all connections with other AV components have been completed as described in "CONNECTIONS" (see
pages 6 to 10), make the various settings described below on the display.
These settings are required to set up the listening room's AV system centered around the this unit.
• Use the following buttons to set up the system:
1
Set the slide switch to "AUDIO".
2
Use the following buttons to set up the system:
SYSTEM SETUP button
Press this to display the system setup on the display.
CURSOR buttons (•, ª, 0, 1)
Press this change what appears on the display.
ENTER button
Press this to switch the display.
Also use this button to complete the setting.
• System setup items and default values (set upon shipment from the factory)
System setup
Input the combination of speakers in your
system and their corresponding sizes (SMALL
Speaker for regular speakers, LARGE for full-size, full-
Configuration range) to automatically set the composition of
the signals output from the speakers and the
frequency response.
Subwoofer This selects the subwoofer speaker for playing
mode deep bass signals.
Set the frequency (Hz) below which the bass
Crossover
sound of the various speakers is to be output
Frequency
from the subwoofer.
This parameter is for optimizing the timing with
which the audio signals are produced from the
Delay Time
speakers and subwoofer according to the
listening position.
This adjusts the volume of the signals output
from the speakers and subwoofer for the
Channel Level
different channels in order to obtain optimum
effects.
Digital In This assigns the digital input jacks
Assignment for the different input sources.
This assigns the component video
Video In
input jacks for the different video
Assignment
Compone
input sources.
nt Inputs
Default settings
Center Surround Surround
Front Sp.
Sp. Sp. Back Sp.
Small Small Small None
LFE (Normal)
150 Hz
Front Front Surround Surround
Center Subwoofer
L R L
3.6 m 3.6 m 3.6 m 3.6 m 3.0 m 3.0 m
Front Front Surround Surround
Center Subwoofer
L R L
0 dB 0 dB 0 dB 0 dB 0 dB 0 dB
Input
VCR DVD/VDP TV/DBS --
source
Digital
COAXIAL OPTICAL 1 OPTICAL 2 --
Inputs
Input
DVD/VDP TV/DBS -- --
source
VIDEO 1 VIDEO 2 -- --
System setup
Auto Surround
Auto surround mode function setting.
Mode
Ext. In SW
Set the Ext. In Subwoofer channel playback level.
Level
This sets whether or not to display the on-
On Screen screen display that appears on the monitor
Display screen when the controls on the remote control
unit or main unit are operated.
NOTES:
• The AVR-550SD's on-screen display function is designed for use with high resolution monitor TVs, so it may
be difficult to read small characters on TVs with small screens or low resolutions.
• The setup menu is not displayed when headphones are being used.
Before setting up the system
1
(Main unit)
2
Subwoofer
Yes
3
Surround
R Back
None
Surround
R Back
None
NOTE:
-- • Press the SYSTEM SETUP button again to finish system set up. System set up can be finished at any time.
The changes to the settings made up to that point are entered.
--
--
--
Auto Surround Mode = ON
Ext. In SW Level = +15 dB
Check that all the components are correct, then press the POWER operation
switch on the main unit to turn on the power.
Press the SYSTEM SETUP button to enter the
setting.
SYSTE M SETUP
NOTE: Please make sure the "AUDIO" position of
the slide switch on the remote control unit.
Press the (down) and ENTER button to switch
to the SPEAKER CONFIGURATION SET UP.
ENGLISH
Default settings
ON
