We greatly appreciate your purchase of the AVR-550SD.
2
2 To be sure you take maximum advantage of all the features the AVR-550SD has to offer, read these
instructions carefully and use the set properly. Be sure to keep this manual for future reference,
should any questions or problems arise.
"SERIAL NO.
PLEASE RECORD UNIT SERIAL NUMBER ATTACHED TO THE REAR OF THE
CABINET FOR FUTURE REFERENCE"
INTRODUCTION
2
Thank you for choosing the DENON AVR-550SD Digital Surround A/V receiver. This remarkable component has
been engineered to provide superb surround sound listening with AV theater sources such as DVD, as well as
providing outstanding high fidelity reproduction of your favorite music sources.
As this product is provided with an immense array of features, we recommend that before you begin hookup and
operation that you review the contents of this manual before proceeding.
TABLE OF CONTENTS
z
Before Using........................................................3
x
Cautions on Installation........................................3
c
Cautions on Handling...........................................3
v
Features ...............................................................4
b
Part Names and Functions ..............................4, 5
n
Read this First......................................................5
m
Setting up the Speaker Systems .........................5
,
Connections ................................................6 ~ 10
.
Using the Remote Control Unit .........................10
⁄0
Setting up the System ..............................11 ~ 16
⁄1
Remote Control Unit .................................16 ~ 18
CONTENTS
2
Check that the following parts are included in addition to the main unit:
AVR-550SD
q MAIN UNIT ..............................1 w Operating instructions ........1
r Remote control unit (RC-964) ..1 t R6P/AA batteries ................2
u FM indoor antenna....................1
r t
SYS-550SD
q Satellite speaker system (SC-A3L)...................4
e Active subwoofer (DSW-3L).............................1
t Cord B (3 m).....................................................3
u Anti-slip pad (4 pcs. / 1 sheet)..........................5
r t
⁄2
Operation...................................................19 ~ 22
⁄3
Surround....................................................22 ~ 28
⁄4
DSP Surround Simulation..........................28 ~ 31
⁄5
Listening to the Radio ...............................32 ~ 35
⁄6
Using the sleep timer ........................................35
⁄7
Last Function Memory.......................................36
⁄8
Initialization of the Microprocessor....................36
⁄9
Using the SYS-550SD (DHT-550SD only) .. 36 ~ 39
¤0
Additional Information ...............................40 ~ 44
¤1
Troubleshooting .................................................45
¤2
Specifications.....................................................46
List of Preset Codes ....................................311 ~ 313
e Service station list ........1
y AM loop antenna..........1
y u
w Center speaker system (SC-C3L) ..................1
r Cord A (10 m) ................................................2
y Cord C (3 m, RCA PIN) ..................................1
y u
1

BEFORE USING

Pay attention to the following before using this unit:
• Moving the set
To prevent short circuits or damaged wires in the
connection cords, always unplug the power cord
and disconnect the connection cords between all
other audio components when moving the set.
• Before turning the power switch on
Check once again that all connections are proper
and that there are not problems with the connection
cords. Always set the power switch to the standby
position before connecting and disconnecting
connection cords.
2

CAUTIONS ON INSTALLATION

Noise or disturbance of the picture may be generated if this unit or any other electronic equipment using
microprocessors is used near a tuner or TV.
If this happens, take the following steps:
• Install this unit as far as possible from the tuner or TV.
• Set the antenna wires from the tuner or TV away from this unit's power cord and input/output connection
cords.
• Noise or disturbance tends to occur particularly when using indoor antennas or 300 Ω/ohms feeder wires. We
recommend using outdoor antennas and 75 Ω/ohms coaxial cables.

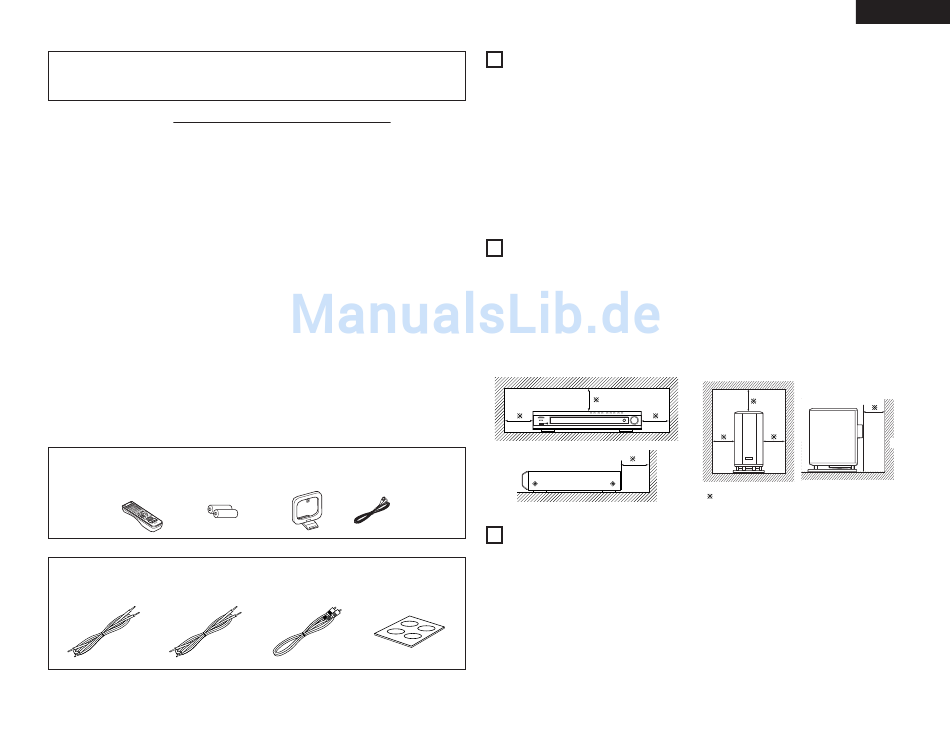

For heat dispersal, leave at least 10 cm of space between the top, back and sides of this unit and the wall
or other components.
DVD
STANDBY SIGNAL DETECT OUTPUT AUTO PCM DTS
SURROUND BACK INPUT MODE DIG AUTO DIGITAL
wall
3

CAUTIONS ON HANDLING

• Switching the input function when input jacks
are not connected
A clicking noise may be produced if the input
function is switched when nothing is connected to
the input jacks. If this happens, either turn down the
MASTER VOLUME control or connect components
to the input jacks.
• Muting of PRE OUT jacks, HEADPHONE jack and
SPEAKER terminals
The PRE OUT jacks, HEADPHONE jack and SPEAKER
terminals include a muting circuit. Because of this,
the output signals are greatly reduced for several
ENGLISH
• Store this instructions in a safe place.
After reading, store this instructions along with the
warranty in a safe place.
• Note that the illustrations in this instructions
may differ from the actual set for explanation
purposes.
10 cm or more
seconds after the power switch is turned on or input
function, surround mode or any other-set-up is
changed. If the volume is turned up during this time,
the output will be very high after the muting circuit
stops functioning. Always wait until the muting
circuit turns off before adjusting the volume.
• Whenever the power switch is in the STANDBY
state, the apparatus is still connected on AC line
voltage.
Please be sure to unplug the cord when you
leave home for, say, a vacation.
wall
