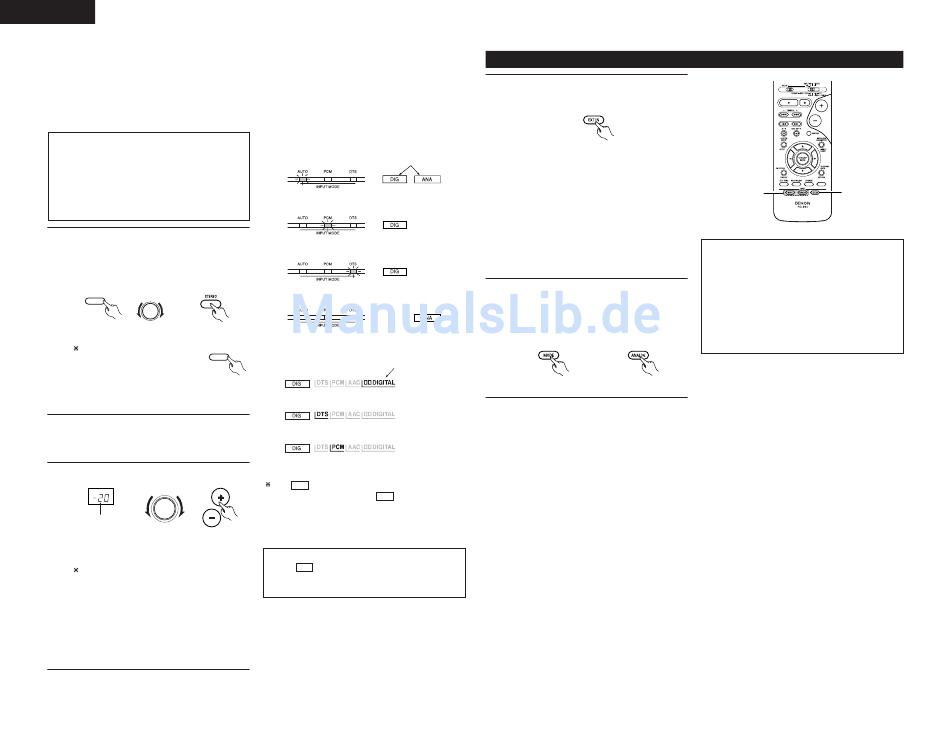

ENGLISH
NOTE:
• Note that noise will be output when CDs or LDs
recorded in DTS format are played in the "PCM"
(exclusive PCM signal playback) or "ANALOG"
(exclusive PCM signal playback) mode. Select the
AUTO or DTS mode when playing signals recorded
in DTS.
Notes on playing a source encoded with DTS
• Noise may be generated at the beginning of
playback and while searching during DTS
playback in the AUTO mode. If so, play in the
DTS mode.
• In some rare cases the noise may be generated
when you preform the operation to stop
playback of a DTS-CD or DTS-LD.
3
Select the play mode.
Press the SURROUND MODE button, then turn
the SELECT knob.
Example: Stereo
FUNCTION / SELECT
SURROUND MODE
(Main unit) (Remote control unit)
To select the surround mode
while adjusting the surround
SURROUND MODE
parameters, tone defeat or
tone control, press the
surround mode button then
operate the selector.
4
Start playback on the selected component.
• For operating instructions, refer to the
component's manual.
5
Adjust the volume.
MASTER VOLUME
The volume level
is displayed on
the master (Main unit)
(Remote control
volume level
unit)
display.
The volume can be adjusted within the
range of –70 to 0 to 18 dB, in steps of 1 dB.
However, when the channel level is set as
described on page 23, if the volume for any
channel is set at +1 dB or greater, the
volume cannot be adjusted up to 18 dB. (In
this case the maximum volume is adjusted
to "18 dB — (Maximum value of channel
level)".)
20
Input mode when playing DTS sources
• Noise will be output if DTS-compatible CDs or LDs
are played in the "ANALOG" or "PCM" mode.
When playing DTS-compatible sources, be sure to
connect the source component to the digital input
jacks (OPTICAL/COAXIAL) and set the input mode to
"DTS".
Input mode display
One of these lights,
depending on the input
• In the AUTO mode
signal.
• In the DIGITAL PCM mode
• In the DIGITAL DTS mode
• In the ANALOG mode
One of these lights,
Input signal display
depending on the input
• DOLBY DIGITAL signal.
(Main unit)
• DTS
• PCM
The indicator lights when digital signals are
DIG
being input properly. If the
DIG
light, check whether the digital input component
setup (page 14) and connections are correct and
whether the component's power is turned on.
NOTE:
• The indicator will light when playing CD-
DIG
ROMs containing data other than audio signals,
but no sound will be heard.
Playback using the external input (EXT. IN) jacks
1
Set the external input (EXT. IN) mode.
Press the EXT. IN to switch the external input.
(Remote control unit)
Once this is selected, the input signals
connected to the FL (front left), FR (front right),
C (center), SL (surround left), and SR (surround
right) channels of the EXT. IN jacks are output
directly to the front (left and right), center,
surround (left and right) speaker systems
without passing through the surround circuitry.
In addition, the signal input to the SW
(subwoofer) jack is output to the PRE OUT
SUBWOOFER jack.
2
Cancelling the external input mode
To cancel the external input (EXT. IN) setting,
press the INPUT MODE (AUTO, PCM, DTS) or
ANALOG button to switch to the desired input
mode. (See page 19.)
(Remote control unit)
• When the input mode is set to the external input
(EXT. IN), the play mode (DIRECT, STEREO,
DOLBY/DTS SURROUND, 5CH/6CH STEREO,
VIRTUAL SURROUND (DOLBY VIRTUAL SPEAKER)
or DSP SIMULATION) cannot be selected.
indicator does not
2 1
NOTES:
• In play modes other than the external input
mode, the signals connected to C, SL, SR and
SW jacks cannot be played. In addition, signals
cannot be output from channels not connected
to the input jacks.
• The external input mode can be set for any input
source. To watch video while listening to sound,
select the input source to which the video signal
is connected, then set this mode.
