12

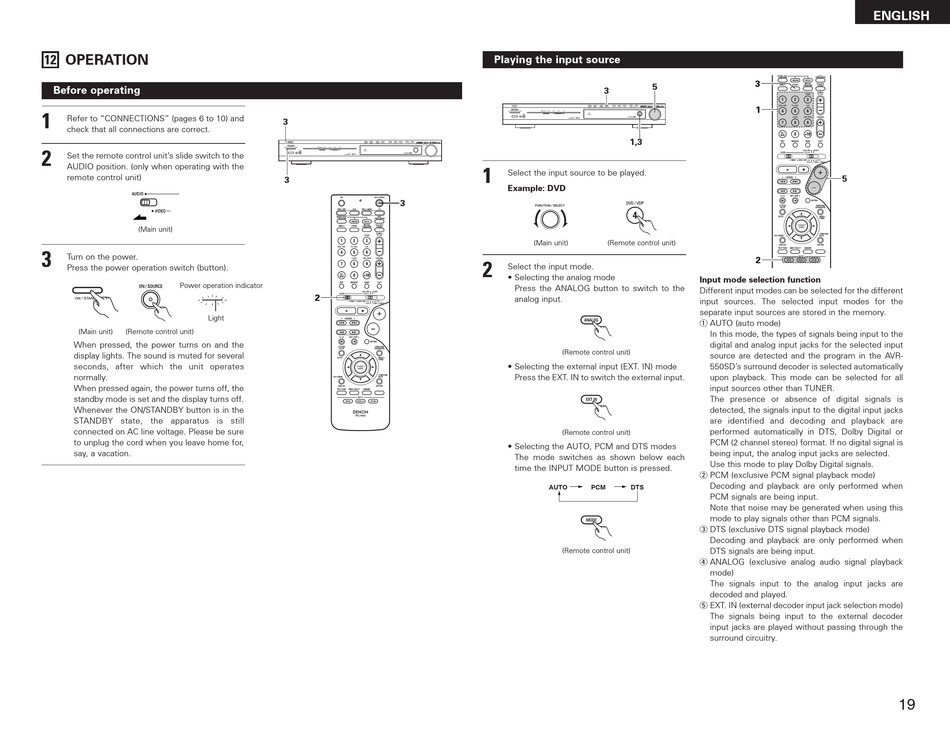

OPERATION

Before operating

1
Refer to "CONNECTIONS" (pages 6 to 10) and
check that all connections are correct.
2
Set the remote control unit's slide switch to the
AUDIO position. (only when operating with the
remote control unit)
(Main unit)
3
Turn on the power.
Press the power operation switch (button).
Power operation indicator
Light
(Main unit) (Remote control unit)
When pressed, the power turns on and the
display lights. The sound is muted for several
seconds, after which the unit operates
normally.
When pressed again, the power turns off, the
standby mode is set and the display turns off.
Whenever the ON/STANDBY button is in the
STANDBY state, the apparatus is still
connected on AC line voltage. Please be sure
to unplug the cord when you leave home for,
say, a vacation.
3
3
3
2

Playing the input source

5
3
1,3
1
Select the input source to be played.
Example: DVD
FUNCTION / SELECT
(Main unit) (Remote control unit)
2
Select the input mode.
• Selecting the analog mode
Press the ANALOG button to switch to the
analog input.
(Remote control unit)
• Selecting the external input (EXT. IN) mode
Press the EXT. IN to switch the external input.
(Remote control unit)
• Selecting the AUTO, PCM and DTS modes
The mode switches as shown below each
time the INPUT MODE button is pressed.
AUTO PCM DTS
(Remote control unit)
ENGLISH
3
1
5
2
Input mode selection function
Different input modes can be selected for the different
input sources. The selected input modes for the
separate input sources are stored in the memory.
q
AUTO (auto mode)
In this mode, the types of signals being input to the
digital and analog input jacks for the selected input
source are detected and the program in the AVR-
550SD's surround decoder is selected automatically
upon playback. This mode can be selected for all
input sources other than TUNER.
The presence or absence of digital signals is
detected, the signals input to the digital input jacks
are identified and decoding and playback are
performed automatically in DTS, Dolby Digital or
PCM (2 channel stereo) format. If no digital signal is
being input, the analog input jacks are selected.
Use this mode to play Dolby Digital signals.
w
PCM (exclusive PCM signal playback mode)
Decoding and playback are only performed when
PCM signals are being input.
Note that noise may be generated when using this
mode to play signals other than PCM signals.
e DTS (exclusive DTS signal playback mode)
Decoding and playback are only performed when
DTS signals are being input.
r
ANALOG (exclusive analog audio signal playback
mode)
The signals input to the analog input jacks are
decoded and played.
t
EXT. IN (external decoder input jack selection mode)
The signals being input to the external decoder
input jacks are played without passing through the
surround circuitry.
19
